USB RS232 PDF417 Fixed Mount Barcode Scanner For Kiosk

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE/ROHS/FCC
Model Number: LV3000H
Minimum Order Quantity: 1
Price: USD+75-99$+1pcs
Packaging Details: Paper Carton package
Payment Terms: T/T, Paypal, Credit card
Supply Ability: 1000+pcs+per week
Interface: USB/RS232 Resolution: 3mil
Illumiation: White LED Dimension: 41.5*49.5*24.3mm
Power Consumption: 1622mw Weight: 75g
Application: Self-sevice Cabinets/Kiosk Symbologies: 2D Barcode/QR/PDF417/Data Matrix
High Light:

PDF417 Barcode Scanner


PDF417 Fixed Mount Barcode Scanner


PDF417 Kiosk Barcode Scanner

USB RS232 PDF417 Fixed Mount Barcode Scanner For Kiosk


Fixed mount barcode scanner Passport OCR/MRZ reader USB/RS232 port for kiosk


LV3000H barcode scanner description:

        Rakinda hot fixed mount scanner LV3000H, support USB/RS232 port, can fast scan 1d/QR,

passport OCR MRZ, IP rated is IP54, suitable for kiosk or ATM machine, and you can also fix it on

the conveyor belt to scan moving barcode.


LV300H Passport OCR reader main features:
1: IR/Light Triggers: The combination of IR sensor and light sensor exhibits an improved sensitivity

in activating the scanner to scan barcodes as they are presented to achieve higher throughput and productivity.


2: Automatic Exposure Control(AEC): The sensors in the LV3000H automatically adjust the brightness

of supplementary lighting based on the light reflected off barcode.


3: Highly visible Laser Aimer: The LV3000H provides a laser-generated corsshair aiming patternthat

is clear and bright even in bright sunlight, ensuring first time accurate aim.


4:IP54-sealed Housing: The LV3000H is environmentally sealed to an IP54 rating to prevent dust,

mositure and other contaminant from entering it.


LV3000H Scanner  Application scenarios:

Self-service cabinets used in e-commerce, express delivery services and smart homes;

ticket validators; kiosks; barrier gates; O2O applications.


Compatible OS: Android, Windows, Linux



Performance Image Sensor   1280*800 CMOS
Illumination   White LED
Aiming   Laser diode or green LED
Symbologies 2D PDF417, Data Matrix, QR code, AZTEC, Micro PDF417, Micro QR, OCR/MRZ
1D Code128, EAN-13, EAN-8, Code39,UPC-A, Interleaved 2 of 5
Resolution   ≥3mil
Mechanical/Electrical Interface   USB, RS232 with power adaptor
Rated Power Consumption   1622mW (typical)
Operating Voltage   5VDC±5%
Dimensions   41.5(W)*49.5(D)*24.3(H)mm
Weight   75g

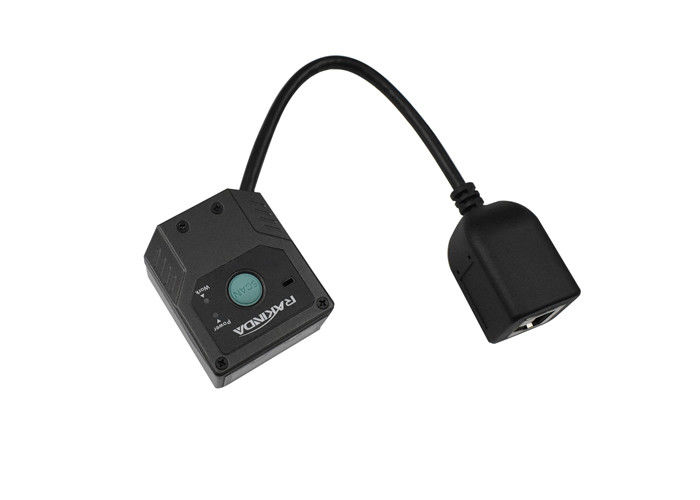

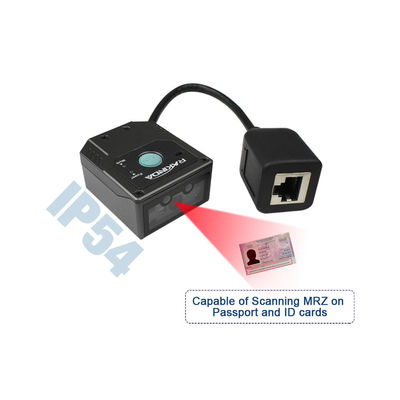

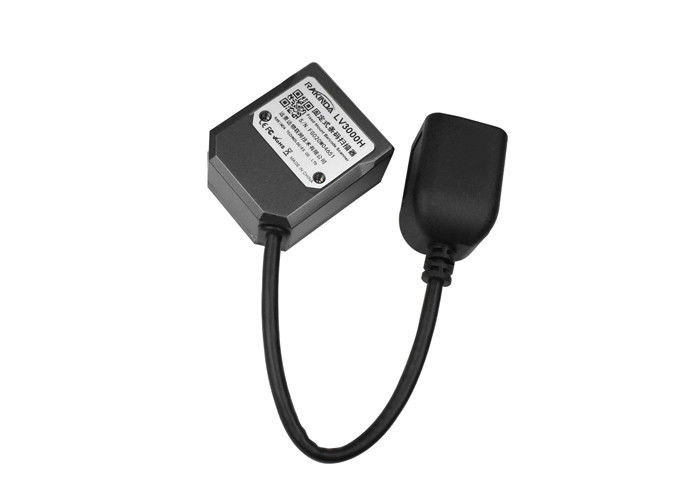

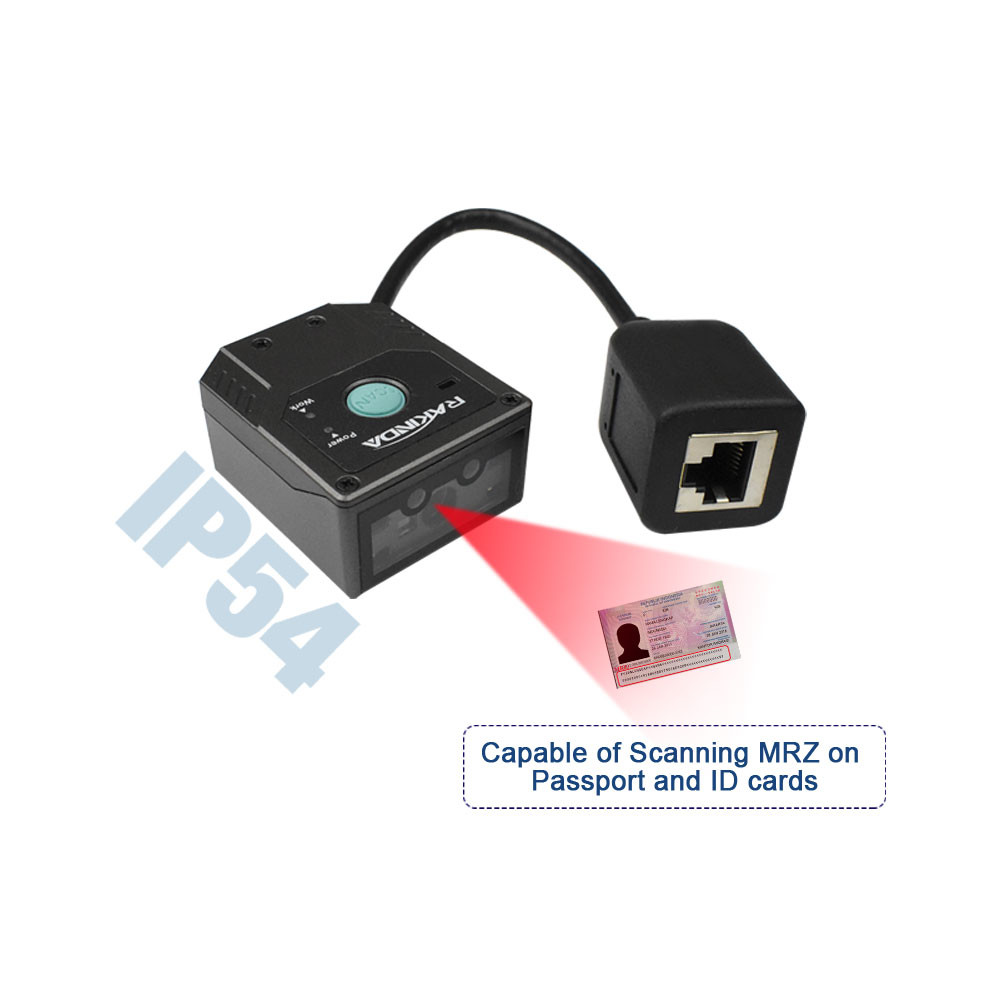

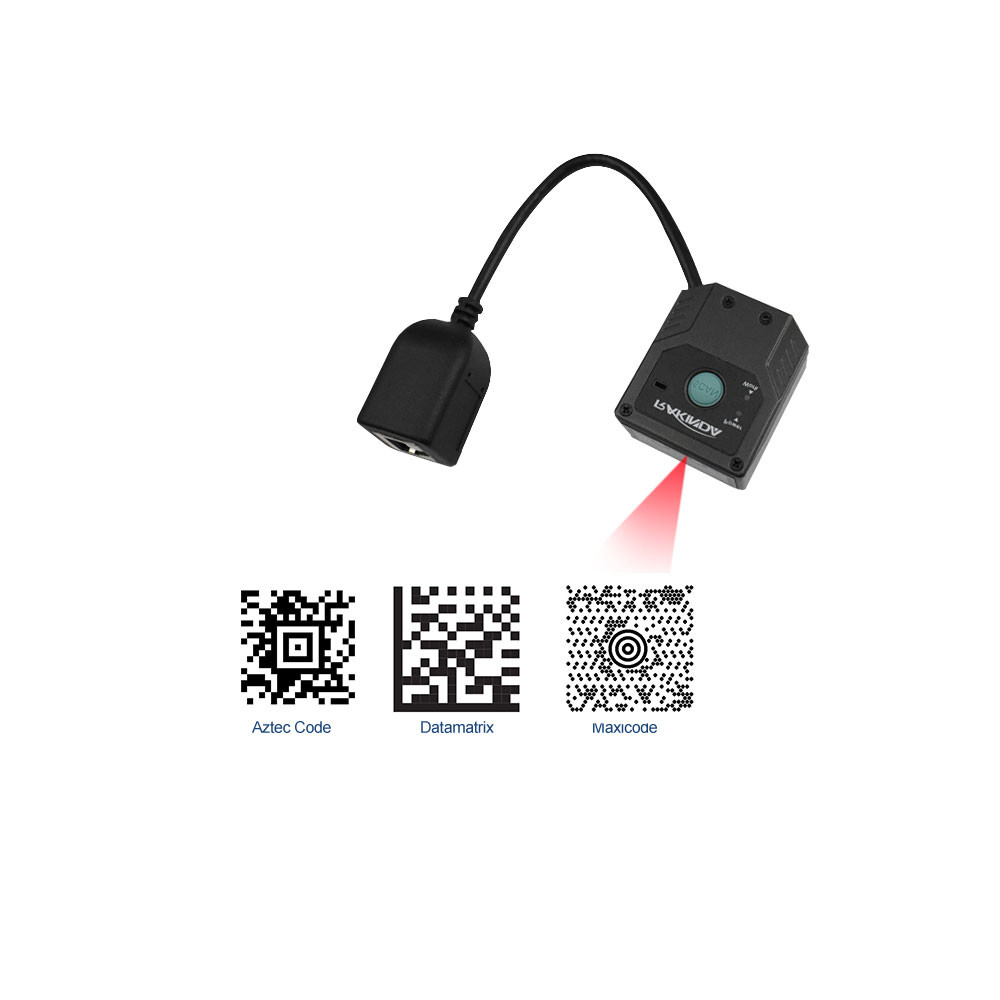

USB RS232 PDF417 Fixed Mount Barcode Scanner For Kiosk 0

USB RS232 PDF417 Fixed Mount Barcode Scanner For Kiosk 1

USB RS232 PDF417 Fixed Mount Barcode Scanner For Kiosk 2


Company Advantages:

Our company is specialized in barcode scanner for 20 years since 2000, we have professional research

developement team, has our own factory, support OEM design. We have many customers from different

countries already. And we are Gold supplier in the Alibaba. Our product is certificated by CE,ROHS and FCC.




Q1: Can I get some samples? Are they free?
A1: We support 1-2pcs sample order. Samples should be paid.


Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us directly

according to the contact info. We will send you proper link directly.


Q3: What is your payment method?
A3: We accept Alibaba online orders by Credit card, PayPal ,T /T


Q4: How long is your warranty time?
A4: Our officially promised warranty time is 1 year after delivery.


Q5: Where can we download the user manual of the scanners?
A5: We will send by email after you get samples.


Q6: What's the lead time?
A6: For sample, it is typically within 5-7days by DHL. For bulk order, it depends on quantity and model you order.


Q7: Can you provide OEM service?
A7: Yes. We need further discuss about details.


Q8: If I come across any problem during product using, where I can get the support ?
A8: We support you technically 24h/7.please send all your questions to us. and we will give the professional,patient,

expliantion by email or call in time.


Q9: How do you ship the scanners usually?
A9: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail. We also can ship the goods by your shipping account or other express agent you provided.
