3mil CMOS Image 2D PDF417 OCR Fixed Mount Barcode Scanner

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE, FCC, RoHS
Model Number: LV3000H
Minimum Order Quantity: 1 pc
Price: US$99/unit
Packaging Details: carton package
Delivery Time: about 3 work days
Payment Terms: Western Union, T/T, paypal, Credit Card
Supply Ability: 10000 pcs per month
Model: Fixed Mount Barcode Scanner Interface: RS232/ USB
Image Sensor: 1280 X 800CMOS Precision: 3mil
Dimensions: 41.5 Mm(L) X 49.5mm (W) X 24.3mm(H) Weight: 75g
Symbologies: 1D+2D(QR,PDF417,Datamatrix,Aztec)+Passport OCR
High Light:

OCR Fixed Mount Barcode Scanner


PDF417 Fixed Mount Barcode Scanner


PDF417 Barcode Scanner

3mil CMOS Image 2D PDF417 OCR Fixed Mount Barcode Scanner


RAKINDA LV3000H 3mil CMOS Image 2D QR Code PDF417 Aztec

Passport OCR Fixed Mount Barcode Scanner with Laser Aiming


Description of COMS Image Barcode Scanner
Rakinda LV3000H is one of our best quality but low cost 2d fixed mount barcode scanner, with fast reading and decoding speed due to the advanced core technology. It combines IR sensor and light sensor, making it easier for automatic reading once barcodes are presented in front.
The highly visible cross laser aiming makes it easy for positioning. LV3000H is capable of reading 1D as well as high volume 2D barcodes on paper, card or even the screen covered with protective film. With IP54 rated housing, it is 1.5m drop resistance, durable for long-time use.
Features of fixed mount barcode scanner
1. Industrial Enclosure, Durable Design, 1.5m drop resistance
2. RS232/USB Multi Interface
3. High reading precision with 3mil
4. Fast reading and decoding, and highly visible laser aiming
5. Good to read printed/screen 1D/2D barcodes
6. It can read Passport OCR, and Aztec 2D code.

LV3000H Technical Parameter

Product name Fixed Mount 2D Barcode Scanner
Item number LV3000H
Interface RS232/ USB
Image Sensor 1280 x 800CMOS

2D: PDF417, Data Matrix, QR Code, Aztec, CSC, Maxicode, Mircro QR, Micro PDF417, GM, Code One, etc.
Codabar, Code 128, Code 93, ITF-6, ITF-14,
Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
Matrix 2 of 5, GS1 Databar (RSS-Expand,
RSS-Limited, RSS-14), Code 39, Code 11,
MSI-Plessey, Plessey
Passport OCR

Precision 3 mil
Light Source

Cross Laser Aiming

Scan Mode Sense Mode, Continuous Mode, Level Mode,Pulse Mode
Drop 1.5m
Power Consumption 1622mW (Typical)
Weight 75g
Dimensions 41.5 mm(L) X 49.5mm (W) X 24.3mm(H)
Notification Beep, LED Indicator
Operating Temperature -20 ℃ to +60 ℃
Storage Temperature -40 ℃ to +70 ℃
Humidity 5% - 95% ( non-condensing )
Sealing IP54
Certification CE, FCC, RoHS

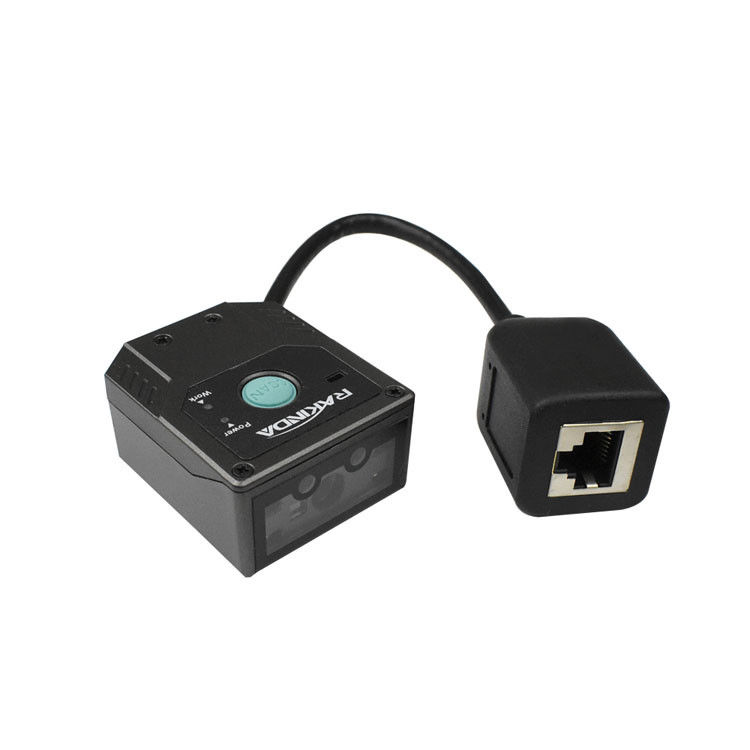

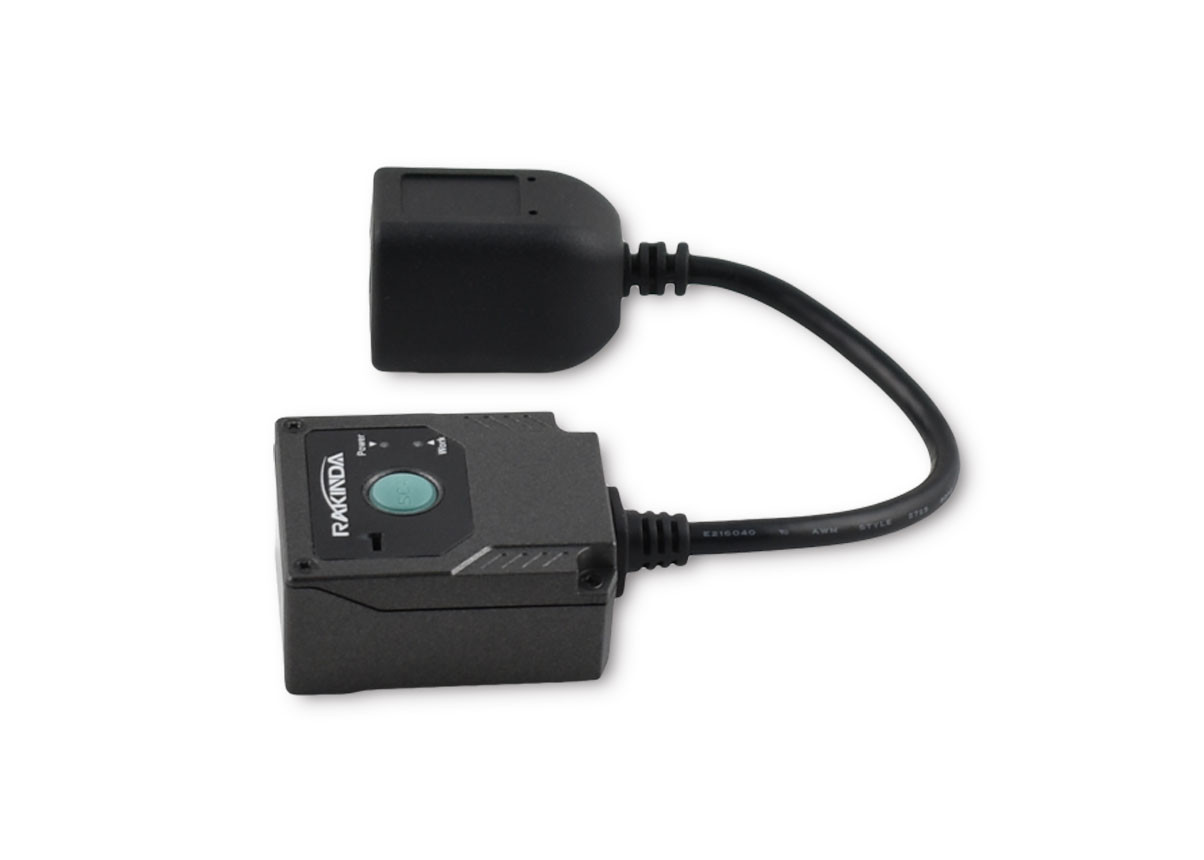

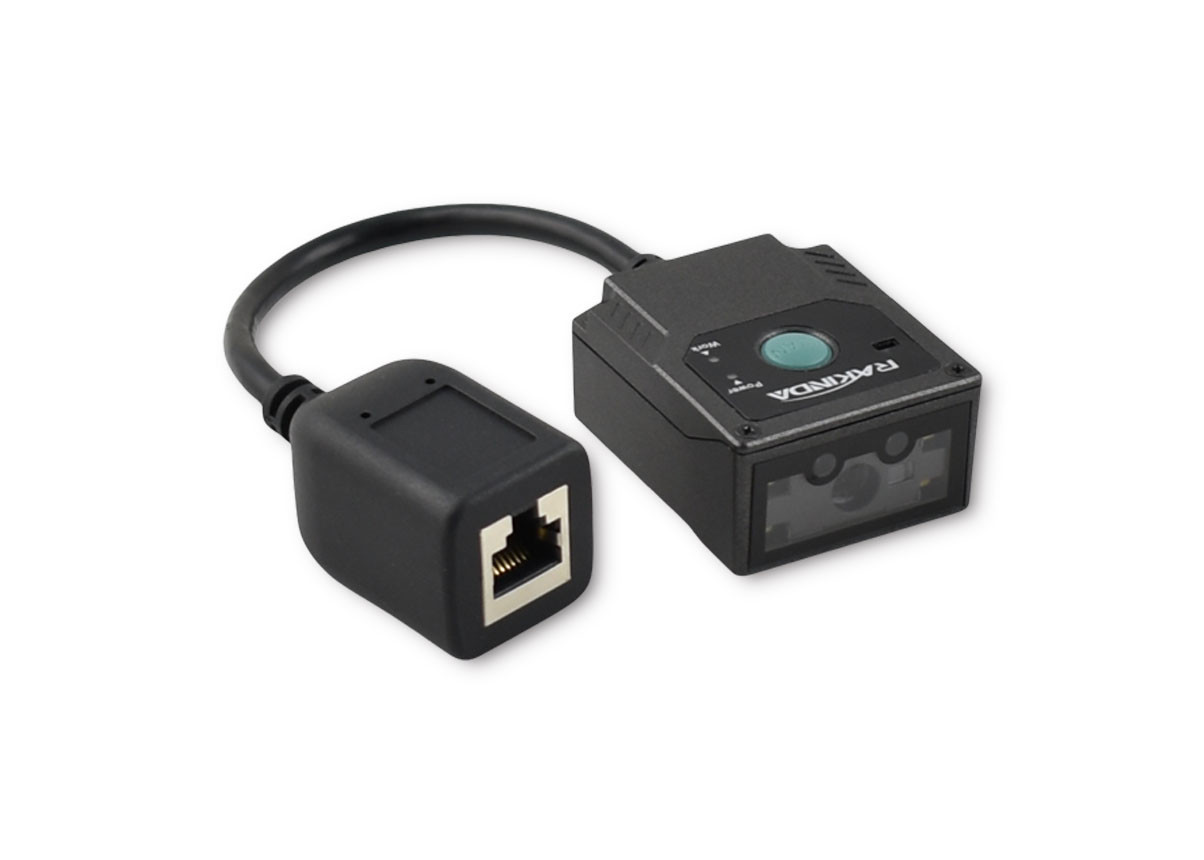

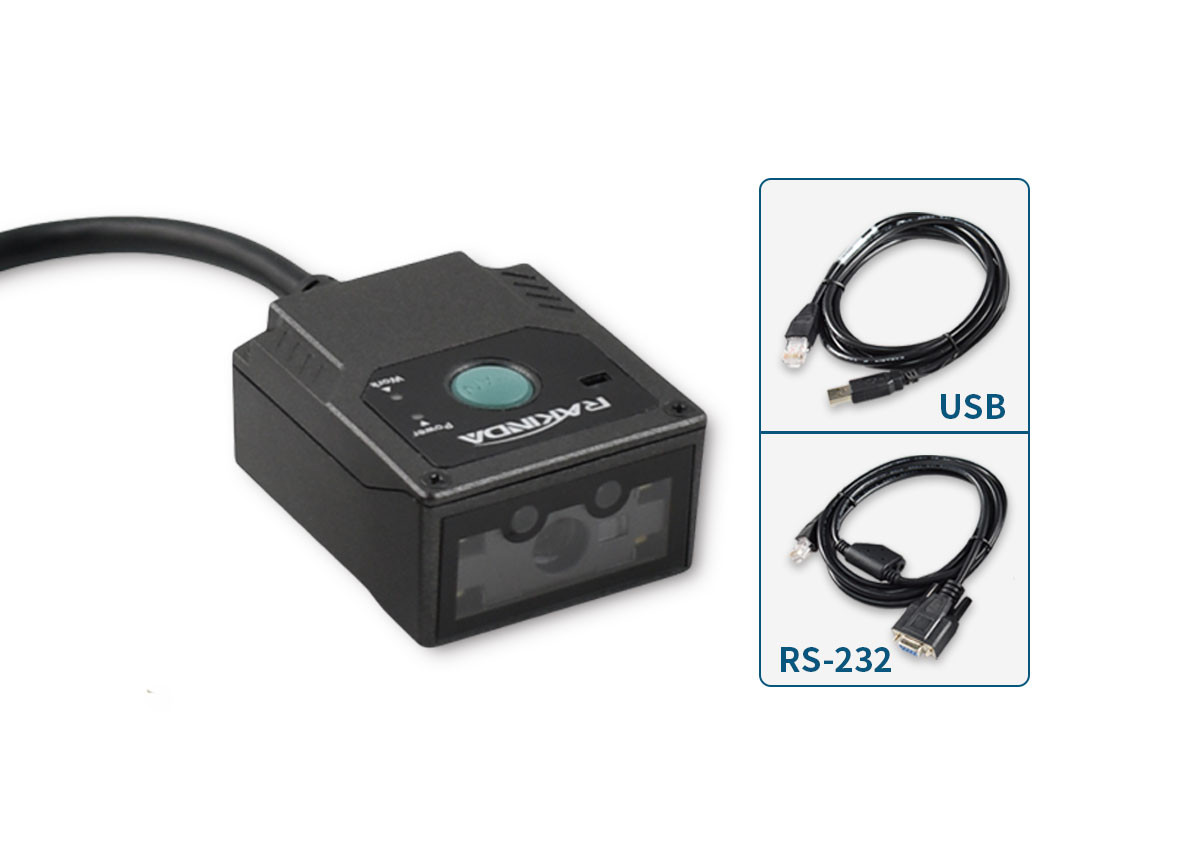

3mil CMOS Image 2D PDF417 OCR Fixed Mount Barcode Scanner 03mil CMOS Image 2D PDF417 OCR Fixed Mount Barcode Scanner 13mil CMOS Image 2D PDF417 OCR Fixed Mount Barcode Scanner 23mil CMOS Image 2D PDF417 OCR Fixed Mount Barcode Scanner 33mil CMOS Image 2D PDF417 OCR Fixed Mount Barcode Scanner 4

Applications of fixed mount barcode scanner
Embedding into self-service equipment such as payment kiosk, inquiry machine, VTM, ATM, Vending machine,express cabinets, ticket validators, etc.

Company Advantages:
1. Rakinda has been in Automatic Identification and Internet of Things since 2000
2. Several offices in Guangzhou, Shenzhen, Xiamen, Suzhou, Beijing and Chongqing.
3. We have more than 10 R&D personnels with over 15 years experience.
4. We can ship with fast express within 24 hours, and arrive customer in 3~7 days.




Q1: Can I get some samples? Are they free?
A1: We support 1-2pcs sample order. Samples should be paid.


Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us directly

according to the contact info. We will send you proper link directly.


Q3: What is your payment method?
A3: We accept Alibaba online orders by Credit card, PayPal ,T /T


Q4: How long is your warranty time?
A4: Our officially promised warranty time is 1 year after delivery.


Q5: Where can we download the user manual of the scanners?
A5: We will send by email after you get samples.


Q6: What's the lead time?
A6: For sample, it is typically within 5-7days by DHL. For bulk order, it depends on quantity and model you order.


Q7: Can you provide OEM service?
A7: Yes. We need further discuss about details.


Q8: If I come across any problem during product using, where I can get the support ?
A8: We support you technically 24h/7.please send all your questions to us. and we will give the professional,patient,

expliantion by email or call in time.


Q9: How do you ship the scanners usually?
A9: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail. We also can ship the goods by your shipping account or other express agent you provided.
