RSA AES TCP IP Weigand 26/34 Access Control QR NFC Reader

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE,FCC,ROHS
Model Number: RD006
Image Sensor: 752X480 Light Source: White LED
Symbologies: PDF417, QR CODE, DATA MATRIX, Support Reading Screen And Printed Code Reading Distance: 10-55mm
Scan Angle: 360° Full Angle Power Input: 9-18VDC
Working Current: < 600mA Barcode Or 2D Code Input: Wiegand 26/ 34 Output, Output IC Card Number (common Read Head Function) And Associated Card Number Output In Compliance With QR Code Reservation Rules
Communication Interface: RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth
Highlight:

600mA Access Control Reader

,

752X480 Access Control Reader

,

TCP IP QR Code Reader

QR Mifared NFC RFID Card TCP/IP Weigand 26/34 Reader Access Control Device

RD006 QR IC Mifare Card Reader TCP IP Weigand Output

QR+Mifare Card Reader
Wifi Bluetooth POE Function Optional
TCP IP Weigand 26/34 RS485 RS232 Interface
CE FCC ROHS Cerficate
Widely Used in Gym, office, Building...



What We Can Do?

Provide Free SDK,API ( Jave,C#,VC ...)
Provide Free Demo
Experienced Engineer Direct Help for Product Technical
OEM ODM Service Low MOQ



RD006 QR RFID Reader With RJ45 TCP IP Wiegand26/34  Access Control System Product Parameters:

2D Code Engine Component Parameters
Image Sensor 752X480
Light Source White LED
Symbologies 2D: PDF417, QR CODE, DATA MATRIX, Support reading screen and printed code
1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc.
Reading Distance 10-55mm
Scan Angle 360° Full Angle
Input and Output Parameters
Power Input 9-18VDC
Working Current < 600mA
Can read like ISO14443Aor ISO14443B card serial number Such as second-generation ID card, FM1208 CPU card, M1 card (Mifare S50, Mifare S70 IC card), SRIX4K, etc.
Barcode or 2D code input Wiegand 26/ 34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules
Communication Interface RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth
Communication Protocol Support TCP / UDP / HTTP
Voice output comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice
Device input 12V DC power input, 1 line gate input, 1 line exit button input, 1 line alarm input
Equipment output 2 way 250V/5A relay output, 1 way unlock, 1 way expansion can control door opener, light, water valve, etc.
Wiegand output Wiegand 26/34 output
Dimensions
Installation size 152mm * 85mm * 35mm (L*W*H), Compatible with standard 86 box

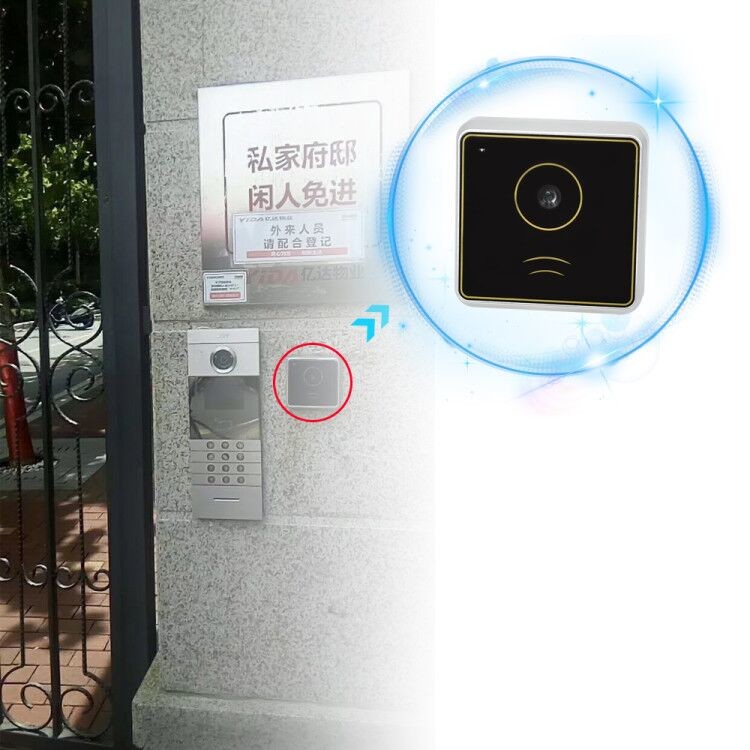

RD006 QR NFC Reader Application Scenario:

RSA AES TCP IP Weigand 26/34 Access Control QR NFC Reader 0

RD006 QR Access Control System Wiring Diagram:

RSA AES TCP IP Weigand 26/34 Access Control QR NFC Reader 1

QR RFID Reader Access Control System RD006 QR Reader Good Comments from Customer:

RSA AES TCP IP Weigand 26/34 Access Control QR NFC Reader 2

Company Profile:

Rakinda Technologies Co.,Ltd (The predecessor is Longview Tech Enterprise Co., Limited ) has been established since 2000, which has 6 branches in total, which are in Guangzhou, Shenzhen, Xiamen, Suzhou, Chengdu, Beijing and HongKong. "Rakinda" and "SCANMAX" are our two independent brands. Rakinda is also a leading worldwide Internet of Things solution provider, which is specialized in 1D/2D barcode identification technology (Embedded/Fixed Mount/Handheld/Desktop Barcode Scanner, Android PDA, Mobile POS, etc.) , radio frequency identification (UHF) technology and face recognition technology almost 20 years . We are oriented by customer demands , focus on development and innovation of intelligent systems and strive to provide most competitive IoT application solutions and services. Promoting people's lifestyle to be more intelligent is our infinite pursuit.

RSA AES TCP IP Weigand 26/34 Access Control QR NFC Reader 3

RSA AES TCP IP Weigand 26/34 Access Control QR NFC Reader 4

FAQ

Q:Which wireless barcode scanner is the best?

About the wireless barcode scanner, Rakinda RD2 with Bluetooth will be your best choice. From the appearance speaking, RD2 is a wireless mouse scanner with mini fashion design paten and it is very convenient to carry. And from the function speaking, it can read 2D barcodes on paper and electronic screen; and it can support transmission distance within 50m via Bluetooth and it can support the wireless transmission within 150m. So our RD2 is very suitable for retail, express logistics, warehouse management and so on fileds. I am sure you will be satisfied with our RD2 with good quality and best price.

Q:Why do warehouse barcode scanners cost so much?

A:This is a good question to push us explore the difference between normal handheld scanner and warehouse barcode scanner .Usually ,there have higher requests for warehouse scanning with RFID function and long distance scanning ,moreover ,scanner should support data saving with RAM and ROM ,most PDAs are very popular in this filed with 5 inch touch screen like mobile phone to support many many functions ,all of these are the reasons why warehouse scanner cost so much than normal scanner .more professional introduction can be learned by Rakinda website : : www.rakinda.com .

Q.Why would the sun light interfere with a barcode scanner?

The barcode scanner has LED light to help recognize the barcode even in dark environment. Sunlight is much brighter than the LED light, so it will weaken the effect of LED light. Also, sunlight would creat the refraction on the barcode scanner to impede decoding the barcode.

Q:How can I do data collection by scanning the barcode?

Bacode scanner has CCD and Cmos Tecnology for decoding. There is algorithm for decoding barcode. When barcode scanner scan barcode. The scanner is operating and calculating thousands of times per second. Then decoding and store data in any doc that can be editted.
