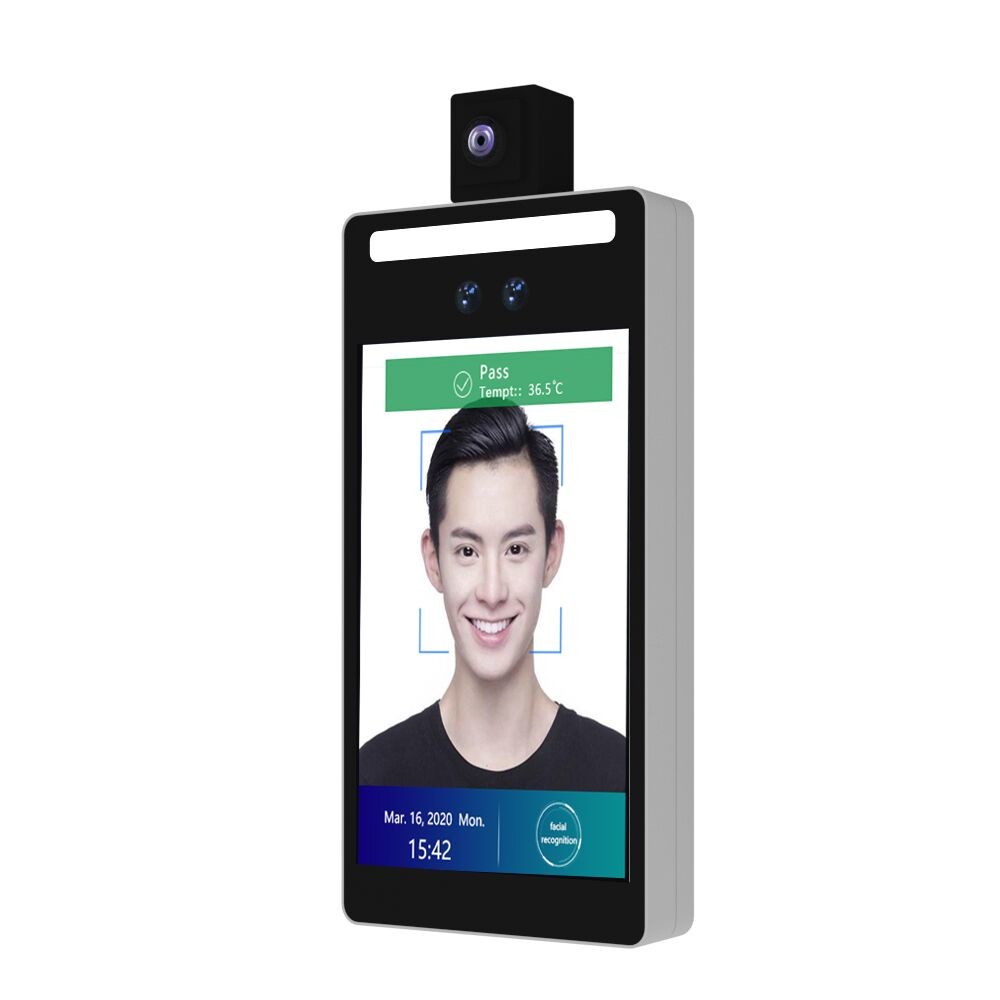

F2-H Facial Android 7.1 Face Mask Recognition Thermometer

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE,FCC, ROHS
Model Number: F2-H
Minimum Order Quantity: 1PCS
Supply Ability: 1000+PCS
Main Function: Face Recognition Temperature Measurement Type: RGB Infrared
Resolution: 2million Aperture: F2.8
Focal Length: 3.18mm Software Dynamic: Automatic
Vertical Wide Angle: 84 Horizontal Wide Angle: 54
Android: Android7.1
High Light:

Android 7.1 Face Recognition Thermometer

,

3.18mm Focal Face Recognition Thermometer

,

F2.8 Face Recognition Attendance System

F2-H Facial Android 7.1 Face Mask Recognition Thermometer

As a result of this epidemic, many regions have strengthened the management of closed (semi-closed) places, clarifying the promotion . This means that entering certain closed or semi-closed places (such as libraries, museums, hotels, theaters, conventions and exhibitions, wholesale markets and other key places, schools, senior care institutions, medical institutions, government service halls and other key institutions) must Entrance by face recognition with temperature measurement is fully implemented,
F2-H Face Identification System Product Specification

Face Recognition Temperature Measure all-in-one Machine
Product model F2-H



Characteristics

Main function Face recognition temperature measurement
Use environmen Indoor , semi-outdoor
Color Silver

















Camera

Type RGB Infrared
Resolution 2 million pixels 2 million pixels
Aperture F2.8 F2.8
Focal length 3.18mm 3.18mm

Software

Dynamic



automatic



automatic

Vertical wide

angle



84°



84°

Horizontal wide

angle



54°



54°

Infrared

supplement light

Support

White

supplement light

Support



Core parameters

Android Android7.1
CPU Quad-core, 1.8GHz
storage capacity RAM 2G ROM 8G











Human-comput er interaction



Monitor

8 inches, full viewing angle, 170 ° IPS LCD screen, resolution

800 * 1280

Touch screen support

Face sensing

module

support

Face temperature measurement

module



support,Serial / I2C interface

Card reader Support, Optional

Communication

method

Ethernet 10/100 Ethernet
WIFI Comply with IEEE802.11b / g / n standard (2.4G)



Identification Method

Face Support
IC card Support, optional



Input output interface

RJ45 interface Support 10/100 Mbps

Power supply

interface



DC12V-2A

Power Adapter DC12V-2A





Environmental requirements

Operating

temperature

-20℃~60℃

Working

humidity



20%~90% (non-condensing)

Static protection

level



IEC61000-4-2, LEVEL3

External Interface Definition
Type Interface Explanation
USB USB 2.0 Support
Ethernet port RJ45 10/100 Ethernet





Relay



NC COM NO

Relay normal off/Common/normal on.Usually,door lock supply is positively connected to the COM port,and then according to the door lock type,relay power negatively connected NO port or NC

port. Note: Maximum load of relay contact is 2A



Gate sensor

IN

GND



Check door open/close status, input

Exit

button

PUSH1

GND



Press the button,door opening control signal,input



Serial

RX

TX



RS232



Output power

5V

GND



Support device external output 5V



Wiegand

WG_D1 WG_D0

GND



Wiegand output interface, support 26bit / 34bit protocol



Input power

GND

12V+

Power input:12V DC











Temperature measurement module

Operating temperature



0℃ ~ +55℃

Storage temperature



-20℃ ~ +65℃

Power consumption



< 0.3w









Basic Parameters



Pixel



32*32 Real-time temperature output

Measurement accuracy



I + 0.5℃

Measuring distance



0.3 ~ 1.0m



WIFI



2.4G 802.11b/g/n



Bluetooth

4.0

F2-H Facial Android 7.1 Face Mask Recognition Thermometer 0F2-H Facial Android 7.1 Face Mask Recognition Thermometer 1

F2-H Facial Recognition with Temperature Measurement Application scenarios:

Office buildings/residential areas, schools/educational institutions, medical institutions/elderly care institutions, libraries/museums, hotels/wholesale markets, stations/ports, banks, building property service centers, government service halls, etc. Closed or semi-closed place.

F2-H Facial Android 7.1 Face Mask Recognition Thermometer 2

Company Profile:

Shenzhen RAKINDA (SCANMAX) as a provider of precise epidemic prevention solutions, became the technical supporter for this time, adding “code” to the epidemic prevention and control. It is worth noting that Fujian has become a national digital identity application-the National Epidemic Prevention and Health Information Code, and as the country's first network trusted identity application demonstration city.

F2-H Facial Android 7.1 Face Mask Recognition Thermometer 3

FAQ
Q: Can I get some samples? Are they free?
A: We support 1pc sample order. Samples should be paid.
Q: Can I get extra cables for the scanners?
A: Yes you can. We will provide according to your request.
Q: How can I buy?
A: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q: What is your payment method?
A: We accept online credit card, TT, Paypal, Western Union.
Q: Can I visit your factory:
A: Yes, you are warmly welcome.
Q: How long is your warranty time:
A: 1 Year.
Q: Where can we download the user manual of the scanners?
A: We will send by email after you get samples.
Q: What's the lead time?
A: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q: Can you provide OEM service?
A: Yes. We need further discuss about details.
Q: How do you ship the scanners usually?
A: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
