| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE, RoHS |
| Model Number: | R2 |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotiation |
| Packaging Details: | Normal craft paper and foam |
| Delivery Time: | Within 5 working days after receiving the balance |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 200PCS/Week |
| Image Sensor: | 2368 × 1760 CMOS | Max. Frame Rate: | 30 Fps |
|---|---|---|---|
| Max. Reading Speed: | 60 Codes/sec | Sensor Type: | CMOS ，global Shutter 3.2 µm × 3.2 µm |
| Pixel Size: | 3.2 µm × 3.2 µm | Resolution: | 1D 3mil; 2D 5mil |
| Highlight: | 200mW Temperature Detection Camera,256×192 Temperature Detection Camera,SPI Infrared Thermal Imaging Camera |
||

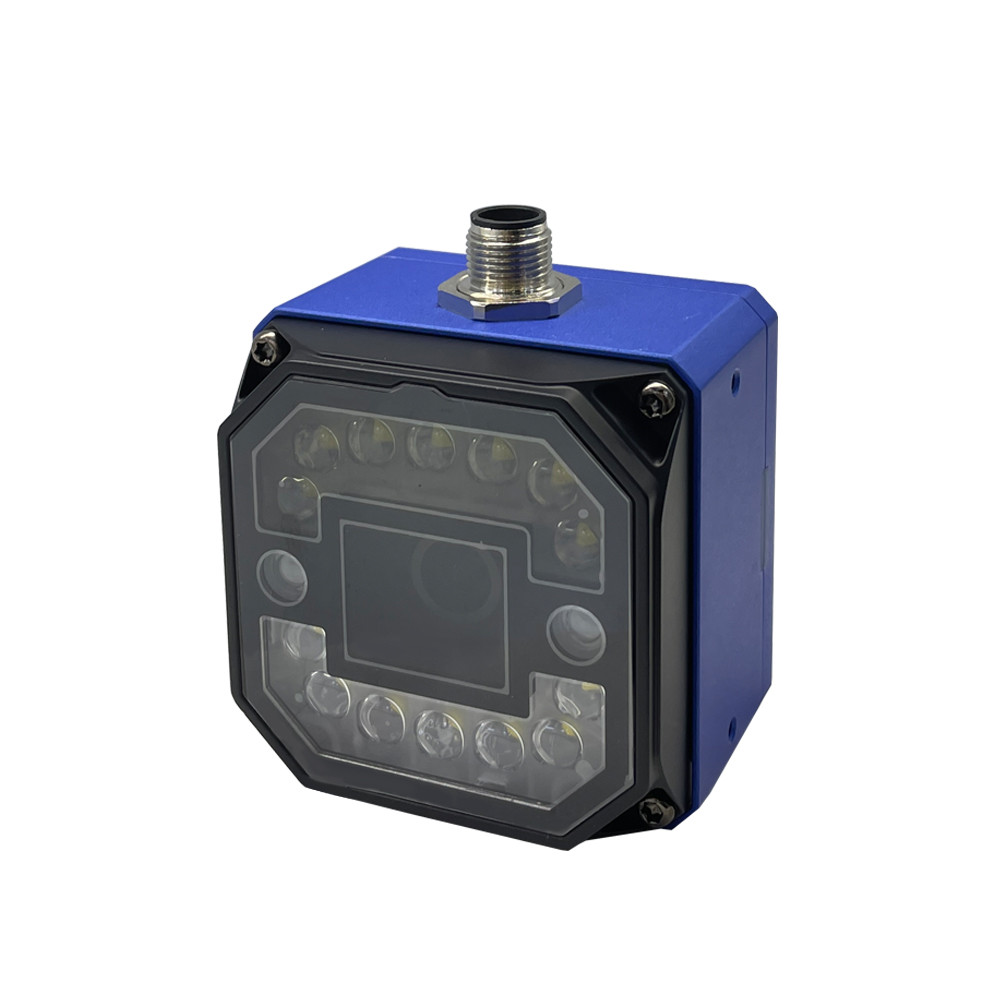

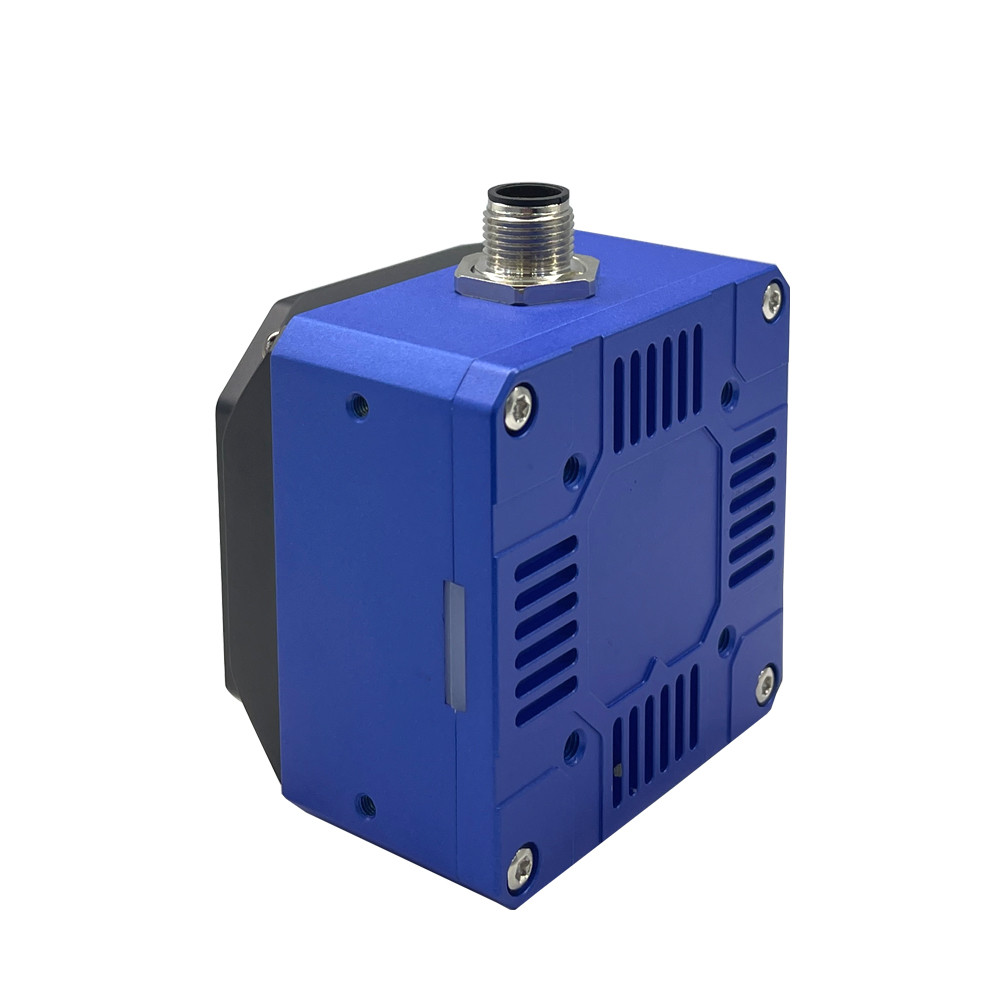

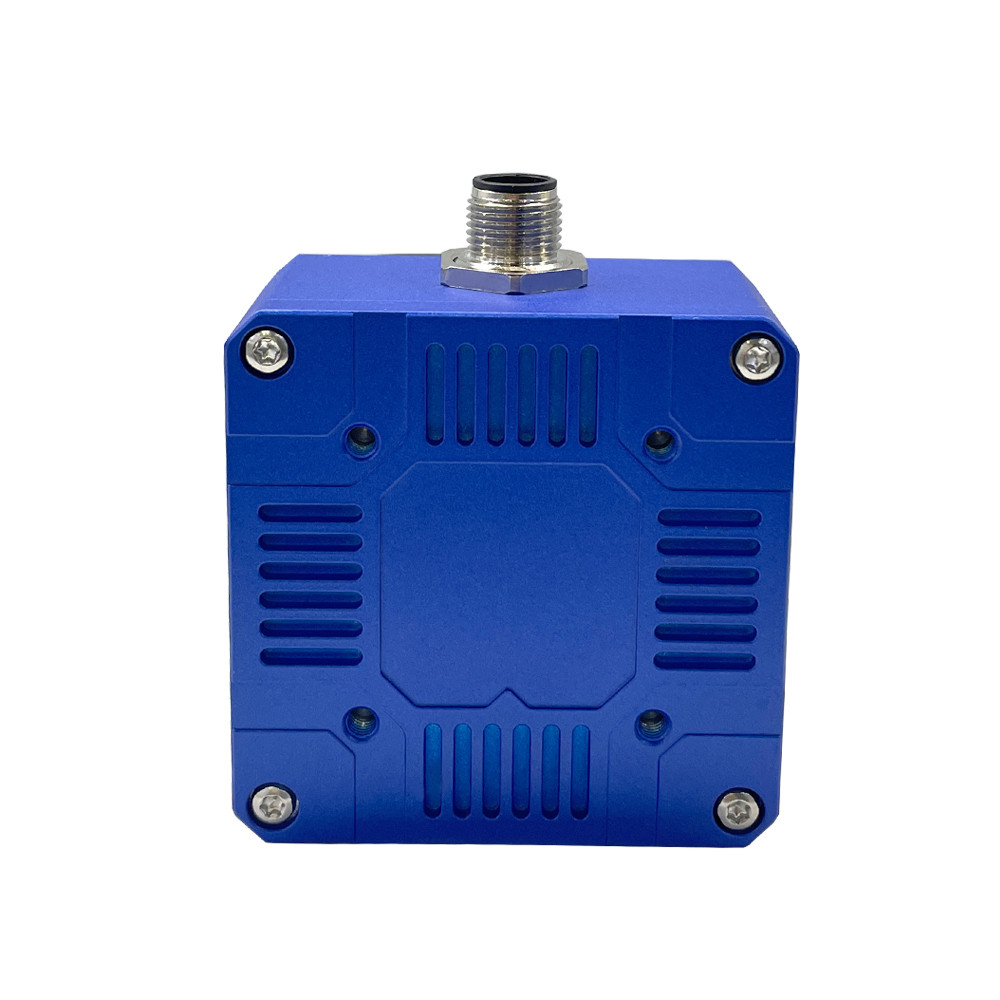

| Model | R2 Series |
| Image Sensor | 2368 × 1760 CMOS |
| Performance Characteristics | |
| Decode Capabilities |
1D:Code 39, Code 93, Code 128, Code Bar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 and Industrial 25 2D :QR Code, Data Matrix, PDF 417 |
| Max. Frame Rate | 30 fps |
| Max. Reading Speed | 60 codes/sec |
| Sensor Type | CMOS ,global shutter 3.2 µm × 3.2 µm |
| Pixel Size | 3.2 µm × 3.2 µm |
| Sensor Size | 1/ 1.7” |
| Exposure Time | 16 μs ~ 1 sec |
| Gain | 0 ~ 18 dB |
| Resolution | 1D 3mil; 2D 5mil |
| Communication Protocol | Smart SDK,TCP Client ,Serial, FTP ,TCP Server, Profinet, MELSEC, Ethernet/ IP, ModBus, Fins ,SLMP |
| Electrical Feature | |
| Interface | 17-pin M12 connector provides power and I/O, including non-isolated input (Line ln 0/1/2) x 3, non-isolated output (Line Out 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported. |
| Data Interface | Fast Ethernet( 100 Mbit/s) |
| Digital l/O | Including non-isolated input (Line ln 0/1/2) x 3, non-isolated output (Line Out 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported. |
| Power Supply | 12 ~ 24 VDC |
| Max.Power Consumption | 48W@24 VDC( (light source enabled)) |
| User Environment | |
| Typical Depth of Field | 08mm:51*39; 12mm: 34*26; 16mm: 27*20 |
| Lens Interface | M12-mount ,Manual focus |
| Fill Light | 6 independent control channels, totaling 14 white lights, half with polarizing lens cover |
| Light Source | Spotlight white light, available for purchase with spotlight red/blue light, wide-angle white/blue light |
| Indicator Light | Power indicator(PWR),network indicator (LNK),status indicator(STS),result indicator (OK/NG) |
| Dimension | 65.2 mm×65.2mm×47.2mm |
| Weight | Approx. 280 g (0.6 lb.) |
| Seal | IP67 |
| Operating Temp. | 0℃~+50℃ |
| Storage Temp. | -30℃~+70℃ |
| Humidity | 20% to 95% RH,non-condensing |
| Regulatory | CE,FCC.RoHS |
