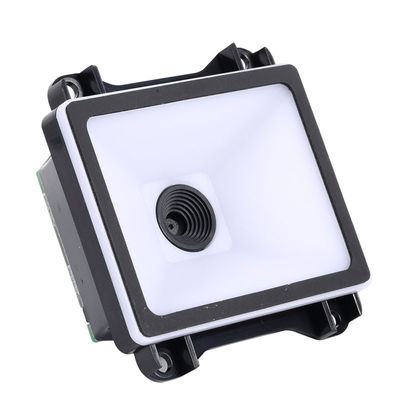

640*480 CMOS 335mA RS-232 Fixed Mount Barcode Scanner

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAKINDA
Certification: CE, FCC, RoHS
Model Number: RD4300
Minimum Order Quantity: 1 pcs
Price: 75
Packaging Details: Normal craft paper and foam
Delivery Time: Within 2 working days after receiving the balance
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 1000 PCS/ week
Interface: TTL-232, RS-232, USB Dimensions: 61.5(W)×65.5(D)×31.9(H)mm (max.)
Weight: 33g Operating Temperature: -40℃~+60℃
Resolution: ≥5mil Light Source: White LED
High Light:

335mA Fixed Mount Barcode Scanner

,

RS-232 Fixed Mount Barcode Scanner

,

640*480 CMOS QR Code Scanner

Rakinda RD4300 Fixed Mount Mobile Screen QR Code Scanner Module Kiosk Barcode Reader with TTL232 USB



QR Code Scanner Module Product Features:

1. Snappy On-screen Barcode Capture

Featuring excellent near-field reading, wide-viewing angle and snappy reading, the CPU-powered

is incredibly reader-friendly on smartphone & tablet displays.

2. Slimmer, More Compact Construction

Compared with its predecessor, the new generation of RD4300 qr code scanning module is thinner,

lighter and more compact, and thus easier to be integrated into any devices.

3. Robust Design with High Vibration Resistance

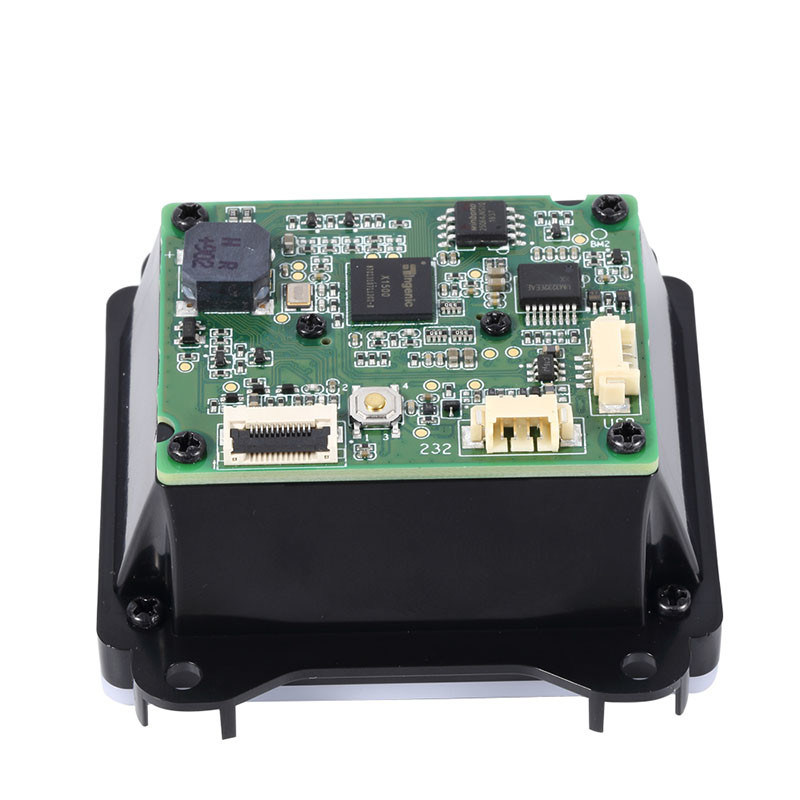

The single PCB construction and vibration-proof connectors make the qr scan engine more resistant

against vibration and help improve its reliability.

4. Outstanding Power Efficiency

The advanced technology incorporated in the 2d barcode reader module helps reduce its power

consumption and prolong its service life.

5. Multiple Interfaces

The RD4300 qr code reader module supports USB, RS-232 and TTL232



Product Parameters:

  Product Name RD4300
Performance Image Sensor 640 * 480 CMOS
Light Source White LED
Symbologies 2D PDF 417, QR Code, Micro QR, Data Matrix
1D EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6, Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K
Resolution ≥5mil
Typical Depth of Field EAN-13 25mm-110mm (13mil)
PDF 417 35mm-50mm (6.7mil)
Data Matrix 15mm-40mm (10mil)
QR Code 0mm-90mm (15mil)
Symbol Contrast 30%
Scan Angle** Roll: 360°, Pitch: ±40°, Skew: ±45°
Field of View Horizontal 68°, Vertical 51°, Diagonal 84.8°
Mechanical Interface TTL-232, RS-232, USB
Electrical Power Adapter DC5V power adapter to power the NLS-EVK with RS-232 cable.
Current 3.3VDC Operating 335mA (typical), 479mA (max.)
Idle 93mA
Dimensions 61.5(W)×65.5(D)×31.9(H)mm (max.)
Weight 33g
Environmental Operating Temperature -40℃~+60℃
Storage Temperature -40℃~+75℃
Humidity 5%~95% (non-condensing)
Ambient Light 0~100000lux (natural light)
Accessories Cable

USB Used to connect the scanner to a host device.

RS-232 Used to connect the scanner to a host device.

LV4300 Datasheet.pdf
