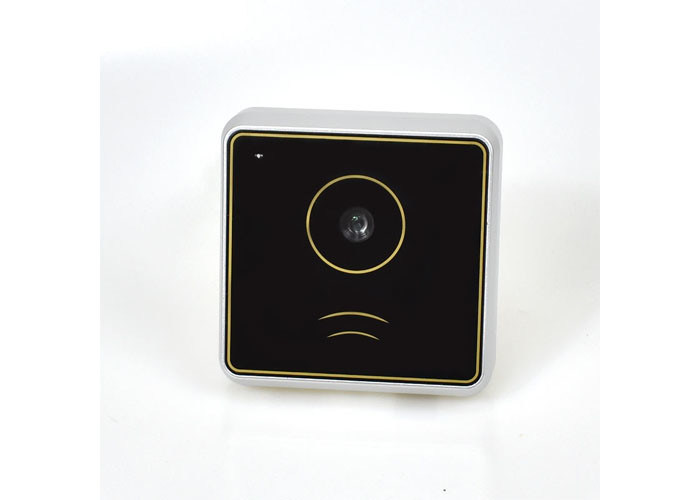

9-18VDC RJ45 600mA 752X480 Access Control Barcode Scanner

Basic Information
Place of Origin: Guangdong, China
Brand Name: Rakinda
Certification: CE, FCC, RoHS
Model Number: RD006
Minimum Order Quantity: 1
Price: 220
Packaging Details: 1pc/box
Delivery Time: 3~7 Work days
Payment Terms: T/T, Paypal, Credit Card
Supply Ability: 5000pcs/Month
Interface Type: RJ45/Wiegand Symbologies: 1D/2D
Light Source: White LED Communication: Support TCP / UDP / HTTP
Options: IC Card Reading, Wifi, Bluetooth, RS232, RS485 Wiegand Output: Wiegand 26/34 Bit
Dimension: 105mm * 105mm * 25mm (L*W*H)
High Light:

600mA Access Control Barcode Scanner

,

752X480 Access Control Barcode Scanner

,

RJ45 QR IC Card Reader

Rakinda RD006 Door Access Control Barcode Scanner QR IC Card Reader with Wiegand TCP IP HTTP



RD006 QR Code Access Control Devices.pdf


Features
1.Embedded multitasking real-time operating system, system can be fully activated with 3 seconds.
2.Single-door access control + 2d code scanner engine + the second generation ID card reader three in one card products. Make site installation and maintenance become simple with lower cost.
3.The product has Wiegand 26/ 34 output, when the product is used as a 2d code reader, which can make the traditional access control, ladder control, yard products, own the 2d code access function immediately without changing the main controller. And can access legally when it must comply with the rules of the 2d code so that the traditional access control, ladder control and yard products have a real CPU system security level at once and reduce system costs greatly.
4.The product has 2-channel relay output, in addition to 1 channel to control the
door lock, other 1 channel to control the door opener, lights, players, valves and so on.
5.The product has voice amplifier and speakers whose commonly used access incidents can be set, the network control play nearly 150 voices that can be customized.





Input and Output Parameters:
1. Power Input: 9-18VDC
2. Working Current: < 600mA
3. Support ISO14443Aor ISO14443B card

4. Barcode or 2D code input.
5. Wiegand 26/ 34 output

6. Communication Interface: RJ45 10/100M TCP/IP, Extensible Wireless WIFI,Bluetooth
7. Communication Protocol: Support TCP / UDP / HTTP
8. Device input: 12V DC power input, 1 line gate input, 1 line exit button input, 1 line alarm input
10. Equipment output: 2 way 250V/5A relay output, 1 way unlock, 1 way expansion can control door opener,

light, water valve, etc.



QR Code Access Control Devices Parameters:

2D Code Engine Component Parameters
Image Sensor 752X480
Light Source White LED
Symbologies 2D: PDF417, QR CODE, DATA MATRIX, Support reading screen and printed code
1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc.
Reading Distance 10-55mm
Scan Angle 360° Full Angle
Input and Output Parameters
Power Input 9-18VDC
Working Current < 600mA
Can read like ISO14443Aor ISO14443B card serial number Such as second-generation ID card, FM1208 CPU card, M1 card (Mifare S50, Mifare S70 IC card), SRIX4K, etc.
Barcode or 2D code input Wiegand 26/ 34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules
Communication Interface RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth
Communication Protocol Support TCP / UDP / HTTP
Voice output comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice
Device input 12V DC power input, 1 line gate input, 1 line exit button input, 1 line alarm input
Equipment output 2 way 250V/5A relay output, 1 way unlock, 1 way expansion can control door opener, light, water valve, etc.
Wiegand output Wiegand 26/34 output
Dimensions
Installation size 152mm * 85mm * 35mm (L*W*H), Compatible with standard 86 box
