| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Brand Name: | RAKINDA |
| Certification: | CE, RoHS |
| Model Number: | LV30 |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Normal craft paper and foam |
| Delivery Time: | Within 5 working days after receiving the balance |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 200PCS/Week |
| Image Sensor: | 752X480 CMOS | Resolution*: | N3mil |
|---|---|---|---|
| Weight: | 4.6g | Dimensions (mm）: | 21.5(D)x15.3(VV)x11.8(H) |
| Illumination: | Red LED 625nm±10 Nm | Aiming: | Laser 650nm |
| High Light: | 752X480 Barcode Scanner Module,CMOS 650nm Barcode Scanner Module,457mW QR Code Reader Module |
||

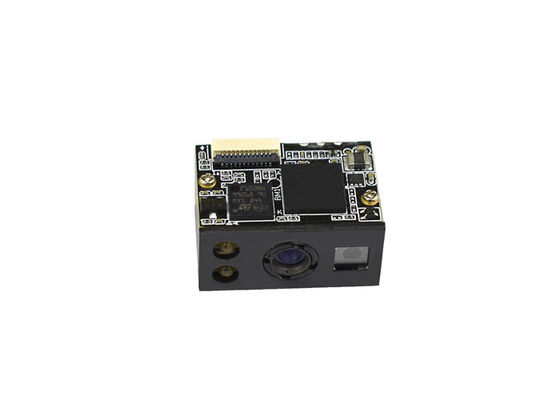

LV30 OEM Mini QR Code Reader 2D QR Code Barcode Scanner Module
QR Code Reader Features:
*Outstanding Screen Code Scan Performance
Specially improved to scan screen code, it can scan high and low brightness screen, even if the screen is covered with protective film.
* Multiple interface
USB and TTL-232 interface to meet different
* All-in-One Design
Seamless integration of image sensor and decoder board makes the scan engine small, easy to fit into various devices.
* Outstanding Power Efficiency
The advanced high technology incorporated in the scan engine helps reduce the power consumption and prolong the service life of device.
Barcode Scanner Module Product Parameters
| Performance | Image Sensor | 752X480 CMOS | |
| Illumination | Red LED 625nm±10 nm | ||
| Aiming | Laser 650nm | ||
| Symbologies | 2D |
PDF417, Data Matrix (ECC200,ECC000,050,080,100,140), QR Code, Chinese Sensible Code |
|
| 1D | Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. | ||
| Resolution* | N3mil | ||
| Typical Depth of | EAN13(13mil) | 60mm-290mm | |
| Field* | PDF417(6.7mil) | 55mm-135mm | |
| Code39 (5mil) | 55mm-165mm | ||
| Data Matrix (10mil) | 55mm-130mm | ||
| QR Code(15mil) | 45mm-175mm | ||
| Symbol Contrast* | N20% | ||
| Scan Angle** | Pitch: ±55°, Skew: ±55°, Roll: 360° | ||
| Field of View | Horizontal: 36°, Vertical: 23° | ||
| Mechanical/ | Interface | TTL-232, USB | |
| Electrical | Dimensions (mm) | 21.5(D)x15.3(VV)x11.8(H) | |
| Weight | 4.6 g | ||
| Operating Voltage | 3.3±10% VDC | ||
|
Rated Power Consumption |
457mW (typical) | ||
| Current @3.3 VDC | Operating | 138mA (typical), 214mA (max) | |
| Standby | 8.2mA | ||
| Sleep | <100uA | ||
| Environmental | Operating | -20°C~+55°C | |
| Storage | -40°C~+70°C | ||
| Humidity | 5%~95% (non-condensing) | ||
| Ambient Light | 0-100000 lux (natual light) | ||
| Certifications | FCC Parti 5 Class B, CE EMC Class B | ||
| Accessories | EVK | Software development board, equipped with a trigger button, beeper and RS-232 & USB interfaces. | |
| Cable | USB | Used to connect the EVK to a host device. | |
| RS-232 | Used to connect the EVK to a host device. | ||
| Power Adaptor |
DC5V power adaptor, used to provide power for the EVK. |
||
