Rakinda F2-TH Free SDK Android Face Recognition Terminal with Temperature Measuring for Turnstile

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAKINDA
Certification: CE,ROHS,FCC
Model Number: F2-TH
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Normal craft paper and foam
Delivery Time: Within 7 working days after receiving the balance
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 200PCS/Week
Size: 39cm X 12cm X 9cm Weight: 2.5kg
LCD Screen Display Size: 8 Inch Device Electricity: DC12V(+/-10%) 3A
Operating System: Android 7.1 Above Camera: RGB Infrared
LCD Screen Resolution: 800*1280 Camera Resolution: 2 Million Pixels
Wide Dynamic: Support
High Light:

face recognition terminals


biometric time attendance system

Rakinda F2-TH Free SDK Android Face Recognition Terminal with Temperature Measuring for Turnstile

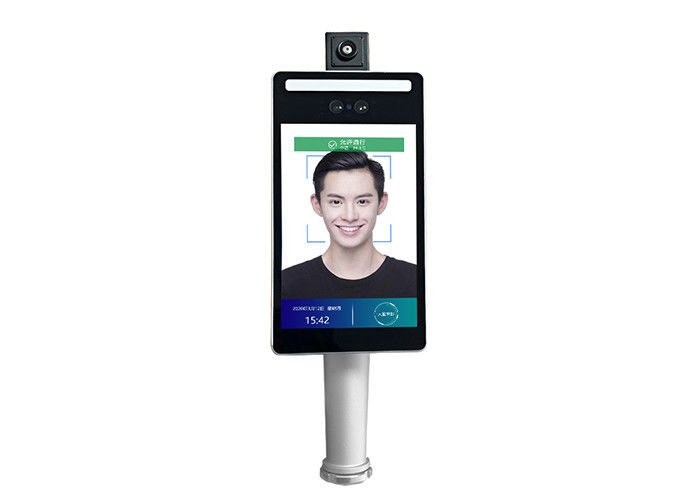

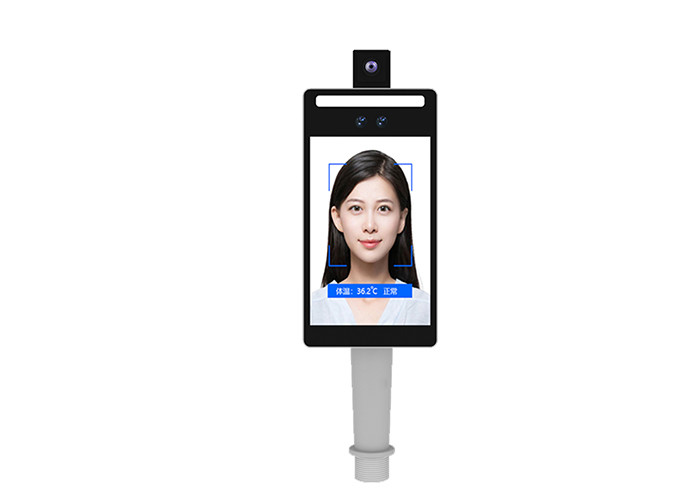

Rakinda F2-TH face recognition temperature measurement tablet is embedded type certification device based on Android system. F2-TH supports the face temperature measurement function, which can quickly and accurately test the body temperature and give an alarm when detecting high temperature. It is suitable for office areas, hotel gates, office buildings, schools, shops, communities, public services and management projects.

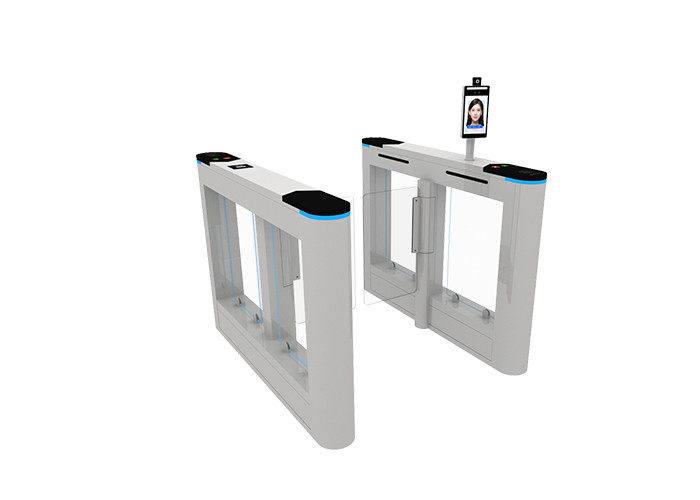

It supports 1280P HD cameras, speakers, COM ports and TCP / IP communication methods, supports external ID SD card readers, QR code readers and ID card readers and supports multiple identity authentication methods, which can be used in conjunction with personnel channel to facilitate personnel access management.


Product Parameters:

Face Recognition Terminal Product Parameters
Screen Size 8", full viewing angle, 170° IPS LCD
Resolution 800*1280
Camera Type RGB TOF
Resolution (horizontal × vertical) Support 1080P/960P/720P/VGA 640× 480 Pixel
Field of view (horizontal × vertical) 74° × 56° @960P (Default) 80° × 60°
63° × 37° @1080P
74° × 42° @720P
74° × 56° @VGA
Frame rate (FPS) Maximum 30FPS @960P/720P/VGA Up to 15FPS @1080P MAX 30FPS
Detection distance (unit: meter) 0.35-1.2
light source 850nm VCSEL
Working temperature (degree Celsius °C) 0℃-50℃
Core parameter CPU 6 cores, clocked at 2.0GHz
OS Android 7.1.2
Parts Fill light Infrared, LED fill light
Network module Support wired, wireless (2.4GWi-Fi), wireless (USB external)
Bluetooth Module 4.0
4G communication module Optional (built-in or external)
ID card reader Optional (built-in or external)
GPS Optional (built-in or external)
Port USB USB2.0 1
RD232 RS232 serial port, 2.5mm terminal block 2P
Relay output 2.5mm terminal block 3P
Wiegand interface 2.5mm terminal block 3P, support Wiegand 26
Wired network interface RJ45 Gigabit network
General parameters IP Protection IP54
Power DC12V (±10%) /3A
Operating temperature -20℃ ~70℃
Working humidity 10%~90 %
Power consumption 22W MAX
Installation method Wall bracket installation, gate bracket installation
Equipment size 39cm x 12cm x 9cm
Weight 2.5kg
