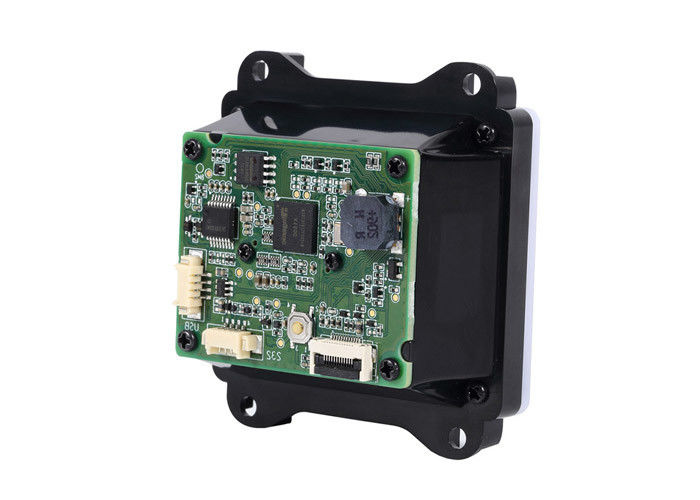

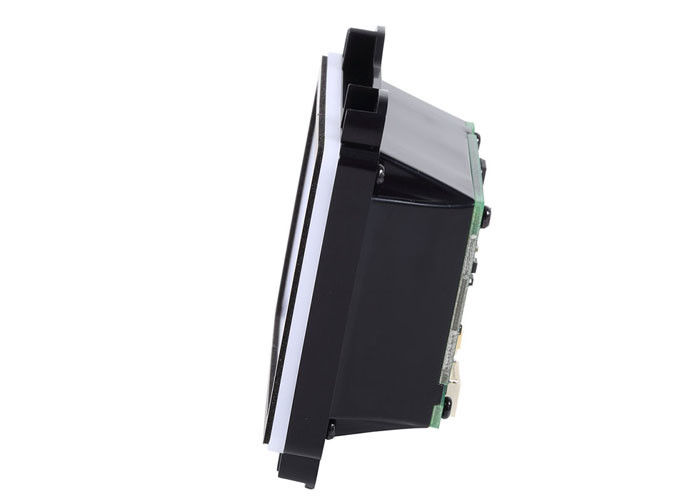

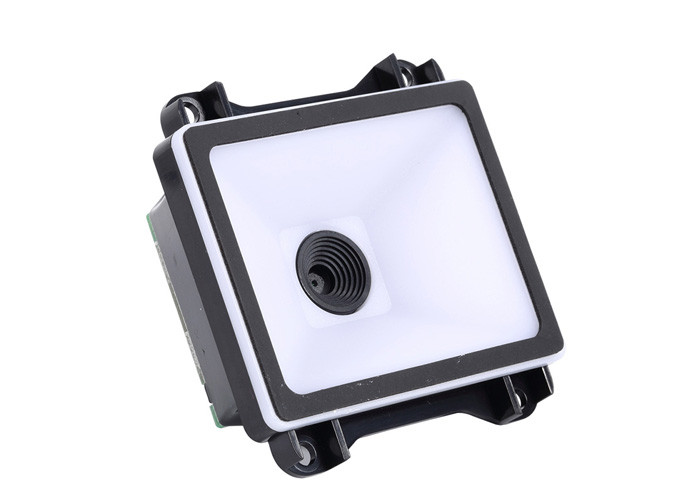

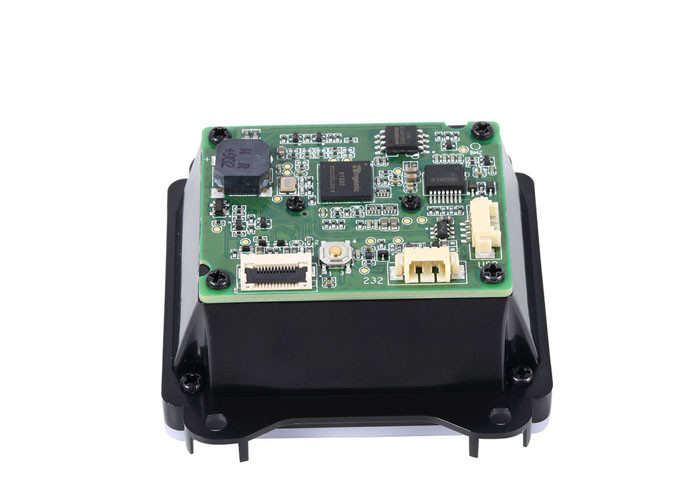

QR Code Fixed Mount Barcode Scanner RD4300 5mil Resolution White LED Light Source

QR Code Fixed Mount Barcode Scanner RD4300 5mil Resolution White LED Light Source

    • QR Code Fixed Mount Barcode Scanner RD4300 5mil Resolution White LED Light Source
    • QR Code Fixed Mount Barcode Scanner RD4300 5mil Resolution White LED Light Source
    • QR Code Fixed Mount Barcode Scanner RD4300 5mil Resolution White LED Light Source
    • QR Code Fixed Mount Barcode Scanner RD4300 5mil Resolution White LED Light Source
    • QR Code Fixed Mount Barcode Scanner RD4300 5mil Resolution White LED Light Source
  • QR Code Fixed Mount Barcode Scanner RD4300 5mil Resolution White LED Light Source

    Product Details:

    Place of Origin: Shenzhen, Guangdong, China
    Brand Name: RAKINDA
    Certification: CE, RoHS
    Model Number: RD4300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: Normal craft paper and foam
    Delivery Time: Within 5 working days after receiving the balance
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 1000 PCS/ week
    Contact Now
    Detailed Product Description
    Interface: TTL-232, RS-232, USB Dimensions: 61.5(W)×65.5(D)×31.9(H)mm (max.)
    Weight: 33g Operating Temperature: -40℃~+60℃
    Resolution: ≥5mil Light Source: White LED

    Product Features:

    1. Snappy On-screen Barcode Capture

    Featuring excellent near-field reading, wide-viewing angle and snappy reading, the CPU-powered is incredibly reader-friendly on smartphone & tablet displays.

    2. Slimmer, More Compact Construction

    Compared with its predecessor, the new generation of RD4300 qr code scanning module is thinner, lighter and more compact, and thus easier to be integrated into any devices.

    3. Robust Design with High Vibration Resistance

    The single PCB construction and vibration-proof connectors make the qr scan engine more resistant against vibration and help improve its reliability.

    4. Outstanding Power Efficiency

    The advanced technology incorporated in the 2d barcode reader module helps reduce its power consumption and prolong its service life.

    5. Multiple Interfaces

    The RD4300 qr code reader module supports USB, RS-232 and TTL232



    Product Parameters:



      Product Name qr code scanner module
    Performance Image Sensor 640 * 480 CMOS
    Light Source White LED
    Symbologies 2D PDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode, Chinese Sensible Code, GM Code, Micro PDF417 Code, Code One
    1D EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6, Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K
    Resolution ≥5mil
    Typical Depth of Field EAN-13  25mm-110mm (13mil)
    PDF 417 35mm-50mm (6.7mil)
    Data Matrix 15mm-40mm (10mil)
    QR Code 0mm-90mm (15mil)
    Symbol Contrast 30%
    Scan Angle** Roll: 360°, Pitch: ±40°, Skew: ±45°
    Field of View Horizontal 68°, Vertical 51°, Diagonal 84.8°
    Mechanical Interface TTL-232, RS-232, USB
    Electrical Power Adapter  DC5V power adapter to power the NLS-EVK with RS-232 cable.
    Current 3.3VDC Operating 335mA (typical),  479mA (max.)
    Idle 93mA
    Dimensions  61.5(W)×65.5(D)×31.9(H)mm (max.)
    Weight 33g
    Environmental Operating Temperature -40℃~+60℃
    Storage Temperature -40℃~+75℃
    Humidity 5%~95% (non-condensing)
    Ambient Light 0~100000lux (natural light)
    Accessories Cable

    USB             Used to connect the NLS-EVK to a host device.

    RS-232         Used to connect the NLS-EVK to a host device.



    RD4300 Fixed Mount QR Code Scanner

    RD4300 Fixed Mount QR Code Scanner

    RD4300 Fixed Mount QR Code Scanner

    RD4300 Fixed Mount QR Code Scanner

    RD4300 Fixed Mount QR Code Scanner

    RD4300 Fixed Mount QR Code Scanner

    RD4300 Fixed Mount QR Code Scanner

    We have 6 kinds of qr code scanning module with different properties and sizes in this series. If you are interested, please contact us.
