Ethernet Port 13.56mhz QR Code Reader Access Control IC Smart Card RFID Reader For Turnstile Or Elevator

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAKINDA
Certification: CE ROHS FCC
Model Number: RD006
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Normal craft paper and foam.
Delivery Time: within 5 working days after receiving the balance
Supply Ability: 2000 PCS/ month
Image Sensor:: 752X480 Funcation: QR Reading And Mifare Card Reading
Reading Distance:: 10-55mm Power Input: 9-18VDC
Working Current: < 600mA Can Read: ISO14443A Or ISO14443B
High Light:

13.56mhz door access card system

,

gate access control RFID Reader

,

13.56mhz Qr Code Door Access Control

Ethernet Port 13.56mhz QR Code Reader Access Control IC Smart Card RFID Reader For Turnstile Or Elevator



13.56mhz IC Smart Card RFID Reader Wiegand26/34 RJ45 Interface NFC



Access Control Card Reader

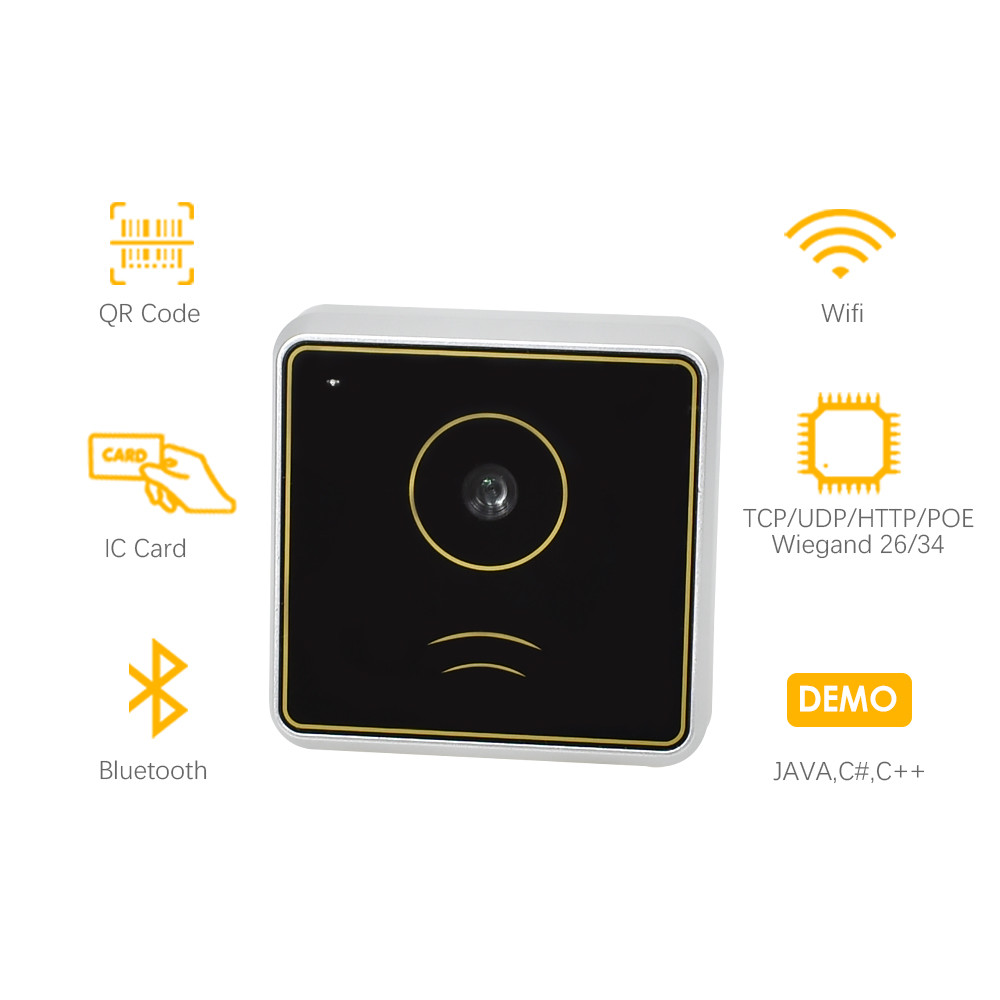

RD006  QR Mifare card reader access control device description:
RD006 hot access control system device, support QR and IC card reading, support Ethernet
port and wiegand, optional functions are wifi/Bluetooth/POE. And it support TCP/HTTP, relay
controller, suitable for gym, elevator or turnstile project. Once you scan the barcode or swipe mifare card,

then you can enter the gate, very convenient and easy to management.



RD006 barcode scanner main features:

1: Embedded multitasking real-time operating system, system can be fully activated with 3 seconds.
2: Single-door access control + 2d code scanner engine + the second generation ID card reader
three in one card products. Make site installation and maintenance become simple with lower cost.

3: The product has Wiegand 26/ 34 output, when the product is used as a 2d code reader, which can make the traditional access control, ladder control, yard products, own the 2d code access function immediately without changing the main controller. And can access legally when it must comply with the rules of the 2d code so that the traditional access control, ladder control and yard products have a real CPU system security level at once and reduce system costs greatly.

4: The product has voice amplifier and speakers whose commonly used access incidents can be set, the network control play nearly 150 voices that can be customized.

5: Common parameters such as network IP parameters, lock delay, Wiegand 26/34, etc., can be set directly through the 2d code to make on-site debugging easier.



QR Code Access Control Devices Parameters:

Image Sensor 752X480
Light Source White LED
Symbologies 2D: PDF417, QR CODE, DATA MATRIX, Support reading screen and printed code
1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc.
Reading Distance 10-55mm
Scan Angle 360° Full Angle
Power Input 9-18VDC
Working Current < 600mA
Can read like ISO14443Aor ISO14443B card serial number Such as second-generation ID card, FM1208 CPU card, M1 card (Mifare S50, Mifare S70 IC card), SRIX4K, etc.
Barcode or 2D code input Wiegand 26/ 34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules
Communication Interface RJ45 10/100M TCP/IP, Extensible Wireless WIFI
Communication Protocol Support TCP / UDP / HTTP
Voice output comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice
Device input 12V DC power input, 1 line gate input, 1 line exit button input, 1 line alarm input
Equipment output 2 way 250V/5A relay output, 1 way unlock, 1 way expansion can control door opener, light, water valve, etc.
Wiegand output Wiegand 26/34 output
Installation size

RD006: 105mm * 105mm * 25mm (L*W*H)

RD007: 152mm * 85mm * 35mm(L*W*H)

Ethernet Port 13.56mhz QR Code Reader Access Control IC Smart Card RFID Reader For Turnstile Or Elevator 0Ethernet Port 13.56mhz QR Code Reader Access Control IC Smart Card RFID Reader For Turnstile Or Elevator 1Ethernet Port 13.56mhz QR Code Reader Access Control IC Smart Card RFID Reader For Turnstile Or Elevator 2




Barcode scanner IC card reading access control system for elevator or gym 3

Ethernet Port 13.56mhz QR Code Reader Access Control IC Smart Card RFID Reader For Turnstile Or Elevator 4
Company Advantages:
Our company is specialized in barcode scanner for 20 years since 2000, we have professional research
developement team, has our own factory, support OEM design. We have many customers from different
countries already. And we are Gold supplier in the Alibaba. Our product is certificated by CE,ROHS and FCC.

FAQ:
Q1: Can I get some samples? Are they free?
A1: We support 1-2pcs sample order. Samples should be paid.

Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us directly
according to the contact info. We will send you proper link directly.

Q3: What is your payment method?
A3: We accept Alibaba online orders by Credit card, PayPal ,T /T

Q4: How long is your warranty time?
A4: Our officially promised warranty time is 1 year after delivery.

Q5: Where can we download the user manual of the scanners?
A5: We will send by email after you get samples.

Q6: What's the lead time?
A6: For sample, it is typically within 5-7days by DHL. For bulk order, it depends on quantity and model you order.

Q7: Can you provide OEM service?
A7: Yes. We need further discuss about details.

Q8: If I come across any problem during product using, where I can get the support ?
A8: We support you technically 24h/7.please send all your questions to us. and we will give the professional,patient,
expliantion by email or call in time.

Q9: How do you ship the scanners usually?
A9: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail. We also can ship the goods by your shipping account or other express agent you provided.
