13.56MHz 125KHz QR Code Reader Access Control IC Smart Card RFID Reader

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAKINDA
Certification: CE ROHS FCC
Model Number: RD008
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Normal craft paper and foam.
Delivery Time: within 5 working days after receiving the balance
Payment Terms: Credit card, T/T, paypal
Supply Ability: 2000 PCS/ month
Interface Type:: RJ45 Ethernet Port Optical Resolution:: 752*480
Protocol:: TCP/HTTP Function: QR Barcode And Minfare Card Reader
Optional Functions:: WIFI/Bluetooth Material: Aluminum Alloy
High Light:

13.56MHz door access card system


125KHz gate access control


125KHz QR Code Reader Access Control

13.56MHz 125KHz QR Code Reader Access Control IC Smart Card RFID Reader


125KHz And 13.56MHz IC Smart Card RFID Reader Wiegand26/34 QR Code Access Control


RD008 QR scanner IC card reader description:


RD008 hot access control system device, support QR and IC card reading, support Ethernet port and wiegand,

optional function is wifi. And it support TCP/HTTP, relay controller, suitable for gym, elevator or turnstile project.

Once you scan the barcode, then you can enter or pass the gate. Free SDK will be provided (RD006 and RD008 same SDK)

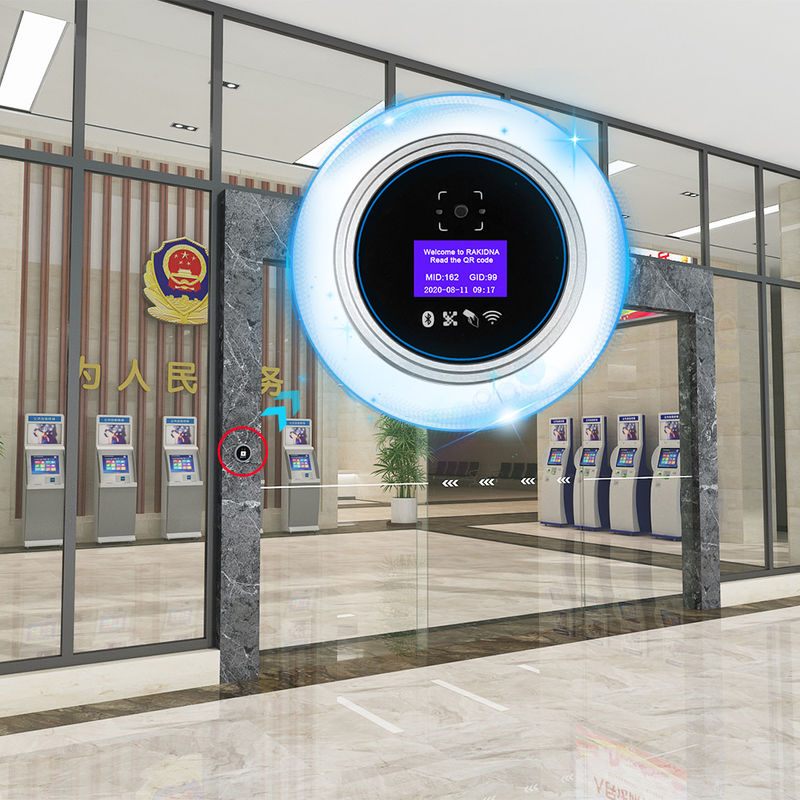

Application scenario: Gym, Elevator, Building office, turnstile access control.


RD008 Phone screen reader main features:

1: Equipment capacity: card 35,000 pieces, record 50,000 pieces, 2d code times 100,000, records and 2d code times are automatically looped over capacity.

2: The product uses the battery-free clock to maintain the circuit, eliminating the need to replace the battery regularly as well as express delivery troubles without batteries.

3: The product uses the data memory and the ferroelectric memory, even if the device suddenly power-down, it will not lose the stored data to ensure data safe and reliable.

4: Products can identify M1 card, second-generation ID card, CPU card, UltraLight, SR176, SRIX4K card number.

5: Network transmission standard for RJ45 10 / 100M TCP / IP transmission, extendable WIFI transmission or mobile phone Bluetooth transmission

6: Support for connections cross-gateway or cross-segment TCP/IP network, and the controller can adapt automatically under direct-connect network cable or crossover cable.

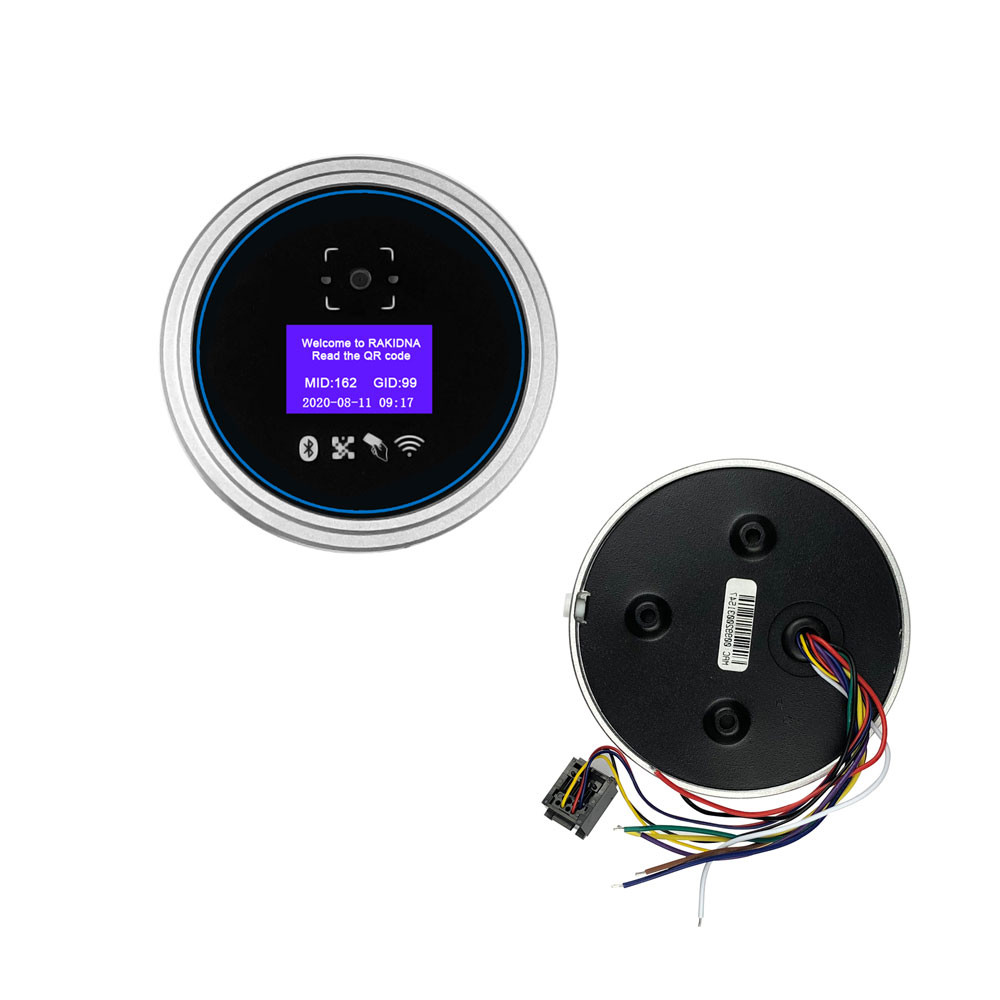

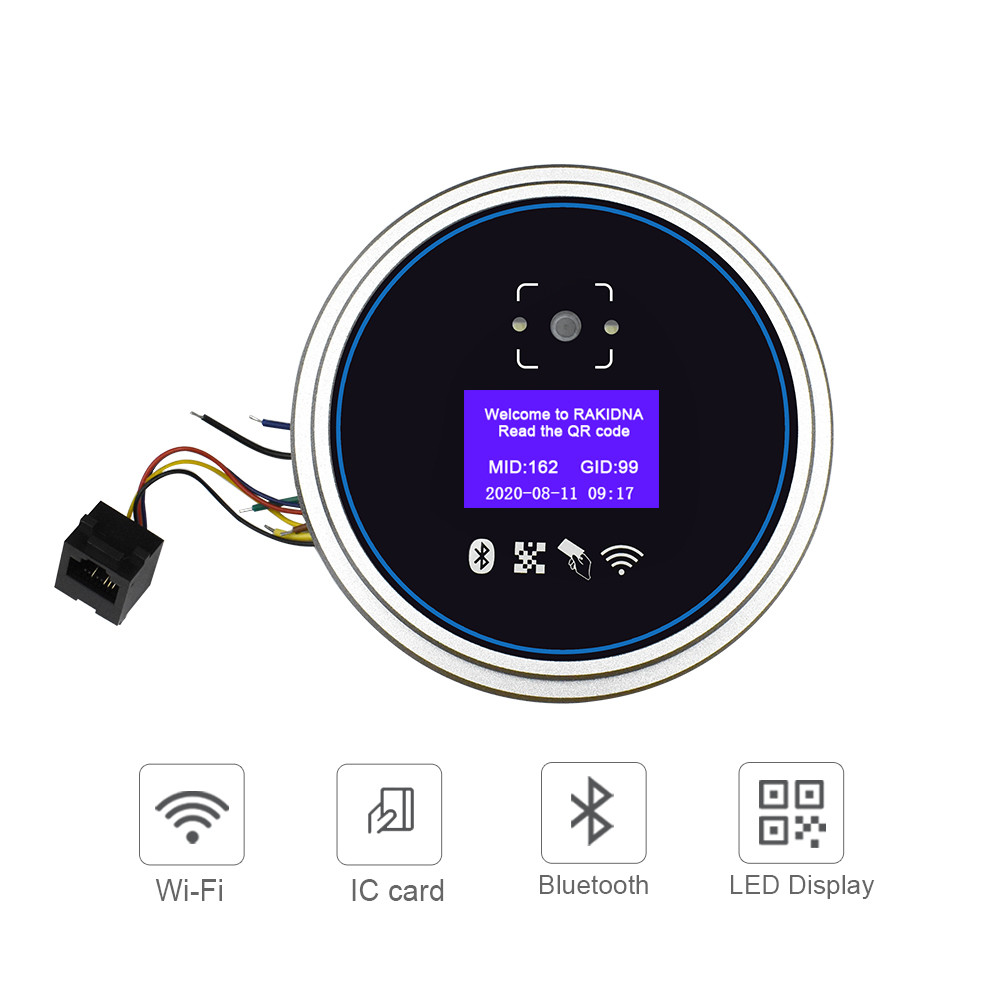

RD008 Round 2D IC Card Access Control Machine
QR Code Scanning Component Parameters
Image Sensor 752X480
Light Source White LED
Symbologies 2D: PDF417, QR CODE, DATA MATRIX,Support Mobile Phone Mirror Recognition and Paper 2D Code Recognition
1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc.
Reading Distance 10-55mm
Scan Angle 360° Full Angle
Display Components
Screen 1.8 ”TFT true color screen
Resolution 128 * 160
Display Area 28mmX35mm
Input and Output Parameters
Power Input 9-18VDC
Working Current < 600mA
Can read like ISO14443Aor ISO14443B Card Serial Number Such as Second-generation ID card, FM1208 CPU Card, M1 Card (Mifare S50, Mifare S70 IC card), SRIX4K, etc.
Barcode or 2D Code Input Wiegand 26/34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules
Communication Interface RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth
Communication Protocol Support TCP / UDP / HTTP
Voice output comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice
Device Input 12V DC power input, 1 door magnetic input, 1 door button input, 1 alarm input
Equipment output 1 channel 3A relay output, 1 channel unlock, 1 channel expansion can control door opener, light, water valve, etc.
Wiegand output Wiegand 26/34 output

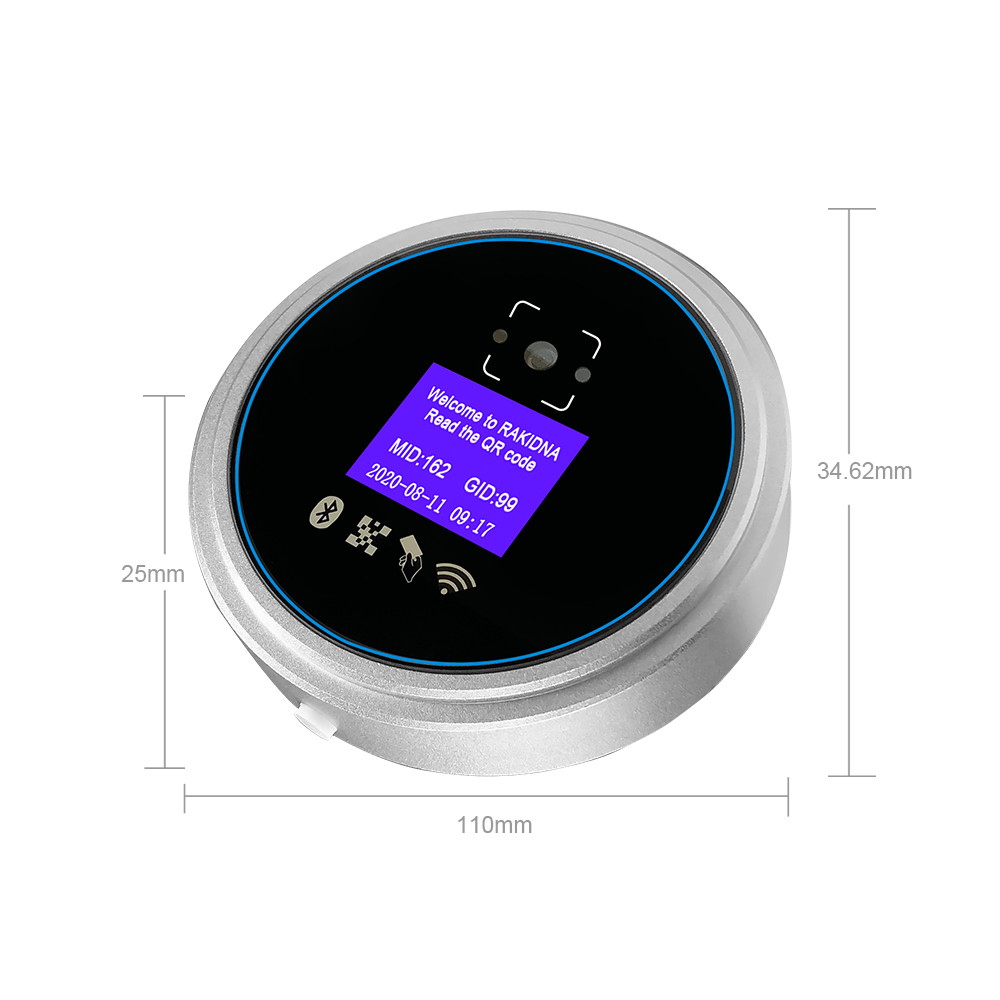

Installation size 110mm * 25-34.62mm (L*H), Compatible with standard 86 box

13.56MHz 125KHz QR Code Reader Access Control IC Smart Card RFID Reader 013.56MHz 125KHz QR Code Reader Access Control IC Smart Card RFID Reader 113.56MHz 125KHz QR Code Reader Access Control IC Smart Card RFID Reader 213.56MHz 125KHz QR Code Reader Access Control IC Smart Card RFID Reader 3

13.56MHz 125KHz QR Code Reader Access Control IC Smart Card RFID Reader 4
