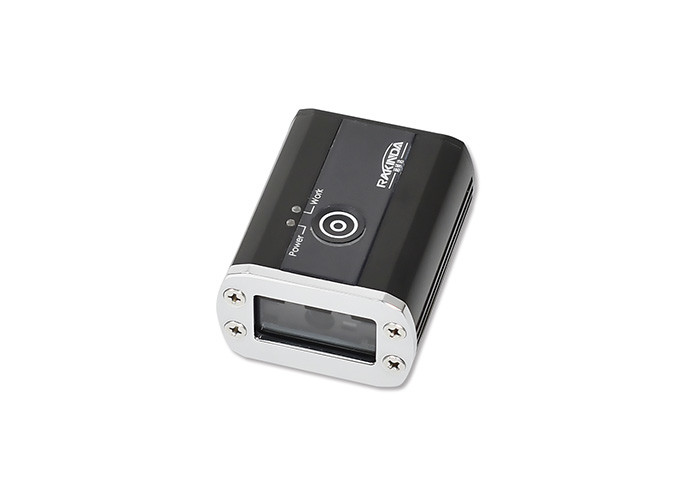

Industrial 1D 2D Fixed Mount Bar Code Scanner , Barcode Reader Module 1.75W

Basic Information
Place of Origin: Guangdong, China
Brand Name: Rakinda
Certification: CE ROHS
Model Number: LV3000U plus
Minimum Order Quantity: 1 piece
Price: USD+150-200+piece
Packaging Details: 63(W)*45(D)*28(H)
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union,
Supply Ability: 20000+unit+ per month
Resolution: >3mil Power Consumption: 1.75W
Operating Voltage: DC 5 V Dimensions(mm): 63(W)*45(D)*28(H)
Weight: 75g Operating Temperature: -20°C - +60°C
Storage Temperature: -40°C - +70°C Light Source: LED 400nm To 750nm
Color: Black Product Status: Stock
High Light:

barcode engine


2d barcode engine

Industrial 1D 2D Fixed Mount Bar Code Scanner Module Fixed Barcode Scanner


Product Description:

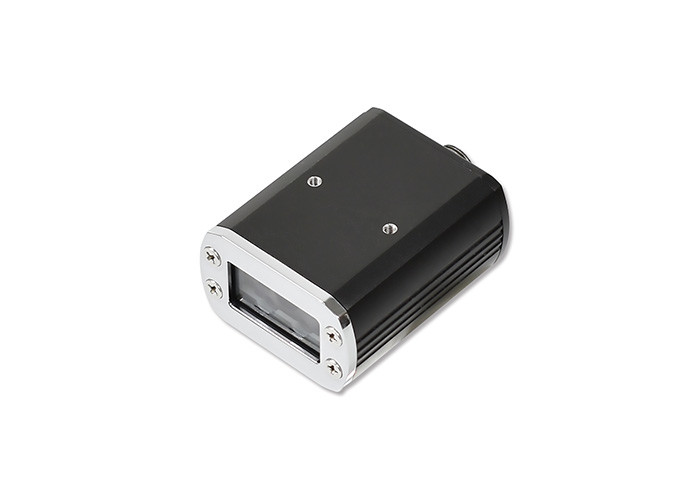

      LV3000U PLUS Fixed Mount 2D Scanner is environmentally sealed to an IP65 rating

to prevent dust, moistureand other contaminant from entering it.


 Quickly identify all types of 1D codes and QR codes

 Compact and flexible application

 Rich application scenarios

 Easy secondary development design

 Powerful and easy to personalize

 Compatible with multiple systems



Barcode Scanner Parameters:

Performance Image Sensor 1280*800 CMOS
Illumination Aiming White LED laser diode or gree LED
Symbologies 2D PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One, ect.
1D EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc.
Resolution >=3 mil
Typical Depth of Foeld EAN-13 55-360mm(13mil)
Code 39 70-180mm(5mil)
PDF417 55-160mm(6.7mil)
Data Matrix 50-170mm(10mil)
QR Code 40-210mm(15mil)
Scan Mode Sense mode, Continuous mode, Level mode, Pulse mode
Scan Angle Roll:360d, Pitch:±55°, Skew:±55°
Field of View Horizontal 51°, Vertical 32°
Min Symbol Contrast 25%
Mechanical Electric Interface RS-232 or RS232 to Ethernet
Dimensions 63(W)*45(D)*28(H)
Weigh 75g
Notification Beep, LED indicator
Rated Power Consumption 1622mW(typical)
Operating Voltage 5VDC±-5%
Current SVDC Operating 276.8mA(typical), 322.7mA(max.)
Standby 83.3mA
Environmental Operating Temperature -20℃ to 60℃(-4℉ to140℉)
Storage Temperature -40℃ to 70℃ (-40℉ to 158℉)
Humidity 5% to 95% (non-condensing)
ESD ± 14kV (air discharge), ±8kV (direct discharge)
Drop 1.5m
Sealing IP65
Certifications FCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC

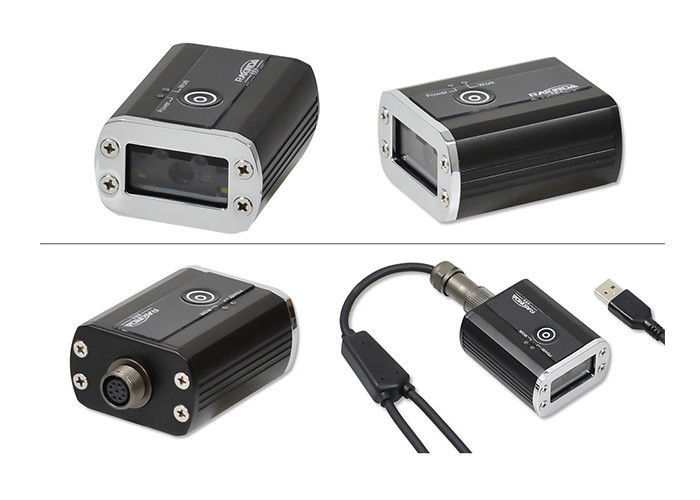

Environmental Cable RS-232 Used to connect the LV3000U to a host device.
RS-232 Used to connect the LV3000U to a host device.
Power Adapter DC5V adapter to power the LV3000U with RS-232 cable



Industrial 1D 2D Fixed Mount Bar Code Scanner , Barcode Reader Module 1.75W 0


1.IR/Light Triggers
The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the

scanner to scan barcodes as they are presented, to achieve higher throughput and productivity.

2.Automatic Exposure Control (AEC)
The sensors in the LV3000UPLUS automatically adjust the brightness of supplementary lighting

based on the light reflected off barcode.

3.Unmatched Reading Performance
The LV3000U PLUS is capable of reading 1D as well as high-volume 2D barcodes on the screen

covered with protective film.


4: we can arrange DHL shipment for you, just 3-10days to your country.


Aboout Us:




Q1: Can I get some samples? Are they free?
A1: Of course you can get sample for testing before bulk order, but samples are not free.


Q2: What's the delivery time?

A2: Depend on product and quantity of your order. Usually, samples can be sent to you in 3 work days after your payment.


Q3: What about payment methods?

A3: Payment terms: Online payment, T/T,West Union and Paypal, etc.


Q4: Can you list the product of your company?

A4: Barcode Scanner Module, Bluetooth Barcode/RFID Scanner, Desktop/Handheld Barcode Scanner.


Q5: Where can we download the user manual of your products?

A5: User manual will be sent to you by email after the sample order.
