High Sensitive Embedded QR Code Scanner 2D Module For Vending Machine LV4300

Basic Information
Place of Origin: Guangdong, China
Brand Name: Rakinda
Certification: CE FCC
Model Number: LV4300
Minimum Order Quantity: 1 pieces
Price: Negotiation
Packaging Details: carton package
Delivery Time: 1-5 Working days
Payment Terms: Western Union, T/T, paypal
Supply Ability: 5000pieces per month
Scan Element Type: CMOS Interface Type: USB, TTL232
Colour Depth: 32 Bit Scan Speed: ≥5mil
Light Source: White LED Operating Voltage: 3.0~5.5VDC
Field Of View: Horizontal 80°, Vertical 56° Scan Angle: Roll: 360°, Pitch: ±40°, Skew: ±40°
Color: White Product Status: Stock
Weight: 0.5kg
High Light:

barcode engine


2d barcode engine

High Sensitive OEM Embedded QR Code Scanner 2D Module for Vending Machine LV4300

QR Code Access card Reader is our new intelligent Access Card Reader, Fast reading speed, High recognition rate, Strong compatibility, can connect to any Wiegand input contronller, widely Community visitor access management, Administration Service Hall management, Gates access control, Visitors intelligent machines, Smart home; Upgrade old access control systems etc.
UIMG core technology. The self-developed sixth-generation UIMG core decoding technology can quickly read various quality barcodes.
Excellent screen reading ability. Special adjustment for screen barcodes, which can adapt to large brightness screen barcodes with low brightness and various types of film.
Rich interface. USB and TTL-232 interfaces are available to meet more interface requirements.
Green low power consumption. The use of independent NLDC core technology greatly reduces operating power consumption and extends equipment life.

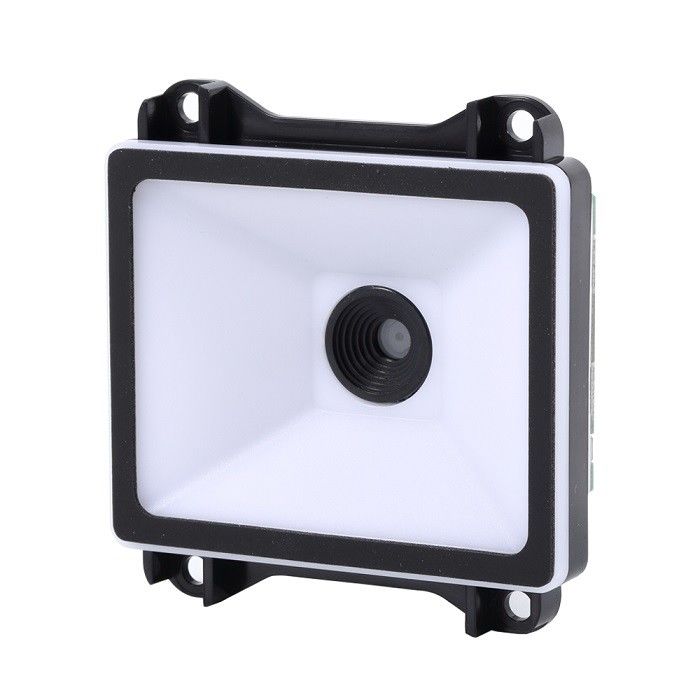

High Sensitive Embedded QR Code Scanner 2D Module For Vending Machine LV4300 0

 Product Parameters:

PerformanceImage Sensor640 * 480 CMOS
Light SourceWhite LED
Symbologies2DPDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode, Chinese Sensible Code, GM Code, Micro PDF417 Code, Code One
1DEAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6, Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K
Typical Depth of FieldEAN-1325mm-110mm (13mil)
PDF 41735mm-50mm (6.7mil)
Data Matrix15mm-40mm (10mil)
QR Code0mm-90mm (15mil)
Symbol Contrast30%
Scan Angle**Roll: 360°, Pitch: ±40°, Skew: ±45°
Field of ViewHorizontal 68°, Vertical 51°, Diagonal 84.8°
MechanicalInterfaceTTL-232, RS-232, USB
ElectricalPower AdapterDC5V power adapter to power the NLS-EVK with RS-232 cable.
Current 3.3VDCOperating335mA (typical), 479mA (max.)
Dimensions61.5(W)×65.5(D)×31.9(H)mm (max.)
EnvironmentalOperating Temperature-40℃~+60℃
Storage Temperature-40℃~+75℃
Humidity5%~95% (non-condensing)
Ambient Light0~100000lux (natural light)

USB Used to connect the NLS-EVK to a host device.
RS-232 Used to connect the NLS-EVK to a host device.

Rakinda is located in Shenzhen Lilang Industrial Park, initially established in 2000. Rakinda is a prestigious high-tech company specializing in designing, developing and manufacturing barcode scan instruments including OEM barcode scan engine, desktop barcode scanner, handheld barcode scanners, cordless barcode scanners, image platform, android data terminal, etc. The application domains are manufacturing, retailing, postage, logistic and medical services, etc.

Q1: How can I buy?
A1: We are trade assurance supplier at Alibaba. You can start an online order directly. Or pls contact us first according to the contact info. We will send you the proper link directly.
Q2: What is your payment method?
A2: We accept Alibaba online orders, PayPal, T /T, LC, Western Union, MoneyGram.
Q3: How long is your warranty time?
A3: Our officially promised warranty time is two years after delivery.
Q4: Where can we download the user manual of the scanners?
A4: We will send by email after you get samples.
Q5: Can you provide OEM service?
A5: Yes. We need further discuss about details.
Q6: If I come across any problem during product using, where I can get the support?
A6: We support you technically 24h/7.please send all your questions to us. and we will give the professional, patient,explanation by email or call in time.
