| Place of Origin: | China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE ROHS FCC |
| Model Number: | S80 |
| Minimum Order Quantity: | 1 pieces |

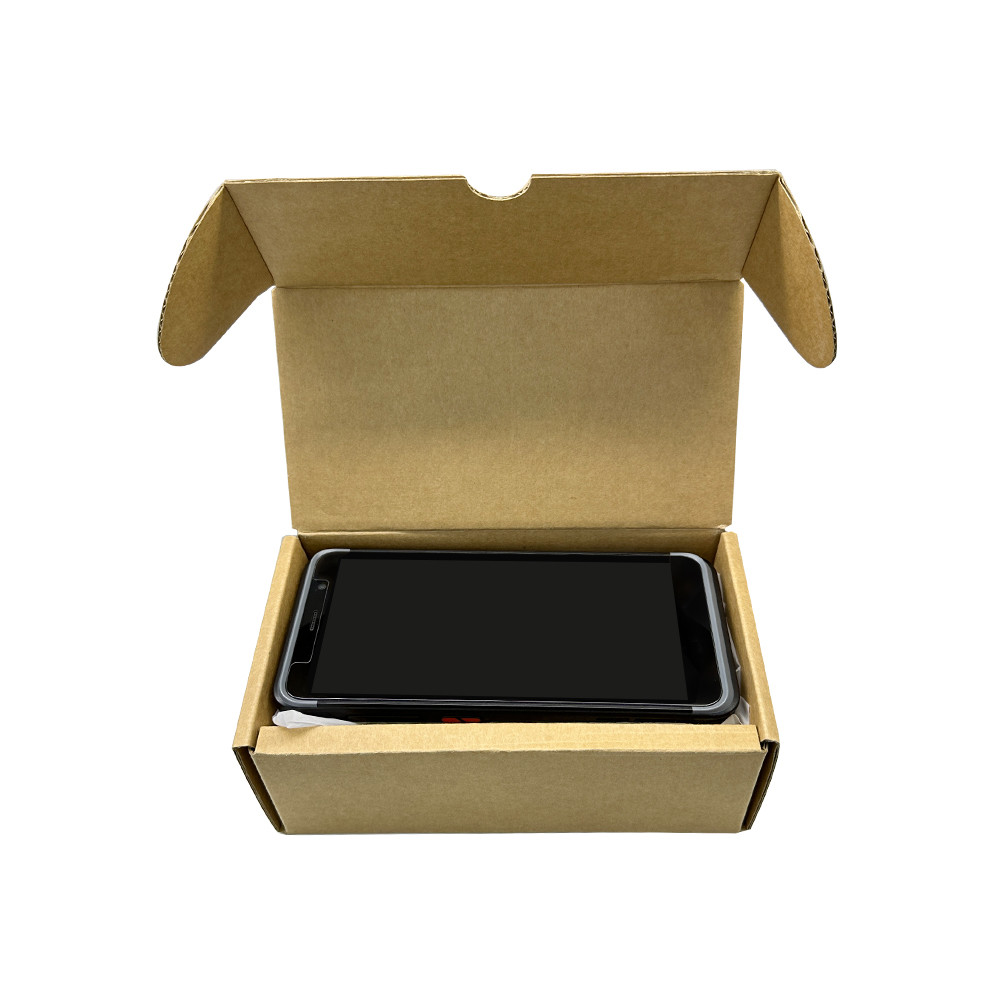

| Packaging Details: | carton package, under 0.5kg/ piece |
| Delivery Time: | 5-10 working days |
| Payment Terms: | Western Union, T/T, paypal |
| Supply Ability: | 10000 piece per weeek |
| Items: | Industrial Handheld PDA Scanner | Dimensions: | 162×76.8 ×13.9mm |
|---|---|---|---|
| Display: | 5.72inch18:9HD+(1440*720) | CPU: | Octa-core 2.0GHz |
| OS: | Android11with GMS | Weight: | 252g( Including Battery) |
| High Light: | desktop barcode reader,barcode reader scanner |
||
S80 Android Smartphone PDA:
1. With 4GB RAM+64GB ROM large memory
2. 4600mAh large-capacity battery which can last for more than12 hours
3. IP67 Industrial Design
4. Multi-functions to meet various application
Features:
1.4G full Netcom, dual sim option
Supports GSM/WCDMA/TD-LTE/FDD-LTE/CDMA1X/TD-SCDMA/EVDO; it can support 2G/3G/4G by China Mobile, Unicom, and Telecom. The device also has a dual SIM option, allowing you to use the most suitable provider available wherever you go.
2.Powerful Scanning Performance
The PDA embeds high-quality 1D laser scan engine or 2D image scan engine to ensure fast scanning performance.
It supports NFC also. With 8-mega pixel camera and LED light source, it can take high definition pictures anytime and anywhere.
3.Built to survive demanding environments
No matter the environment, S80 offers you a reliable solution. With IP67 sealing, it is highly protected from dust and moisture. The device can withstand 1.5m drop to ground (twice for every surface). The device can work normally after it is dropped into water! It is 5.72 touch screen. S5 supports both dry and moist hands, as well as gloved fingertip touch input. Ideal for use in severe conditions, such as rain, snow, and dust.
4.Full-function Android system
It uses customized Apps management and administrator rights to solve the safety problem of Android system data;
The device optimizes the system and makes the battery work longer hours; it has a wide application with data collector, wireless communication, Bluetooth, GPS functions.
Product Parameters:
| Basic Parameters | |
| Size | 162×76.8×13.9mm |
| Weight | 252g(including battery) |
| Display | 5.72inch 18:9 HD+(1440*720) |
| Touch panel | Gorillaglass,plated with anti-fingerprint film,supports wet hand operation |
| Backlit | LED Backlit |
| POWER | 4600mAh,3.8V removable lithium battery;spare batteryloptional):150mAh More than 8hours working time,and standby time 300hours |
| SIM | SIM+TF:nano sim+nano sim/TF Card |
| USB port | Type-c,Support OTG |
| Network connections | 4G/3G/2G,Wi-Fi,GPRS |
| Notification | Cue Tone;multi-colorled;Vibration |
| Keyboard | 3 virtual buttons:Back,Home,Menu |
| Audio frequency | Amicrophone,speaker,receiver |
| Performance Parameter | |
| CPU | Octa-core 2.0GHz |
| OS | Android 11 with GMS |
| Memory | Standard 4GB+64GB(LPDDR4X+EMMC), Option 3GB+32GB/6G+128G |
| Working environment | |
| Operating temperature | -20℃ to 55℃ |
| Humidity | 5%to 95%(Non-condensation) |
| Drop specification | Within the working temperature range,it can withstand repeated falls from a height of 1.5 meters to the concrete floor |
| Roll Specification | Can Withstand 200 times 1.6ft/0.5 m rolling impact;meets or exceeds IEC |
| Vibration | Random(10 Hz-30KHz);60 minutes per shaft |
| Electrostatic protection | +/-10kv air discharge +/-6kv contact discharge |
| Protection level | IP67 |
| Wireless Communication | |
| WWAN |
Asia+Europe band: |
| WIFI |
Wifi Frequency:2.4GHz&5GHz |
| navigation | Beidou,Glonass,GPS,Galileo,QZSS |
| Version | Bluetooth 5.0 |
| Data Collection | |
| Scanning engine | Professional scanner,one/two-dimensional barcode |
| Supported 1D barcode types |
UPC/EAN,Bookland EAN,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39,Code 32,Code 93,Code 11,Interleaved 2 of 5,Discrete 2 of 5,Codabar,MSl,Chinese 2 of 5,Korean 3 of 5,Matrix 2 of 5,Inverse 1D,GS1 DataBar,Composite Codes |
| Supported 2D barcode types |
PDF417,MicroPDF417,Data Matrix,Data Matrix Inverse,Maxicode,QR Code,MicroQR,QR inverse,Aztec,Aztec Inverse,Postal Codes:US Postnet,US Planet,UK Postal,Australian Postal, Japan Postal,Netherlands KIX Code,USPS 4CB/One/Intelligent Mail,UPS FICS Pstal |
| Camera |
Front:5MP FF |
| Internet of things function | |
| NFC |
working band:13.56MHz |
| RFID |
Workingband:CHINA:920-925MHz; USA:902-928MHz;EU:865-868MHz; |
| Security PSAM | Supporting ISO7816 standard,supporting 1PSAM cards |
| Sensors | Light Sensor,distance sensor,gravity accelerometer,geomagnetic sensor,Hall Effect Sensor (Optional) |
| Others | |
| Certification | CE/CCC/UN38.3/RoHS/IP67 |

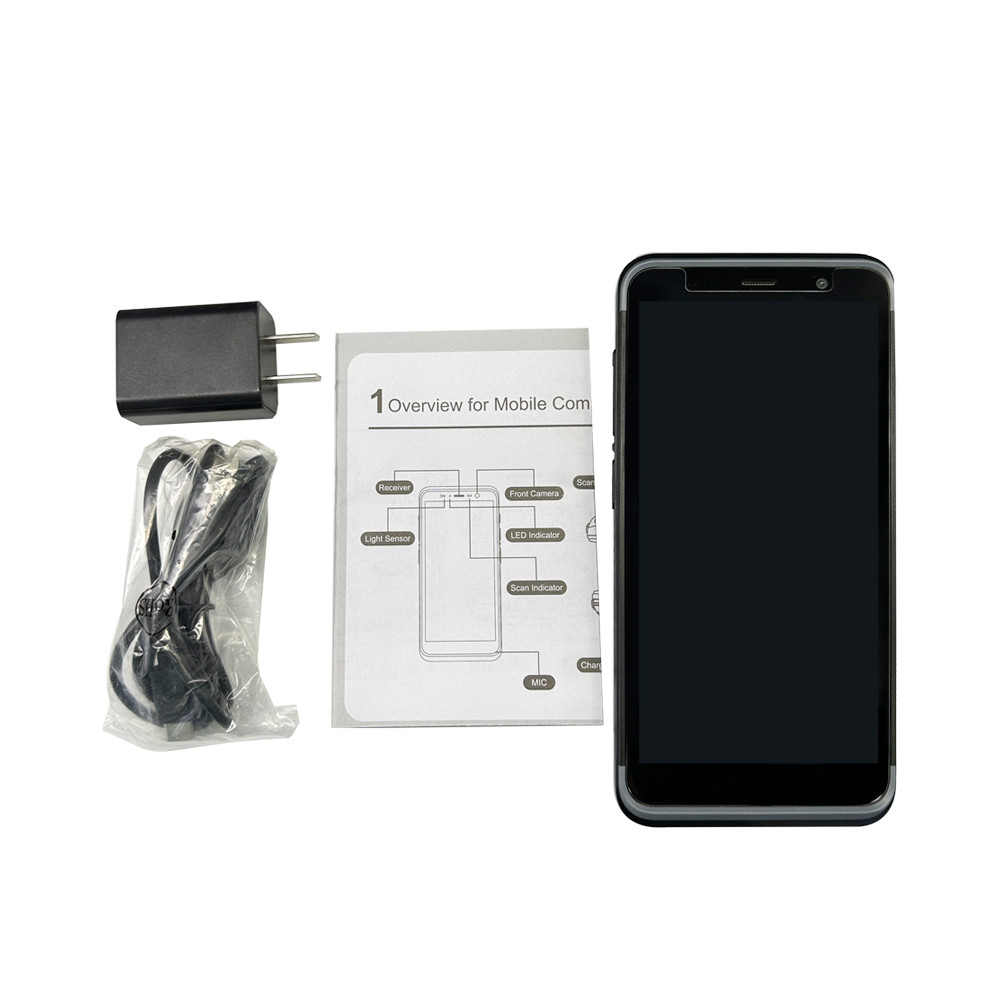

| Standard accessories | 5V/2A adapter/Data cable/battery/quick guide/UHF test tag |
| Optional accessories | Charging cradle/charging cradle adapter/battery/temperedglass /hand strap/pistol grip/lanyard |
Application Scenarios:
Logistics, Warehouse management, chain stores, food traceability, medical, distributor management, manufacturing, and assets counting
