Fixed Mount QR Reader Barcode Scanner Module Wiegand RS232 36 Bit Colour Depth

Basic Information
Place of Origin: Guangdong, China
Brand Name: Rakinda
Certification: CE FCC
Model Number: LV4300
Minimum Order Quantity: 1 pieces
Price: Negotiation
Packaging Details: carton package
Delivery Time: 1-5 Working days
Payment Terms: Western Union, T/T,paypal
Supply Ability: 5000pieces per month
Scan Element Type: CMOS Interface Type: USB, TTL232
Weight: 33g Colour Depth: 36 Bit
Optical Resolution: 640 * 480 CMOS Product Name: 2d Barcode Scanner Module
Notification: Beeper, Green LED Indicator Scan Angle: Roll: 360°, Pitch: ±40°, Skew: ±45°
High Light:

2d barcode module


2d barcode engine

Fixed Mount QR Reader Wiegand RS232 OEM Mini 1D 2D Barcode Scanner Modules

The module is RD4300 2D barcode decoder chip ingeniously blends technology and advanced chip design & manufacturing. which significantly simplifies application design and delivers superior performance and solid reliability with low power consumption.

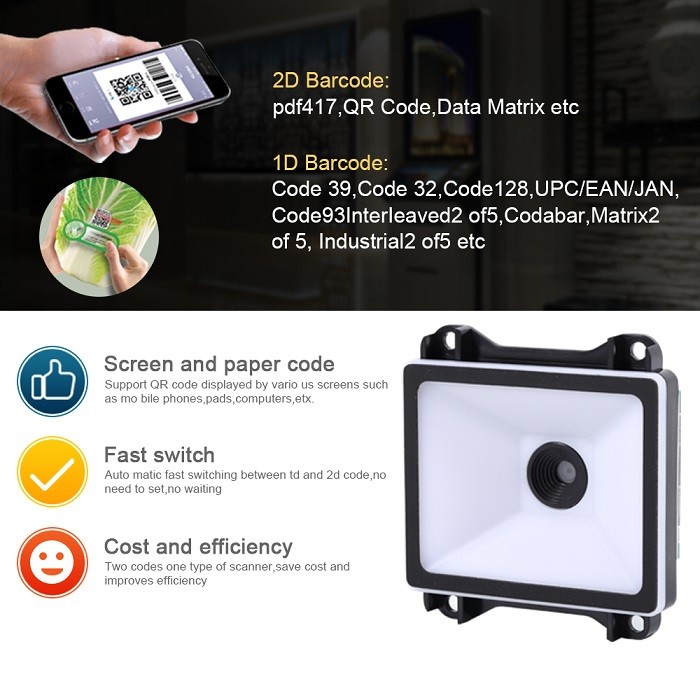

Fixed Mount QR Reader Barcode Scanner Module Wiegand RS232 36 Bit Colour Depth 0
Fixed Mount QR Reader Barcode Scanner Module Wiegand RS232 36 Bit Colour Depth 1

Product Parameters:

PerformanceImage Sensor640 * 480 CMOS
Light SourceWhite LED
Symbologies2DPDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode, Chinese Sensible Code, GM Code, Micro PDF417 Code, Code One
1DEAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6, Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K
Typical Depth of FieldEAN-1325mm-110mm (13mil)
PDF 41735mm-50mm (6.7mil)
Data Matrix15mm-40mm (10mil)
QR Code0mm-90mm (15mil)
Symbol Contrast30%
Scan Angle**Roll: 360°, Pitch: ±40°, Skew: ±45°
Field of ViewHorizontal 68°, Vertical 51°, Diagonal 84.8°
MechanicalInterfaceTTL-232, RS-232, USB
ElectricalPower AdapterDC5V power adapter to power the NLS-EVK with RS-232 cable.
Current 3.3VDCOperating335mA (typical), 479mA (max.)
Dimensions61.5(W)×65.5(D)×31.9(H)mm (max.)
EnvironmentalOperating Temperature-40℃~+60℃
Storage Temperature-40℃~+75℃
Humidity5%~95% (non-condensing)
Ambient Light0~100000lux (natural light)

USB Used to connect the NLS-EVK to a host device.
RS-232 Used to connect the NLS-EVK to a host device.

Rakinda is located in Shenzhen Lilang Industrial Park, initially established in 2000. Rakinda is a prestigious high-tech company specializing in designing, developing and manufacturing barcode scan instruments including OEM barcode scan engine, desktop barcode scanner, handheld barcode scanners, cordless barcode scanners, image platform, android data terminal, etc. The application domains are manufacturing, retailing, postage, logistic and medical services, etc.


Q1: Can I get some samples? Are they free?
A1: We support 1pc sample order. Samples should be paid.

Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start an online order directly. Or pls contact us first according to the contact info. We will send you the proper link directly.

Q3: How long is your warranty time?
A3: Our officially promised warranty time is two years after delivery.

Q4: Where can we download the user manual of the scanners?
A4: We will send by email after you get samples.

Q5: Can you provide OEM service?
A5: Yes. We need further discuss details.

Q6: How do you ship the scanners usually?
A6: Since it is light and compact, we usually use DHL, UPS, FedEx, TNT and post air mail. We also can ship the goods by your shipping account or other express agent you provided.
