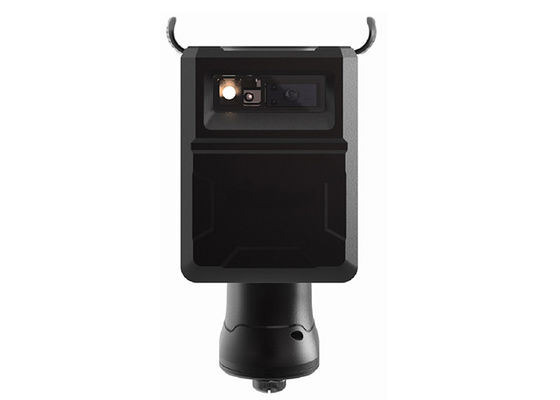

0-33dBm Rfid Uhf Handheld Reader , Portable Rfid Reader Writer‎ Rugged Design

0-33dBm Rfid Uhf Handheld Reader , Portable Rfid Reader Writer‎ Rugged Design

    • 0-33dBm Rfid Uhf Handheld Reader , Portable Rfid Reader Writer‎ Rugged Design
    • 0-33dBm Rfid Uhf Handheld Reader , Portable Rfid Reader Writer‎ Rugged Design
  • 0-33dBm Rfid Uhf Handheld Reader , Portable Rfid Reader Writer‎ Rugged Design

    Product Details:

    Place of Origin: China
    Brand Name: SCANMAX
    Model Number: SMB02H

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Packaging Details: Normal craft paper and foam
    Delivery Time: Within 5 working days after receiving the balance
    Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram, Paypal
    Supply Ability: 300PCS/Week
    Contact Now
    Detailed Product Description
    Working Frequency: 860-960MHz Output Power: 0-33dBM
    Read Distance: 3-15m Read Lable Peak Value Speed: >200pcs/second
    Supporting Protocol: EPC Global ISO18000-63 Output Power Accuracy: +/-1dB
    High Light:

    desktop barcode reader


    handheld uhf rfid reader

    Rugged Design 0-33dBm Handheld UHF RFID Reader Full Range of UHF RFID Devices


    Handheld RFID Reader Feature:

    1. Good universality:universal for 5〜8 inch cellphone /pad

    2. High performance of UHF reading ability, supports 6B & 6C protocol, reads long distance UHF labels, also supports multiple labels reading.

    3. Serveral function optional: standard accessory UHF RFID optional 1D/2D scanner head,IrDA metering, glare flashlight,etc.

    4. Serveral status indicator:builtin LED, buzzer

    5. Fast and efficient software integration:offer jar packet to call, finish client software integration, also provide port jar packet.

    6. Intelligent management:low power consumption , sleep after no peration over 30 minutes, trigger to awake.

    7. Double battery standby:eqiup with 2 6Ah polymer battery, last for 4 to 8 hours.

    8. Metal casing with handle:easy to handle, good for heat dissipation,durable

    9. With charger pedestal: charge 2 battery at the same time.

    10. RS485 communication:compliant for RS485 port standard, RS232/RS485 standard of EIA/TIA and request of anti-interference DL/T614-2007



    SMB02H Handheld RFID Reader Applications:
    Electronic entity ID property management, electronic mobile working management,tabacco management, clothes purchase-sell-stock management,property management,warehouse and logistics,production,fair entrance verify, airplane security goods counting, and so on.


    Charge and discharge function parameter:


    Charging Voltage 5.0±0.25V DC
    Output Voltage 5.0±0.25V DC
    Nominal Capacity 6000mAh
    Standard charging currency <2A
    Standard charing Method CV (constant voltage 5.0V) charging
    Charging Time ≤ 4 hours (1 charge cycle time for BACKPOWER internal battery)
    MAX charging currency <2A
    MAX discharging currency <2A



    UHF Function:


    Working frequency 860Mhz – 960Mhz
    Air interface protocol EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C ISO 18000-6B
    Output Power 0~33dBm
    Antenna 3dbi circularly polarized antenna
    Reading distance 3~15m(Related to factors such as label size)
    Read tag peak speed > 200 sheets / sec
    Communication Interface Bluetooth


    Handheld RFID Reader Parameters:

    1D/2D functions Image sensor 752×480 CMOS
    Light CCD LED 625±10nm
    Focus Laser 650nm
    Symbologies 2D PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140)
    1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, Code 11, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Industrial 2 of 5,Standard 2 of 5, Plessey, MSI-Plessey ,etc
    Precision ≥3mil
    (Options)Typical reading depth of field EAN-13 60mm~290mm (13mil)
    PDF417 55mm~135mm (6.7mil)
    Code39 55mm~165mm (5mil)
    Data Matrix 55mm~130mm (10mil)
    QR Code 45mm~175mm (15mil)
    Symbol contrast ≥20%Reflection difference
    Barcode sensitivity Rotate 360°, tilt ±55°, deflection ±55°
    Field of view 36° horizontal and 23° vertical
    Infrared emission tube center wavelength 940nm
    IrDA  Power meter reading function (optional) Infrared receiver tube 38kHz Modulation frequency
    Reading distance >3m
    Transmission baud rate 1200bps
    Data communication bias 35°
    Working currency ≤30mA
    Flashlight Powerful torch 1W Strong light flashlight for use in dark environments.
    Environment Operating temperature 0℃~45℃
    Storage temperature -10℃~ +45℃
    Working humidity 5% - 95% ( No condensation )
    Standard Type C USB charging cable
    Electronic manual
    Options 5V/2A & 5V/1A two-way separate output high-quality car charger (the indoor mobile phone charger can be used to charge the mobile phone and the back clip at the same time, the outdoor car can be charged, the car charger can also charge the tablet.)
    Back clip lanyard
    AC charger
    Phillips screwdriver
    Waist bag
