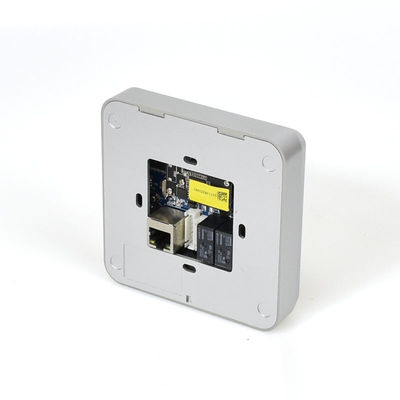

RD006 Access Control Device TCP/IP Weigand Interface QR Reader and Mifare Card

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: GB/T7722-2005
Model Number: RD006
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Normal craft paper and foam
Delivery Time: Within 5 working days after receiving the balance
Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 200PCS/Week
Barcode Scanner: 1D 2D QR Code Sealing: IP64
Interface: TCP IP Weigand IC Card: Mifare Card 4Bytes And 7Bytes
SDK: Software Development Kit Optional: Wifi Bluetooth
Highlight:

barcode reader scanner

,

handheld uhf rfid reader

Weigand 26/34 Network NFC Standalone RFID Door TCP IP QR Code Access Control System

The product has Wiegand 26/ 34 output when the product is used as a 2d code reader, which can make the traditional access control, lift control, yard products,own the 2d code access function immediately without changing the main controller.

And can access legally when it must comply with the rules of the 2d code so that the traditional access control, lift control and yard products have a real CPU system security level at once and reduce system costs greatly.



Product Features:

1. Single-door access control + 2d code scanner engine + the second generation ID card reader

Three in one card products. Make site installation and maintenance become simple with lower cost.

2. Wiegand 26/ 34 output

When the product is used as a 2d code reader, which can make the traditional access control, ladder control, yard products,own the 2d code access function immediately without changing the main controller.

3. 2-channel relay output

In addition to 1 channel to control the door lock, other 1 channel to control the door opener, lights, players, valves and so on.

4. Voice amplifier and speakers

The network control play nearly 150 voices that can be customized.

5. Off Line to Open Door

Meet the agreed rules of the encrypted 2d code, in the case of no network, you can open the door or barrier directly.

The agreement rule mainly includes:

1) The effective start time and end time of the 2d code;

2) The effective number of the 2d code, the 2d code can not be used any more if exceeds the usage times;

3) Device MAC matched or project number building number matched, a 2d code can contain one or more device numbers and be valid on multiple devices;

4) 2d code encryption keys can be modified without leaving any back door Or loopholes to ensure 2d code security.

6. Network IP parameters, lock delay, Wiegand 26/34

Can be set directly through the 2d code to make on-site debugging easier.

7. Equipment capacity

Card 35,000 pieces, record 50,000 pieces, 2d code times 100,000, records and 2d code times are automatically looped over capacity.

8. Data memory and the ferroelectric memory

Even if the device suddenly power-down, it will not lose the stored data to ensure data safe and reliable.

9. Multi Card Reader

Identify M1 card, second-generation ID card, CPU card, UltraLight, SR176, SRIX4K card number.

10. RJ45 10 / 100M TCP / IP transmission,WIFI transmission or mobile phone Bluetooth transmission,Supports TCP/IP remote IAP upgrade.

11. Built-in dual hardware anti-crash watchdog

Even if the chip operation appear abnormalities, it can be restored in time, which does not affect the use.

12. Docking DEMO Language: JAVA, C#, C++, etc



Product Description

Weigand 26/34 Network NFC Standalone RFID Door TCP IP QR Code Access Control System



QR Code Access Control Devices Parameters:

Image Sensor 752X480
Light Source White LED
Symbologies 2D: PDF417, QR CODE, DATA MATRIX, Support reading screen and printed code
1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc.
Reading Distance 10-55mm
Scan Angle 360° Full Angle
Power Input 9-18VDC
Working Current < 600mA
Can read like ISO14443Aor ISO14443B card serial number Such as second-generation ID card, FM1208 CPU card, M1 card (Mifare S50, Mifare S70 IC card), SRIX4K, etc.
Barcode or 2D code input Wiegand 26/ 34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules
Communication Interface RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth
Communication Protocol Support TCP / UDP / HTTP
Voice output comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice
Device input 12V DC power input, 1 line gate input, 1 line exit button input, 1 line alarm input
Equipment output 2 way 250V/5A relay output, 1 way unlock, 1 way expansion can control door opener, light, water valve, etc.
Wiegand output Wiegand 26/34 output
Installation size

RD006: 105mm * 105mm * 25mm (L*W*H)

RD007: 152mm * 85mm * 35mm(L*W*H)
