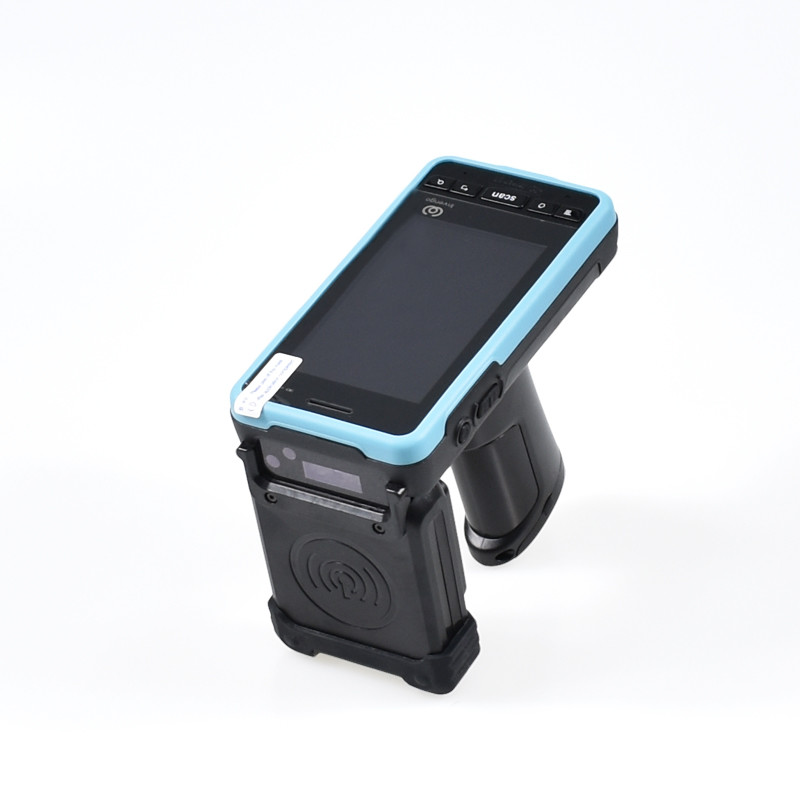

Waterproof Outdoor Handheld RFID Reader Wireless Android 6.0 With Barcode Scanning

Basic Information
Place of Origin: China
Brand Name: SCANMAX
Certification: GB/T7722-2005
Model Number: SM2910-A
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Normal craft paper and foam
Delivery Time: Within 5 working days after receiving the balance
Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 200PCS/Week
Processor: Dual-core 1.45 GHz Operating System: Android 6.0
Operating Frequency: 860MHz ~ 960MHz Memory: 2GB RAM / 16GB ROM
WLAN: IEEE 802.11 A / B / G / N Reading Distance: 0m ~ 6m (depending On The Label And Working Environment)
Barcode: 1D Laser Or 2D Barcode Scanning Handle Battery: Lithium-ion Battery 3.7V 4,400mAh (rechargeable)
High Light:

barcode reader scanner


handheld uhf rfid reader

The SM2910-A long range handheld RFID reader brings a new level of efficiency and accuracy to inventory management, order fulfilment, cross-docking, and more. And the large touchscreen and Android OS deliver an intuitive and flexible platform for your RFID application needs today and tomorrow.


UHF Handheld RFID Reader Key Features


1. Lightweight, Ergonomic, and Rugged


A lightweight and ergonomic design makes the SM2910-A RFID reader comfortable to use all day long while the semi-rugged construction helps protect against drops and falls.


2. Super Configuration


Quad-core 1.45GHz processor, 2GB RAM RAM / 16GB ROM, 4G full Netcom network (data), Wi-Fi, Bluetooth, GPS.


3. Professional UHF RFID Reading


SM2910-A RFID reader provides perfect performance in UHF reading. Supporting protocols of GEN2, ISO / IEC 18000-6C, 18000-6B. It can read RFID tags with high accuracy and speed in asset tracking, apparel inventory management and more.



multi functions of sm2910-a handheld rfid reader


UHF Handheld RFID Reader Parameters


Performance Parameter
Processor: Dual-core 1.45 GHz Humidity: 95%, non-condensing
Operating system: Android 6.0
Display: 4" WVGA TFT BlanView LCD, 480×800, with backlight, capacitive touch screen
Memory: 2GB RAM / 16GB ROM  Weight: 259.5 g (PDA only, no battery)
Operating temperature: -20 ° C ~ 60 ° C Storage temperature: -30 ° C ~ 70 ° C
Anti-fall: 1.5 m high drop to the concrete floor Waterproof: IP65
Physical Parameter
Audio: handset, speaker, headphone jack, microphone I/O Port: USB 2.0 client, OTG
Expansion slot: 1 Micro SD slot (SDHC), 1 SIM slot Notification: Vibrator and LED display, speaker
Dimensions: 145 × 75 × 129mm (length × width × height)
Main battery: polymer lithium ion 3.7V 2, 260mAh (rechargeable)
Backup battery: no
Power adapter: input AC110V ~ 240V / output DC 5V 2A
Network and wireless connection
WLAN: IEEE 802.11 a / b / g / n Standard Bluetooth: Bluetooth Class II, V2.1 + EDR
Communication standard: 4G full netcom network (data), wifi, bluetooth GPS : Built-in antenna
Barcode scanning and camera
Barcode: 1D laser or 2D barcode scanning Camera: CMOS, 5 megapixel, auto focus and flash function
Operating frequency: 860MHz ~ 960MHz
Reading distance: 0m ~ 6m (depending on the label and working environment)
Write distance: 0m ~ 3m (depending on the label and working environment)
Support Standard: GEN2, ISO / IEC 18000-6C, 18000-6B*
Anti-collision: Support    RF output: 1W EIRP
Support standards: NFC, ISO15693, MIFARE, ISO14443A / B*
Reading distance: 0cm ~ 10cm (internal), depending on the label
Handle: UHF / HF
Handle Battery: Lithium-ion battery 3.7V 4,400mAh (rechargeable)
Hot Contrast
2910-A 2910
Android 6.0 Android 4.2.2
4G Full network 3G Full network


super configuration of rfid reader
