RD5100 Parking Lot Mobile Payment Machine Long Distance Scanning Device 10 Mil Resolution

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAKINDA
Certification: CE, RoHS
Model Number: RD5100
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
Delivery Time: within 5 working days after receiving the balance
Payment Terms: Western Union, T/T, paypal
Supply Ability: 1000 PCS/ week
Product Name: Parking Lot Mobile Payment Machine Image Sensor: 752 X 480 CMOS
Interface: RS-232( 9.6~115.2Kbps) /(HID-KBW、 HID-POS) Scan Window: 45mm*30mm
Resolution: 10mil Size: 164 X 164 X 66mm
Humidity: 5% - 95% ( Non-condensing ) Products Status: Stock
High Light:

door access card system


gate access control

After the Shenzhen North Railway Station parking lot connected to “WeChat Non-inductive Payment”, the user can enjoy the “Non-inductive Payment” experience. The vehicle passing time will also be shortened to about 2 seconds from 20 seconds.
Rakinda launches a new parking lot payment devices, reading screen QR barcode quickly, its reading distance is about 20-80cm according to arm length and car width. And it has two interfaces, one is RS232 or USB, the other one is TCP/ IP.
1. Armed with Rakinda’ s fifth-generation of UIMG technology, the scanner excels at reading
on-screen barcodes even when the screen is covered with the protective film or set to its lowest brightness level.
2. In standby/sleep mode, the device can start up swiftly and read quickly when close to scanning window.
3. The scanner uses a durable metal housing, the reading distance is about 20~80cm.
4. The advanced technology incorporated in the scanner helps reduce the power consumption and prolong the service life of the device.

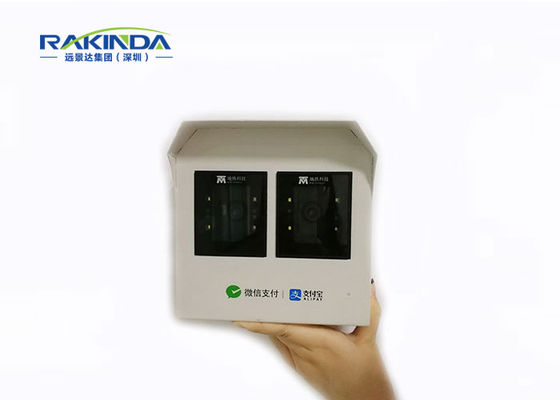

RD5100 Parking Lot Mobile Payment Machine Long Distance Scanning Device 10 Mil Resolution 0
RD5100 Parking Lot Mobile Payment Machine Long Distance Scanning Device 10 Mil Resolution 1

Performance Processor Output: DC5V , 0.5A ; Input: AC100~240V , 50~60Hz
Image Sensor 752 x 480 CMOS
Interface RS-232( 9.6~115.2Kbps) /(HID-KBW, HID-POS)
Symbologies 2D QR Code
Scan Mode Sense Mode
Resolution 10mil
Light Source White LED
Scan Window 45mm*30mm
PCS ≥30%
FOV Diagonal:85°, Horizontal:63.7°, Vertical:70°
Mechanical/ Electrical Power Consumption 1.75W
Environmental Notification Beep
Dimensions (L x W x H) 164 x 164 x 66mm
Reading Distance 20cm~80cm
Operating Temperature ~20℃ - +60℃
Storage Temperature ~20℃ - +60℃
Humidity 5%-95%( non-condensing)
Ambient Light 0 ~100,000 LUX
Certifications   FCC Part15 Class B, CE EMC Class B
Accessories Cable RS-232 RS-232 Cable Used to connect the RD5100 to a host device.
USB USB Cable Used to connect the RD5100 to a host device.
Power Adaptor   DC5V adapter to power the LV3000U with RS-232 cable.
  Output: DC5V , 0.5A ; Input: AC100~240V , 50~60Hz

Rakinda has rich experience and products in the field of barcode recognition. At present, the barcode scanning module is widely used in access gates, 2d code access control, self-service ordering machines, and other self-service terminals, welcome to consult.
