Laser Qr Code Scanner Module LV3396 Lightweight Fit Into Space Constrained Equipment

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE FCC Rohs
Model Number: LV3396
Minimum Order Quantity: 1pc
Packaging Details: carton package
Delivery Time: 1-5 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 pcs per month
Aiming: 650nm Laser Diode Illumination: 612nm-624nm Red LED
Image Sensor: 752×480 CMOS Resolution: 3mil
Interface: TTL-232, USB Weight: 6.5g
High Light:

2d barcode module

,

barcode engine

LV3396 from Rakinda has is an excellent laser scanner module with highly visible laser aimer and outstanding Power Efficiency. The scan engine provides a laser-generated crosshair aiming pattern that is clear and bright even in bright sunlight, ensuring first-time accurate aim.The advanced high technology incorporated in the scan engine helps reduce the power consumption and prolong the service life of the device.



Product Features:
1. Outstanding Power Efficiency
The advanced technology incorporated in the scan engine helps reduce the power consumption and prolong the service life of the device.

2. Highly Visible Laser Aiming
The scan engine provides a laser-generated crosshair aiming pattern that is clear and bright even in bright sunlight, ensuring first time accurate aim.

3. Two-In-One Design
Seamless integration of image sensor and decoder board makes the scan engine small, lightweight and easy to fit into even the most space-constrained equipment. (Seamlessly compatible with LV3096)



Typical Application:
Ticket validator, handheld scanner; parking meter; PDA; micro Kiosk; price checker, etc.



LV3396 Scan Engine Datasheet    LV3396_Datesheet-EN.pdf

Image Sensor 752×480 CMOS
Symbologies

2D  PDF417, Data Matrix (ECC200, ECC000, 050, 080, 100, 140),
QR Code, Chinese Sensible Code

1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,
Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93,
UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11,
Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.

Typical Depth of Field

EAN-13 60mm-290mm (13mil)

Code 39 55mm-165mm (5mil)

PDF 417 55mm-135mm (6.7mil)

Data Matrix 55mm-130mm (10mil)

QR Code 45mm-175mm (15mil)



Rated Power Consumption 468mW (typical)
Operating Voltage 3.3VDC±5%
Current @3.3 VDC

Operating 142mA (typical), 204mA (max.)

Standby 10.2mA

Sleep <100uA

Dimensions 21.3(W)×15.5(D)×11.6(H)mm
Operating Temperature -20℃ to 55℃ (-4°F to 131°F)
Storage Temperature -40℃ to 70℃ (-40°F to 158°F)
EVK Software development board, equipped with a trigger
button, beeper and RS-232 & USB interfaces.

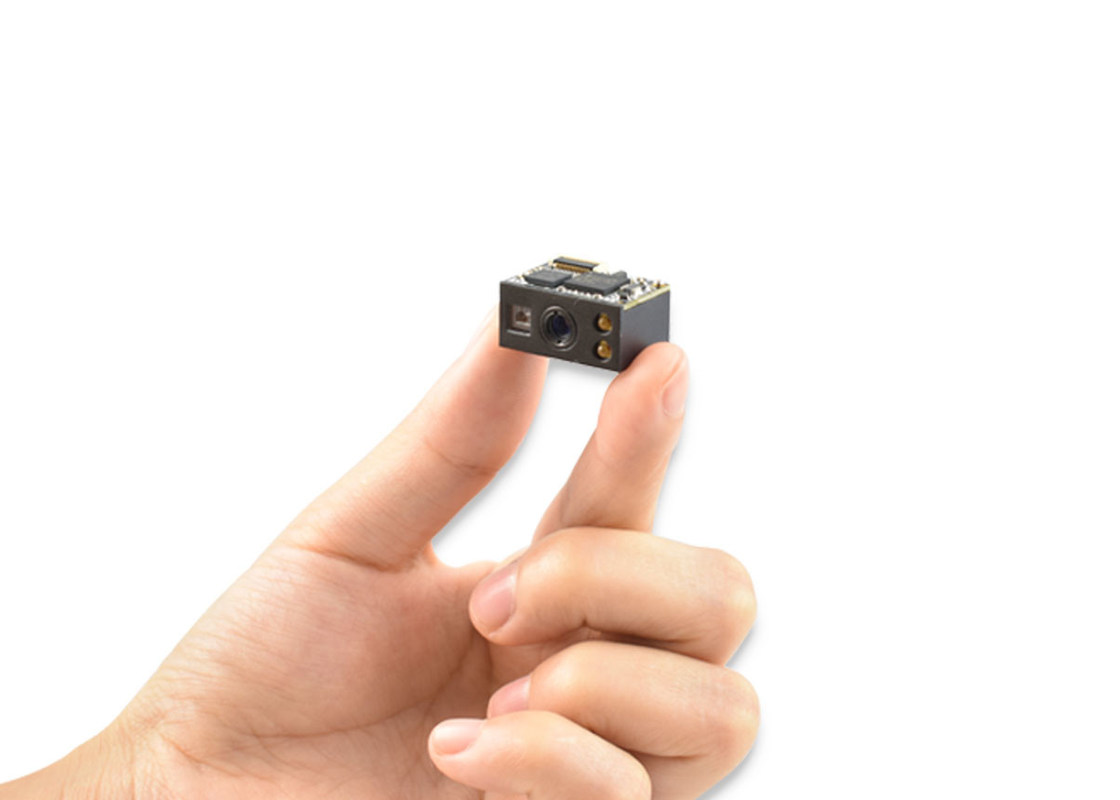

Laser Qr Code Scanner Module LV3396 Lightweight Fit Into Space Constrained Equipment 0

FAQ
Q1: Can I get some samples? Are they free?
A1: We support 1pc sample order. Samples should be paid.
Q2: Can I get extra cables for the scanners?
A2: Yes you can. We will provide according to your request.
Q3: How can I buy?
A3: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q4: What is your payment method?
A4: We accept online credit card, TT, Paypal, Western Union.
Q5: Can I visit your factory:
A5: Yes, you are warmly welcome.
Q6: How long is your warranty time:
A6: 1 Year.
Q7: Where can we download the user manual of the scanners?
A7: We will send by email after you get samples.
Q8: What's the lead time?
A8: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q9: Can you provide OEM service?
A9: Yes. We need further discuss about details.
Q10: How do you ship the scanners usually?
A10: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
