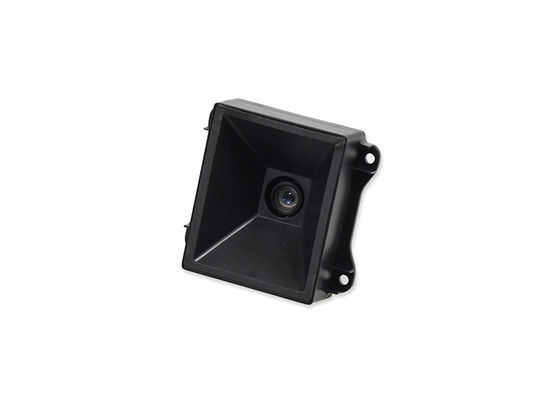

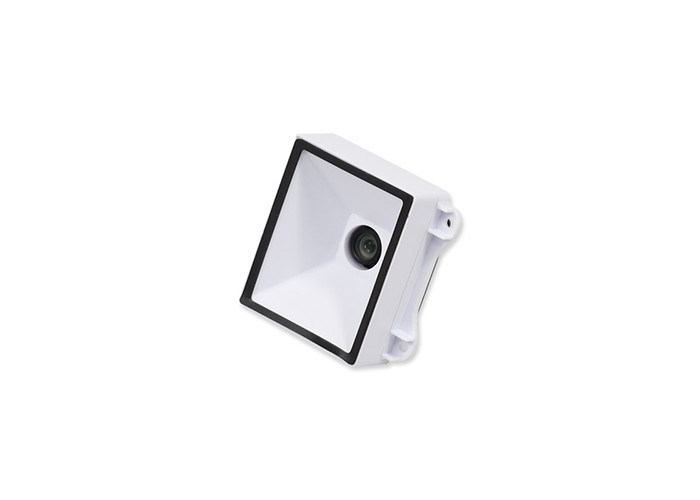

Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage

Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage

    • Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage
    • Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage
    • Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage
    • Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage
    • Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage
  • Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Rakinda
    Certification: CE FCC ROHS
    Model Number: LV4200-PT OEM Scan Engine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: package in carton;
    Delivery Time: 3-10 working days
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 1000 piece for a week
    Contact Now
    Detailed Product Description
    Name: Auto Code Scanner Image Sensor: 752×480 CMOS
    MOQ: 1 Piece Delivery Time: 3-10 Working Days
    Usage: Turnstile Module: LV4200-PT Qr Code Reader

    Sizable Scan Window Scanner with Good Performance in Scanning Mobile Phone Screen

    Introduction:
    This compact, lightweight engine fits easily into even the most space-constrained equipment such as data collectors, meter readers, ticket validators and PDAs.

    The LV4200-PT OEM scan engines, armed with the Rakinda patented, a computerized image recognition system, bring about a new era of 2D barcode scan engines.

    The LV4200-PT 2D barcode decoder chip ingeniously blends technology and advanced chip design & manufacturing, which significantly simplifies application design and delivers superior performance and solid reliability with low power consumption.

    The LV4200-PT supports all mainstream 1D and standard 2D barcode symbologies (e.g., PDF417, QR Code

    M1/M2/Micro and Data Matrix) as well as GS1-DataBarTM(RSS) (Limited/Stacked/Expanded versions).

    It can read barcodes on virtually any medium - paper, plastic card, mobile phones and LCD displays.

    LV4200_Datasheet_en.pdf



    Features:
    Application Scenarios (as an accessory) Self-service cabinets used in e-commerce, express delivery services and smart homes; ATMs; kiosks; queue machines; lottery machines; certificate makers.

    1. Technology
    Armed with LongView ’s fifth-generation of technology, the scan engine can decode even poor quality barcodes with ease.

    2. Snappy On-Screen Barcode Capture
    The LV4200-PT can capture on -screen barcodes effortlessly even when the screen is covered with protective film or set to its lowest brightness level.
    3. Multi-Interface
    The LV4200-PT supports USB and TTL - 232 interfaces to meet diverse customer needs.

    4. Two-In-One Design
    Seamless integration of image sensor and decoder board makes the scan engine small, lightweight and easy for integration.

    5. Low Power Consumption
    The advanced technology incorporated in the scan engine promises low power consumption and prolonged service life.

    Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage



    Performance Image Sensor   752×480 CMOS

      Light Source   White LED

      Symbologies 2D PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000,
          050, 080, 100, 140)

        1D Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN,
          UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5,
          Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11,
          Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited,
          RSS-Expand)

      Resolution   ≥5mil

      Typical Depth of Field EAN-13 10mm-55mm (13mil)

        PDF 417 15mm-35mm (6.67mil)

        Data Matrix 15mm-40mm (10mil)
          Operating 160mA

        Sleep 12mA

      Dimensions   65.1(D)×61.1(W)×43.6(H)mm

      Weight   41.5g

    EnvironmentaL Operating Temperature   -20℃~+60℃ (-4°F~140°F)

      Storage Temperature   -40℃~+80℃(-40°F~176°F)

      Humidity   5%~95% (non-condensing)

      Ambient Light   0~100000lux (natural light)

    Accessories USB Cable   Used to connect the LV 4200 to a host device.



    With over 18 years of experience in barcode scan technology industry area, Rakinda has achieved some important success by enormous effort. The scanner products are certified by CE, FCC and RoHS etc.
    Rakinda sticks to "born to challenge" to deliver best products and services to our customers. Rakinda does the best to be your reliable business partner.



    FAQ

    Q1: Can I get some samples? Are they free?

    A1: We support 1pc sample order. Samples should be paid.

    Q2: Can I get extra cables for the scanners?

    A2: Yes you can. We will provide according to your request.

    Q3: What is your payment method?

    A3: We accept online credit card, TT, Paypal, Western Union.

    Q4: Can I visit your factory:

    A4: Yes, you are warmly welcome.

    Q5: How long is your warranty time:

    A5: 1 Year.

    Q6: Where can we download the user manual of the scanners?

    A6: We will send by email after you get samples.

    Q7: What's the lead time?

    A7: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.

    Q8: Can you provide OEM service?

    A8: Yes. We need further discuss about details.
