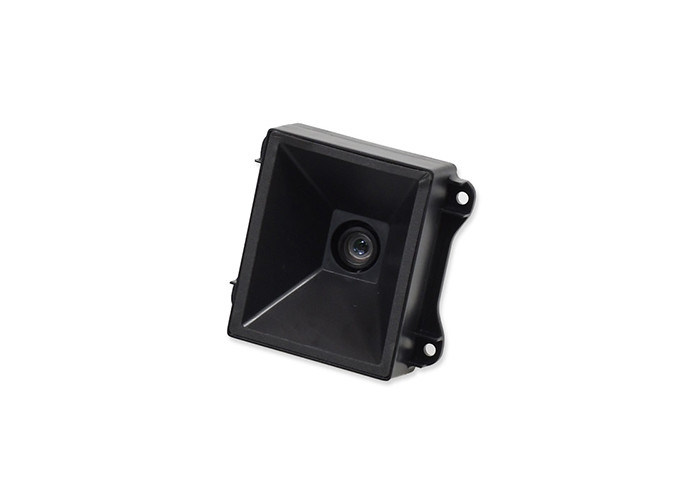

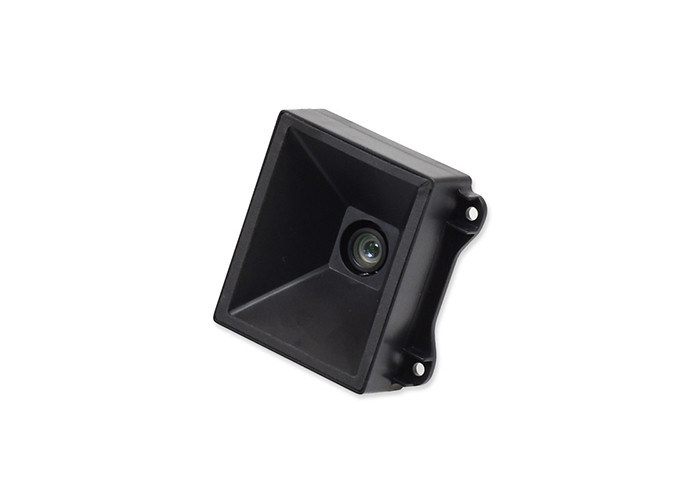

CMOS Image Sensor Lightweight Barcode Reader Module For Kiosk / Turnstile

CMOS Image Sensor Lightweight Barcode Reader Module For Kiosk / Turnstile

    • CMOS Image Sensor Lightweight Barcode Reader Module For Kiosk / Turnstile
    • CMOS Image Sensor Lightweight Barcode Reader Module For Kiosk / Turnstile
    • CMOS Image Sensor Lightweight Barcode Reader Module For Kiosk / Turnstile
    • CMOS Image Sensor Lightweight Barcode Reader Module For Kiosk / Turnstile
    • CMOS Image Sensor Lightweight Barcode Reader Module For Kiosk / Turnstile
  • CMOS Image Sensor Lightweight Barcode Reader Module For Kiosk / Turnstile

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Rakinda
    Certification: CE FCC ROHS
    Model Number: LV4200-PT barcode scanner module

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: package in carton;
    Delivery Time: 3-10 working days
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 1000 piece for a week
    Contact Now
    Detailed Product Description
    Name: Auto Code Scanner Image Sensor: 752×480 CMOS
    MOQ: 1 Piece Delivery Time: 3-10 Working Days
    Usage: Turnstile Module: LV4200-PT Qr Code Reader

    Introduction:
    This compact, lightweight engine fits easily into even the most space-constrained equipment such as data collectors, meter readers, ticket validators and PDAs.

    The LV4200-PT OEM scan engines, armed with the Rakinda patented, a computerized image recognition system, bring about a new era of 2D barcode scan engines.

    The LV4200-PT 2D barcode decoder chip ingeniously blends technology and advanced chip design & manufacturing, which significantly simplifies application design and delivers superior performance and solid reliability with low power consumption.

    The LV4200-PT supports all mainstream 1D and standard 2D barcode symbologies (e.g., PDF417, QR Code

    M1/M2/Micro and Data Matrix) as well as GS1-DataBarTM(RSS) (Limited/Stacked/Expanded versions).

    It can read barcodes on virtually any medium - paper, plastic card, mobile phones and LCD displays.

    LV4200_Datasheet_en.pdf

    Performance Image Sensor   752×480 CMOS

      Light Source   White LED

      Symbologies 2D PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000,
          050, 080, 100, 140)

        1D Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN,
          UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5,
          Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11,
          Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited,
          RSS-Expand)

      Resolution   ≥5mil

      Typical Depth of Field EAN-13 10mm-55mm (13mil)

        PDF 417 15mm-35mm (6.67mil)

        Data Matrix 15mm-40mm (10mil)

        QR Code 10mm-50mm (15mil)

      Symbol Contrast   ≥30% reflectance difference

      Scan Angle**   Roll: 360°, Pitch: ±40°, Skew: ±40°

      Field of View   Horizontal 80°, Vertical 56°

    Mechanical/ Interface   TTL-232
    Electrical
    Operating Voltage   3.0~5.5VDC

      Current@5VDC Operating 160mA

        Sleep 12mA

      Dimensions   65.1(D)×61.1(W)×43.6(H)mm

      Weight   41.5g

    EnvironmentaL Operating Temperature   -20℃~+60℃ (-4°F~140°F)

      Storage Temperature   -40℃~+80℃(-40°F~176°F)

      Humidity   5%~95% (non-condensing)

      Ambient Light   0~100000lux (natural light)

    Accessories USB Cable   Used to connect the LV 4200 to a host device.



    Features:
    Application Scenarios (as an accessory) Self-service cabinets used in e-commerce, express delivery services and smart homes; ATMs; kiosks; queue machines; lottery machines; certificate makers.

    1. Technology
    Armed with LongView ’s fifth-generation of technology, the scan engine can decode even poor quality barcodes with ease.

    2. Snappy On-Screen Barcode Capture
    The LV4200-PT can capture on -screen barcodes effortlessly even when the screen is covered with protective film or set to its lowest brightness level.
    3. Multi-Interface
    The LV4200-PT supports USB and TTL - 232 interfaces to meet diverse customer needs.

    4. Two-In-One Design
    Seamless integration of image sensor and decoder board makes the scan engine small, lightweight and easy for integration.

    5. Low Power Consumption
    The advanced technology incorporated in the scan engine promises low power consumption and prolonged service life.

    CMOS Image Sensor Lightweight Barcode Reader Module For Kiosk / Turnstile
