| Place of Origin: | China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE .FCC.ROHS |
| Model Number: | RD006 |
| Minimum Order Quantity: | 1 PC |
| Price: | negotiation |
| Packaging Details: | packing in carton |
| Delivery Time: | 2~3 work days |
| Supply Ability: | 200 pcs per week |
| Keyword: | QR Code Smart Door Lock | Weight: | 0.38 KG |
|---|---|---|---|
| Unlocking Method: | Qr Code And Ic Card | Interface: | HTTP TCP IP RJ45 Weigand Output Etc |
| Optioanl: | WIFI Bluetooth POE | ||
| High Light: | POE QR Code Reader Access Control,RFID QR Code Reader Access Control,QR RFID Reader Access Control |
||

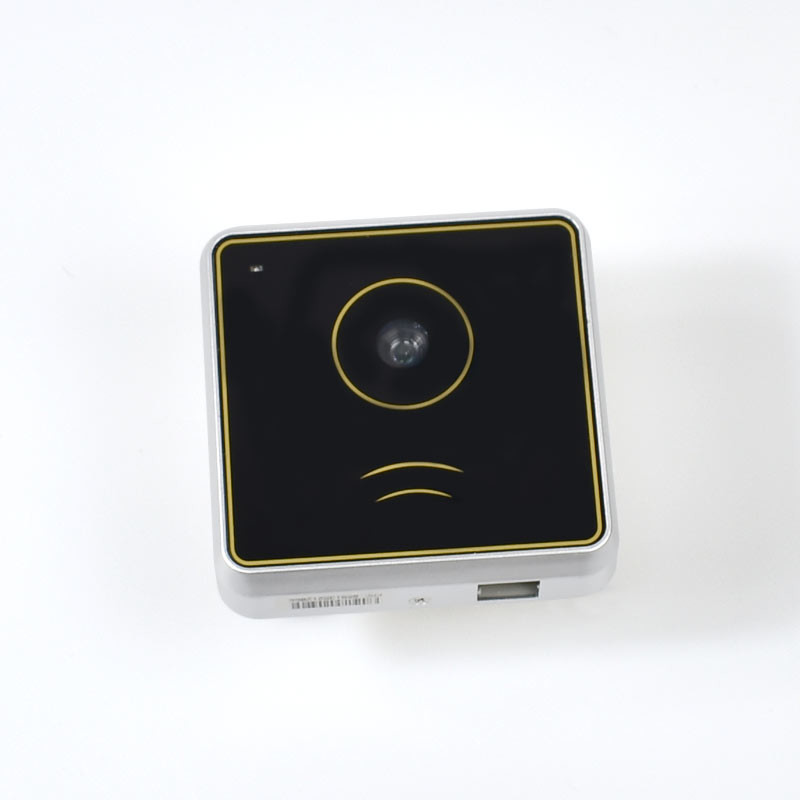

Smart QR code access control with RFID IC NFC card reader WIFI POE bluetooth intelligent door lock
Bluetooth POE QR Code Reader Access Control With RFID IC NFC Card
Product Parameters:
| 2D Code Engine Component Parameters | ||
| Image Sensor | 752X480 CMOS | |
| Light Source | White LED | |
| Symbologies | 2D: PDF417, QR CODE, DATA MATRIX, Support reading screen and printed code | |
| 1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc. | ||
| Reading Distance | 10-55mm | |
| Scan Angle | 360° Full Angle | |
| Input and Output Parameters | ||
| Power Input | 9-18VDC | |
| Working Current | < 600mA | |
| Can read like ISO14443Aor ISO14443B card serial number | Such as second-generation ID card, FM1208 CPU card, M1 card (Mifare S50, Mifare S70 IC card), SRIX4K, etc. | |
| Barcode or 2D code input | Wiegand 26/ 34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules | |
| Communication Interface | RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth | |
| Communication Protocol | Support TCP / UDP / HTTP | |
| Voice output | comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice | |
| Device input | 12V DC power input, 1 line gate input, 1 line exit button input, 1 line alarm input | |
| Equipment output | 2 way 250V/5A relay output, 1 way unlock, 1 way expansion can control door opener, light, water valve, etc. | |
| Wiegand output | Wiegand 26/34 output | |
| Dimensions | ||
| Installation size | 152mm * 85mm * 35mm (L*W*H), Compatible with standard 86 box | |

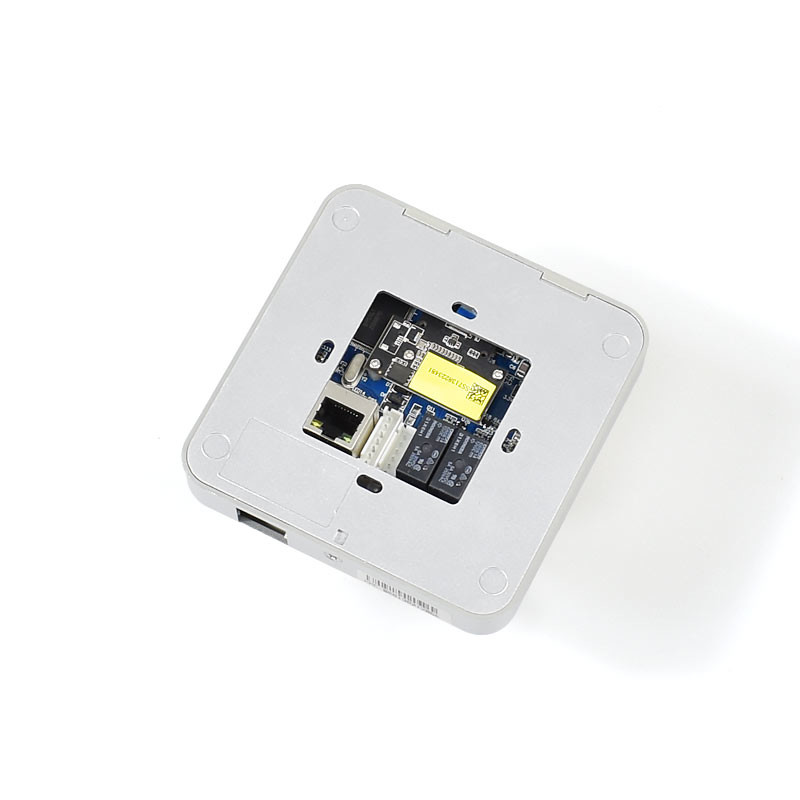

Interface ID
| Interface ID | Description | Interface ID | Description | |
| WGD1 | Wiegand D1 output (brown) | —— | —— | |
| WGD0 | Wiegand D0 output (yellow) | 2NC | Normally closed end extension (brown) | |
| IN1 | Custom input (blue) | 2NO | Normal start extension (yellow) | |
| SEN | Door sensor input (white) | 2C | Public end extension (blue) | |
| BTN | Exit button input (green) | 1NC | Control lock normally closed end (white) | |
| 12V | Power input (red) | 1NO | Normally open end of control lock (green) | |
| GND | Power ground (black) | 1C | Control lock public (red) |
