| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SCANMAX |
| Model Number: | RD2910-A |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Normal craft paper and foam |
| Delivery Time: | within 5 working days after receiving the balance |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 PCS/ week |
| Processor: | 4-core Cortex-A53, 1.45GHz Operating System: Android 6. 0 | Storage: | 2GB RAM / 16GB ROM Internal Expansion: Maximum Support 32GB Micro SD / TF Card Expansion |
|---|---|---|---|
| Operating Frequency: | 840MHz ~ 845MHz 920MHz ~ 925MHz | RF Output: | 0dBm ~ 30dBm, Step 3dB 1W E IRP |
| Dimensions: | 145(L) × 75(W) × 129mm(H) | Audio: | Earpiece, Speaker, Headphone Jack, Microphone |
| Weight: | 259.5 G (PDA Only, Without Battery) | Operating Temperature: | -20 ℃ ~ 60 ℃ Storage Temperature: -3 0 ℃ ~ 70 ℃ Humidity: 95%, Non-condensing |
| Highlight: | barcode reader scanner,handheld uhf rfid reader |
||

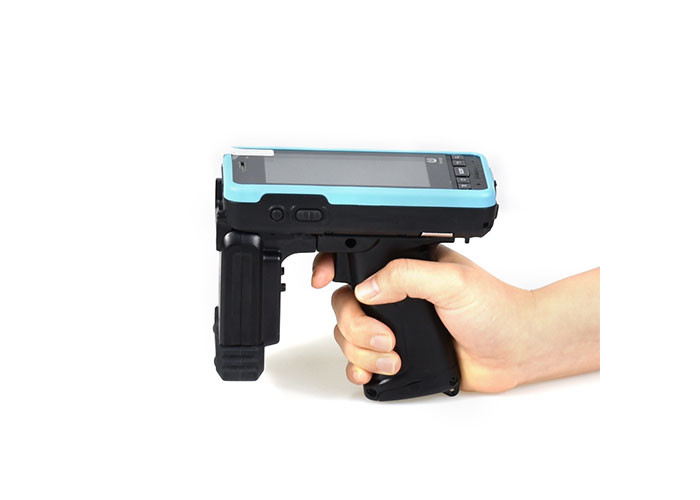

RD2910-A is a new portable product developed by Rakinda. in response to the needs of the Internet of Things. It is a smart highly integrated functionally RFID reader with high processing speed, good portability, and adaptability to various application places. The reader has functions such as UHF-RFID, 4G full Netcom network (data), Wi-Fi, Bluetooth, and GPS. At the same time, it can be equipped optionally with barcode scanner modules and camera modules.
Super speed reading
UHF RFID UHF Class 1 EPC2 Gen2, ISO / ISO18000-6C, ISO18000-6B. Powerful multi-tag reading function.
Super configuration
Quad-core 1.45GHz processor, 2GB RAM RAM / 16GB ROM, 4G full Netcom network (data), Wi-Fi, Bluetooth, GPS.
Compact design
Using the latest environmentally friendly materials injection, light-weight.
Performance parameters
Processor: 4-core Cortex-A53, 1.45GHz Operating System: Android 6. 0
Storage: 2GB RAM / 16GB ROM Internal expansion: maximum support 32GB Micro SD / TF card expansion
Display: 4-inch WVGA TFT B lanView LCD, 480 × 800, with backlight, capacitive touch screen
Weight: 259.5 g (PDA only, without battery)
Operating temperature: -20 ℃ ~ 60 ℃ Storage temperature: -3 0 ℃ ~ 70 ℃ Humidity: 95%, non-condensing
Fall-proof: 1.5m drop to the cement floor dust and water: IP65
Physical parameters
Audio: earpiece, speaker, headphone jack, microphone
External port: Mini USB Support OTG function
Expansion Slots: 1 Micro SD Slot (SDHC), 1 SIM Slot
Notifications: Vibrator and LED Display, Speakers
Dimensions: 145(L) × 75(W) × 129mm(H)
Battery powered
Main Battery: Polymer Li-Ion 3.7V 2,200mAh (Rechargeable)
Handle Battery: Lithium Ion 3.7V 5,200mAh (Rechargeable)
Power Adapter: Input AC110V ~ 240V / Output DC 5V 2A
Network and wireless connection
WWAN :( China) 4G Netcom Network (Data)
WLAN: IEEE 802.11 a / b / g / n 2. 4GHz and 5GHz dual band
Bluetooth: Bluetooth V4.0
GPS positioning: integrated GPS, support for A-GPS, Beidou, GLONASS (system reserved support)
Barcode and camera (optional)
Barcode: One-dimensional or two-dimensional barcode
scanning camera: CMOS, 13 megapixel, autofocus and flash function
UHF RFID
Operating frequency: 840MHz ~ 845MHz 920MHz ~ 925MHz
Reading distance: 0m ~ 6m (depends on the label and working environment) Writing distance: 0m ~ 3m (depending on the label and the working environment)
RF output: 0dBm ~ 30dBm, step 3dB 1W E IRP
Support Standards: EPC Global UHF Class 1 Gen2 / ISO18000-6C, ISO18000-6B Anti-collision: Support
Accessories
Handle handle battery power adapter USB data cable CD-ROM
