| Place of Origin: | China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE Rohs |
| Model Number: | S1 |
| Minimum Order Quantity: | 1 PC |
| Price: | negotiation |
| Packaging Details: | new in box |
| Delivery Time: | 1-3 work days |
| Color: | Yellow | Size: | 146*73*9.3mm |
|---|---|---|---|
| Weight: | 288g | Drop Level: | 1.5m |
| Battery Capacity: | 2500mAh | Notice: | Android Standard Notice |
| High Light: | barcode reader scanner,handheld uhf rfid reader |
||

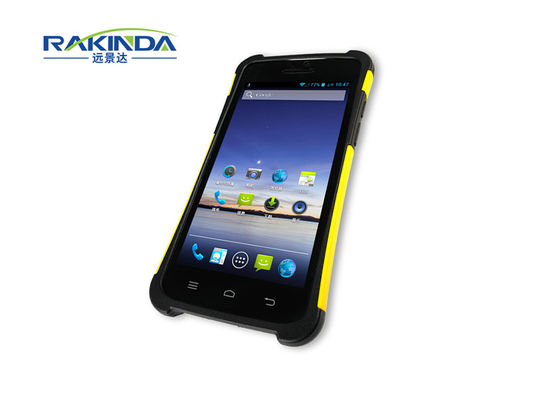

Yellow S1 Handheld PDA Scanner , wireless Android Portable 2d Barcode Scanner
| SPECIFICATION CHART | |
| Physical Characteristics | |
| Dimension | 146*73*9.3mm |
| Weight | 288g |
| screen | 5"HD(1280X720)screen |
| Audio | speaker, 2 microphones |
| Interfaces | micro USB support OTG |
| Performance | |
| CPU | Quad core 1.2GHz,dominant frequency |
| RAM+ROM | 1GB+8GB |
| Expansion | Supports up to 32 GB Micro SD card |
| Developing Environment | |
| Operating System | Android 4.2.2 |
| SDK | Rakinda Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| User Environment | |
| Operating Temperature | -25°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% - 95%RH (Non-condensing) |
| Sealing | IP65 |
| Drop Specification | Multiple 1.5m (at least 20 times) to the concrete across the operating temperature range |
| Communication | |
| WLAN | WiFi 802.11a/b/g/n(Dual-band 2.4GHz/5GHz) |
| Bluetooth | support bluetooth 3.0 |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
| NFC | |
| Frequency | 13.56MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 2-4cm |
| Camera | |
| Camera | 13MP autofocus camera with flash |
| Barcode Scanners (Optional) | |
| 2D Imager Scanner | Zebra SE4710/Honeywell N6603 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Codabar, Interleaved 2 of5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, DutchPostal (KIX), etc |
Shenzhen Rakinda as one of the leading suppliers in ioT ,oriented by clients demand is devoted to the development and innovation of intelligent firmware products and enjoys rich experience and resources in ioT and big data area , if you are interested in bar code scanner module , do not hesitate contact Rakinda
