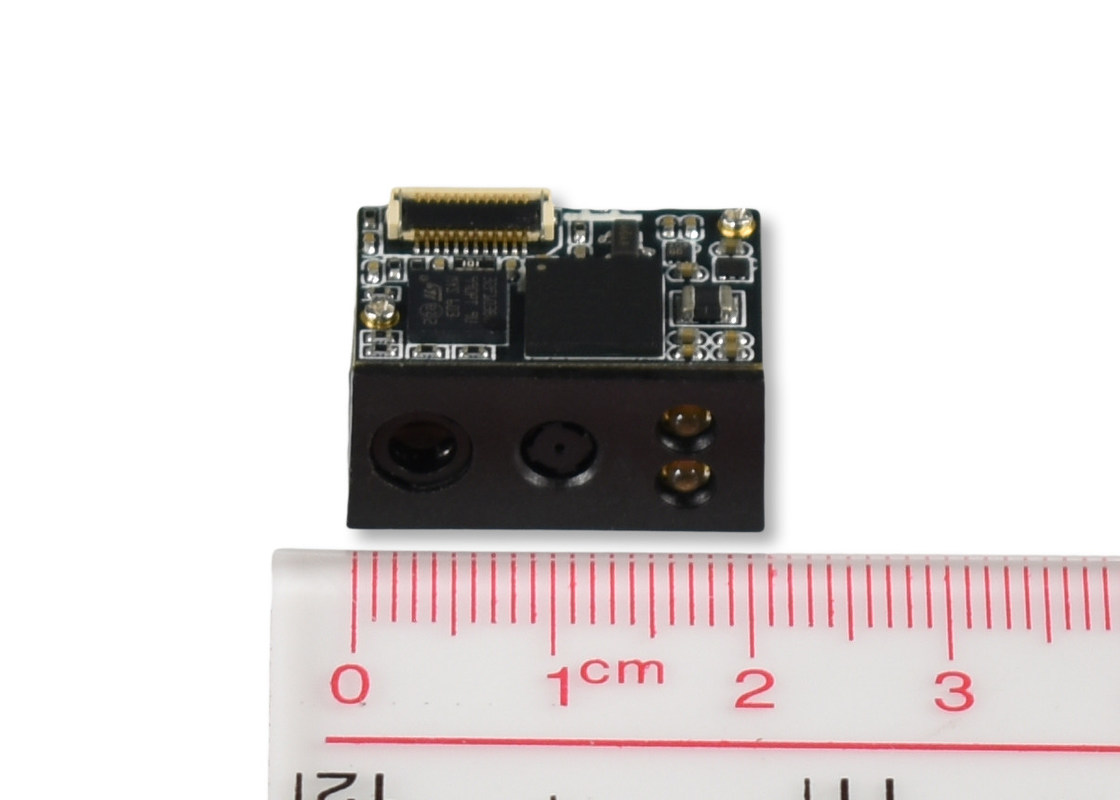

TTL 232 Interface 2D Barcode Scanner Module Embedded in Bluetooth Scanner

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE, FCC, Rohs
Model Number: LV3296
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: carton package
Delivery Time: 5-8 Working days
Payment Terms: Western Union, T/T, paypal
Supply Ability: 10000 pcs per month
Model: LV3296 OEM Barcode Reader Module Resolution: >= 4mil
Weight: 4g Warranty: One Year
Application: Embedded Type Interface: Ttl 232
High Light:

barcode scanning solutions


oem 2d barcode scanner module

TTL 232 Interface 2D Barcode Scanner Module Embedded in Bluetooth Scanner


Handheld bluetooth barcode scanner is widely used now. Due to its convenience and low cost, many shop keepers, logistics people, warehouse people now carry a bluetooth barcode scanner to do their job.

This requires a stable scan engine inside. LV3296 is a fit model for such application.

Though it is a common sense that when scanning 1D code, 1D/2D scanner is not very good at it comparing with 1D scanner. LV3296 model is especially promoted to scanning 1D codes well, especially small 1D code.

If you need to scan 1D/2D codes in bright environment, we have another model to work well. Please kindly contact us for details with your specific application requirement.


LV3296 Datasheet.pdf

LV3296 Scanner Datasheet:

Image Sensor 640*480 CMOS
Symbologies 2D and 1D codes
Resolution >= 4mil
Current at 3.3V DC 141mA operating
Dimensions 21.2mm*14mm*11.1m
Weight 4g
Operating Temperature -20 to 50 centi degrees
EVK software development board
Ambient Light 0-100,000 Lux
Humidity 5%-95%


Products where LV3296 Scanner Can be Used

TTL 232 Interface 2D Barcode Scanner Module Embedded in Bluetooth Scanner 0


Manufacturer Rakinda is established in 2000. Since then, we are devoted to the barcode scanning industry and we have been providing products and services for many fields. We provide a diverse product line. Pls kindly contact us for more details. Rakinda sticks to "born to challenge" to deliver best products and services to our customers. Rakinda does the best to be your reliable business partner. With over 17 years of experience in barcode scan technology industry area, Rakinda has achieved some important success by enormous effort. The scanner products are certified by CE, FCC and RoHS etc.



Q1: Can I get some samples? Are they free?

A1: We support 1pc sample order. Samples should be paid.

Q2: Can I get extra cables for the scanners?

A2: Yes you can. We will provide according to your request.

Q3: How can I buy?

A3: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.

Q4: What is your payment method?

A4: We accept online credit card, TT, Paypal, Western Union.

Q5: Can I visit your factory:

A5: Yes, you are warmly welcome.

Q6: How long is your warranty time:

A6: 1 Year.

Q7: Where can we download the user manual of the scanners?

A7: We will send by email after you get samples.

Q8: What's the lead time?

A8: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.

Q9: Can you provide OEM service?

A9: Yes. We need further discuss about details.

Q10: How do you ship the scanners usually?

A10: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
