| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE FCC ROHS |
| Model Number: | RD4100 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiation |
| Packaging Details: | package in carton; |
| Delivery Time: | 3-10 working days |
| Payment Terms: | Western Union, T/T, paypal |
| Supply Ability: | 1000 piece for a week |

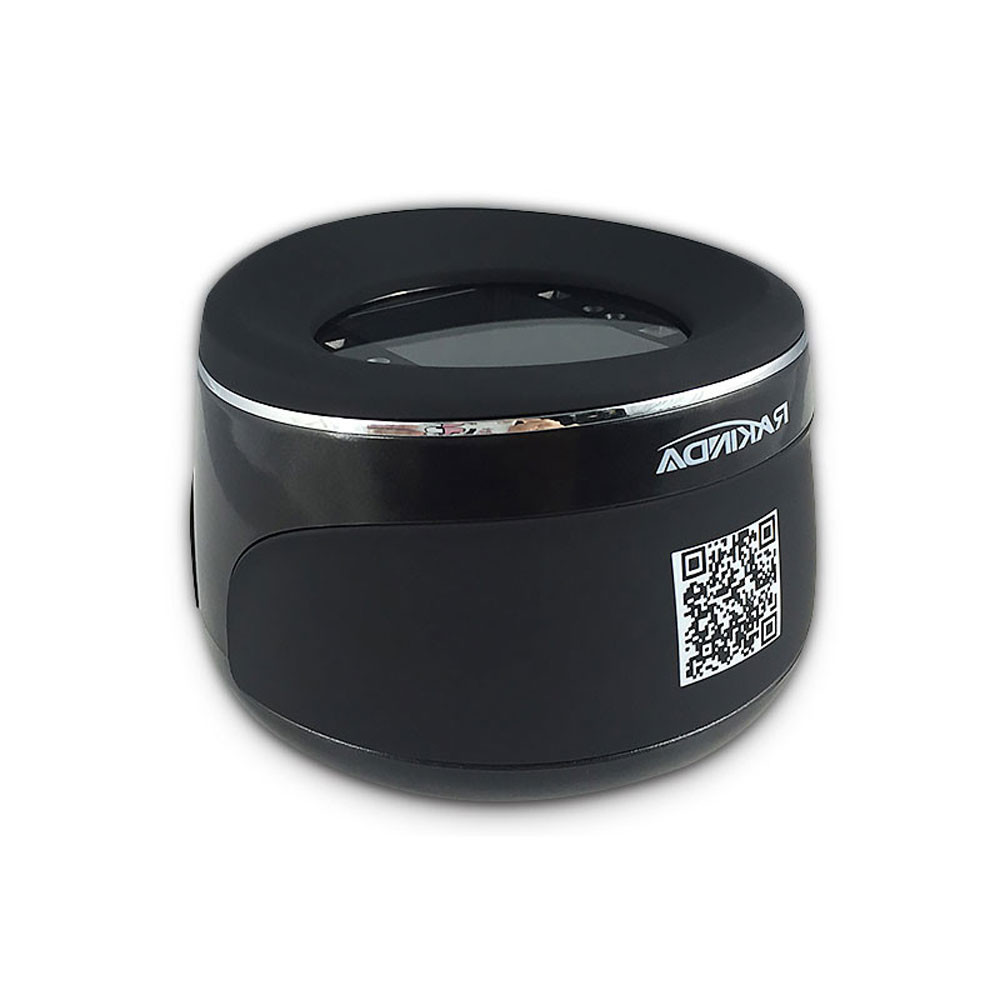

| Name: | 2D Barcode Scanner Module | Interface: | USB |
|---|---|---|---|
| Dimension: | 78.2L×67.2W×62Hmm | Weight: | 300g |
| Ambient Light: | 0 ~ 100,000 LUX | Processor: | IOTC 0370 CHIP |
| High Light: | 2d barcode module,oem 2d barcode scanner module |
||
1.Abnormal situation
Keep the scanner away from fire or heat sources. If there is unusual odor, overheating or smoke, immediately cut off the power and disconnect the power adapter. And contact your Rakinda Customer service center. Continued used in this case may result in fire or electric shock.
2. Drop damage
If the scanner is damaged due to drop from high place, immediately cut off the power and contact your dealer.
3. Mounting location
Do not place the scanner on unstable or uneven surfaces
Do not expose the scanner to humidity, dust or direct sunlight.
It boasts the following features:
1. Capable of reading 1D and 2D barcodes off mobile phones.
2. Capable of reading 1D and 2D barcodes printed on paper.
3. Delivers effortless, snappy and accurate reading of barcodes on various mobile phone LCD screens with different contrast ratios, colors and reflectances.
4. Simple configuration by scanning the programming barcodes provided in the user guide.
| Processor | IOTC 0370 CHIP |

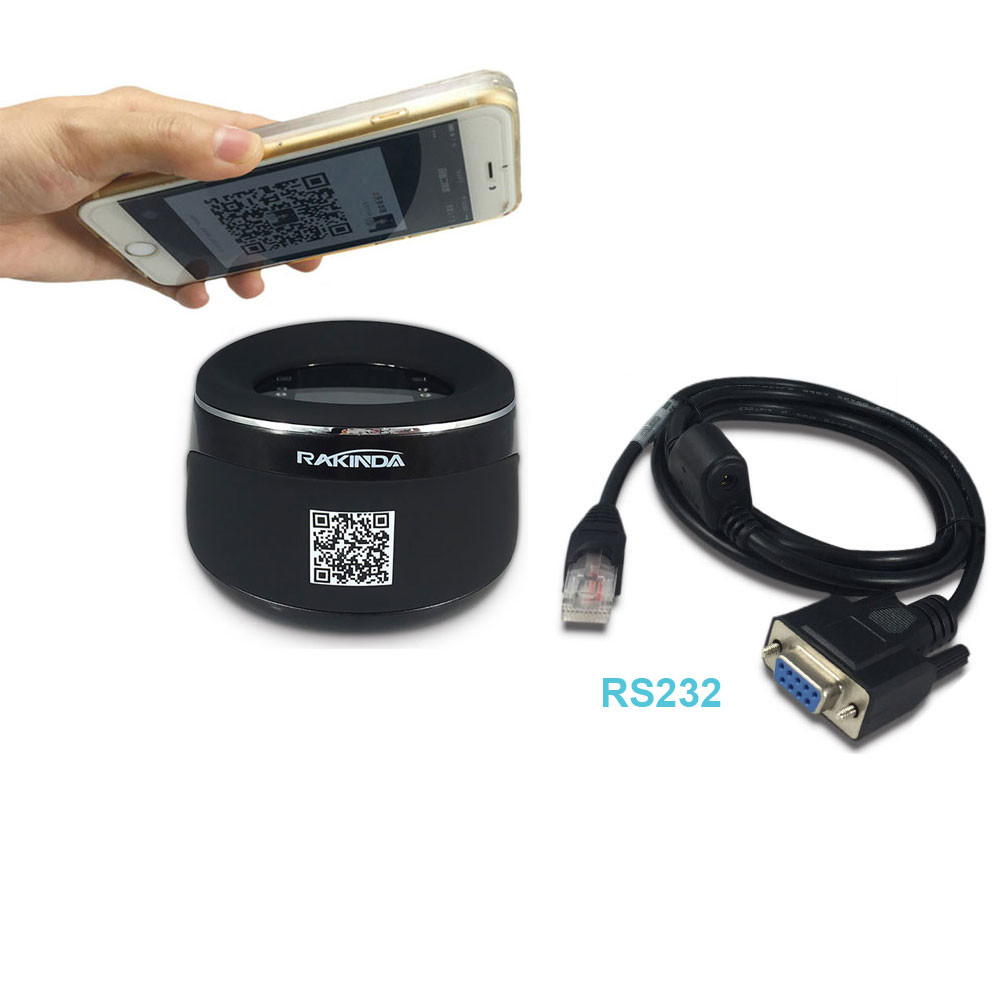

| Interface | RS-232 (9.6~115.2Kbps) |
| USB 1.1(HID-KBW, HID-POS) | |
| Image Sensor | 752× 480 CMOS |
| 2D: PDF417, Data Matrix, QR Code | |
| 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, | |
| Codabar, Code 128, Code 93, ITF-6, ITF-14, | |
| Symbologies | Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, |
| Matrix 2 of 5, GS1 Databar (RSS-Expand, | |
| RSS-Limited, RSS-14), Code 39, Code 11, | |
| MSI-Plessey, Plessey | |
| Scan Mode | Sense mode |
| Resolution | 10 mil |
| Light Source | White LED |
| Scan Window | 38.3mm*60.4mm |
| PCS | ≥30% |
| FOV | Diagonal: 85°, Horizontal: 63.7° , Vertical: 70° |
| Ambient Light | 0 ~ 100,000 LUX |
| Power Consumption | 1.75W (max.) |
| Power Adapter | Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz |
| Notification | Beep |
| Dimensions | 90mm(Diameter) x 60mm(H) |
| Weight | 300g |
| Operating Temperature | -10℃ to + 50 ℃ |
| Storage Temperature | -20℃ to + 60 ℃ |
| Humidity | 5% - 95%(non-condensing) |
| Certification | FCC Part15 Class B, CE EMC Class B |
Designed primarily for such applications as electronic tickets/coupons, mobile marketing and office automation, the series fixed mount barcode scanner is able to read barcodes from paper and mobile phones.
RAKINDA is a company committed to the development up to bar code technology at the core of the automatic identification system integration organizations, enjoyed several years of industry experience and excellent reputation, in Shenzhen and Hong Kong branches, and has a very skillful, experienced, innovative R & D and after-sales technical support service team.
Rakinda, taking “Your satisfaction, Our pursuit” as our principal and core value, always honors the spirit of pursuing perfection. Oriented by market demand, Rakinda will continue to put great effort on R&D of new products and technology and introducing new machine to raise market share. At the same time, we will open new branch offices to win customers and realize healthy development. “Customer first, Pursuing Perfection”, Rakinda will never stop.
