Mini 752×480 CMOS Barcode Reader Module Embedded into Handheld Device

Mini 752×480 CMOS Barcode Reader Module Embedded into Handheld Device

    • Mini 752×480 CMOS Barcode Reader Module Embedded into Handheld Device
    • Mini 752×480 CMOS Barcode Reader Module Embedded into Handheld Device
    • Mini 752×480 CMOS Barcode Reader Module Embedded into Handheld Device
    • Mini 752×480 CMOS Barcode Reader Module Embedded into Handheld Device
    • Mini 752×480 CMOS Barcode Reader Module Embedded into Handheld Device
  • Mini 752×480 CMOS Barcode Reader Module Embedded into Handheld Device

    Product Details:

    Place of Origin: China
    Brand Name: Rakinda
    Certification: CE FCC Rohs
    Model Number: LV3096

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiation
    Packaging Details: carton package
    Delivery Time: 5-8 Working days
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 10000 pcs/month
    Contact Now
    Detailed Product Description
    Image Sensor: 752×480 CMOS Illumination: Red LED 625±10 Nm
    Symbologies: PDF 417, Data Matrix(ECC200,ECC000,050,080,100,140), QR Code; Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 Of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 Of 5, Code 11, Industrial 2 Of 5, Standard 2 Of 5, Reading Precision: >=5 Mil
    Interface: TTL-232, USB (optional)

    Mini 752×480 CMOS Barcode Reader Module Embedded into Handheld Device ​





    Features:

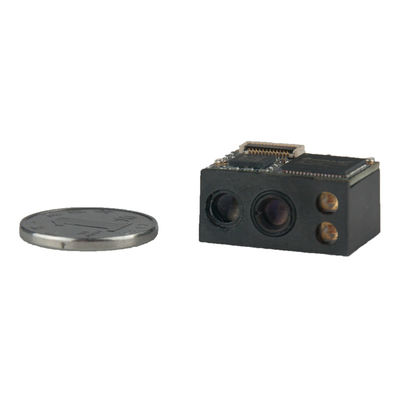

    This compact engine weighs only 5 grams and fits easily into even the most space-constrained equipments such as data collectors, meter readers, ticket validators and PDAs.



    2D Barcode Decoder Chip: The engine armed with the state-of-the-art 2D barcode decoder chip invented by Rakinda demonstrates unprecedented reading performance.



    Two-In-One Design: Seamless integration of CMOS image sensor and decoder board makes the engine small, lightweight and easy for integration.



    High Performance & Ultra-Low Power Consumption: The engine can read 1D and 2D barcodes with a power consumption only one third that of a traditional engine.




    All-Round Scanning Capability: It can read barcodes on virtually any medium - paper, plastic cards, mobile phones and LCD displays.

    LV3096-Datasheet.pdf



    Mini 752×480 CMOS Barcode Reader Module Embedded into Handheld Device



    Specifications

    Performance
    Image Sensor 752×480 CMOS
    Processor IOTC 2D decoder chip 48MHz
    Illumination Red LED 625±10 nm
    Symbologies 2D PDF 417, Data Matrix(ECC200,ECC000,050,080,100,140), QR Code
    Symbologies 1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
    Reading Precision >=5mil
    Depth of Field      EAN13 (13mil) 55mm - 185mm
    Code 39 (5mil) 55mm - 100mm
    PDF 417 (6.67mil) 40mm - 130mm
    Data Matrix (10mil) 40mm - 135mm
    QR Code (15mil) 40mm - 160mm
    Symbol Contrast >=30% reflectance difference
    Scan Angle** Roll: 360°, Pitch: ±55°, Skew: ±55°
    Field of View  Horizontal 36°; Vertical 23°
    Mechanical/Electrical
    Interface TTL-232, USB (optional)
    Rated Power Consumption 0.76 W
    Operating Voltage 3.3±10% VDC

    Current @ 3.3 VDC

    Operating Current

    230 mA
    Standby Current 4mA (USB communication not supported); 7mA (USB communication supported)
    Sleep Current <5 uA
    Dimensions 21.17(W)×14.6(D)×11.52(H)mm
    Weight 5.0g
    Environmental
    Operating Temperature -20℃~ +60℃
    Storage Temperature -40℃~ +80℃
    Humidity 5% ~ 95% (non-condensing)
    Ambient Light 0 ~ 100000 lux (natural light)
    Certifications CE FCC, Rohs
    Accessories
    EVK  Software development board, equipped with a trigger button, beeper and RS-232 & USB interfaces.
    Cable
    RS-232 Cable Used to connect the EVK to a host device; equipped with a power connector.
    USB Cable Used to connect the EVK to a host device.
    Power Adaptor
    Power Adaptor Used to provide power for the NLS-EVK3000.
    Output: DC5V, 2A; Input: AC100~240V, 50~60Hz
    * Test conditions: T=23℃, Illumination=300 LUX
    ** Test conditions:
    Code 39, 3 Bytes; Resolution=10mil; W:N=3:1; PCS=0.8; Barcode Height=11mm; Scan Distance=120mm, T=23℃, Illumination=300 LUX
