TTL232 RS232 USB 1D 2D Barcode Scanner Module 640 X 480 Pixels

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE FCC ROHS
Model Number: RD11C
Minimum Order Quantity: 1pcs
Packaging Details: 1pcs/box
Supply Ability: 500pcs per week
Name: 2D Barcode Scanner Module Optical System: 640 Pixels(H)x 480 Pixels(V)
Scan Angle: 38° (H) X 25° (V) EMC: CE EN55022 B
Light Level: 0~100,000Lux(fluorescence ) Decoding: PDF417 MicroPDF417
High Light:

1D 2D Barcode Scanner Module

,

RS232 2D Barcode Scanner Module

,

1D 2D industrial barcode reader

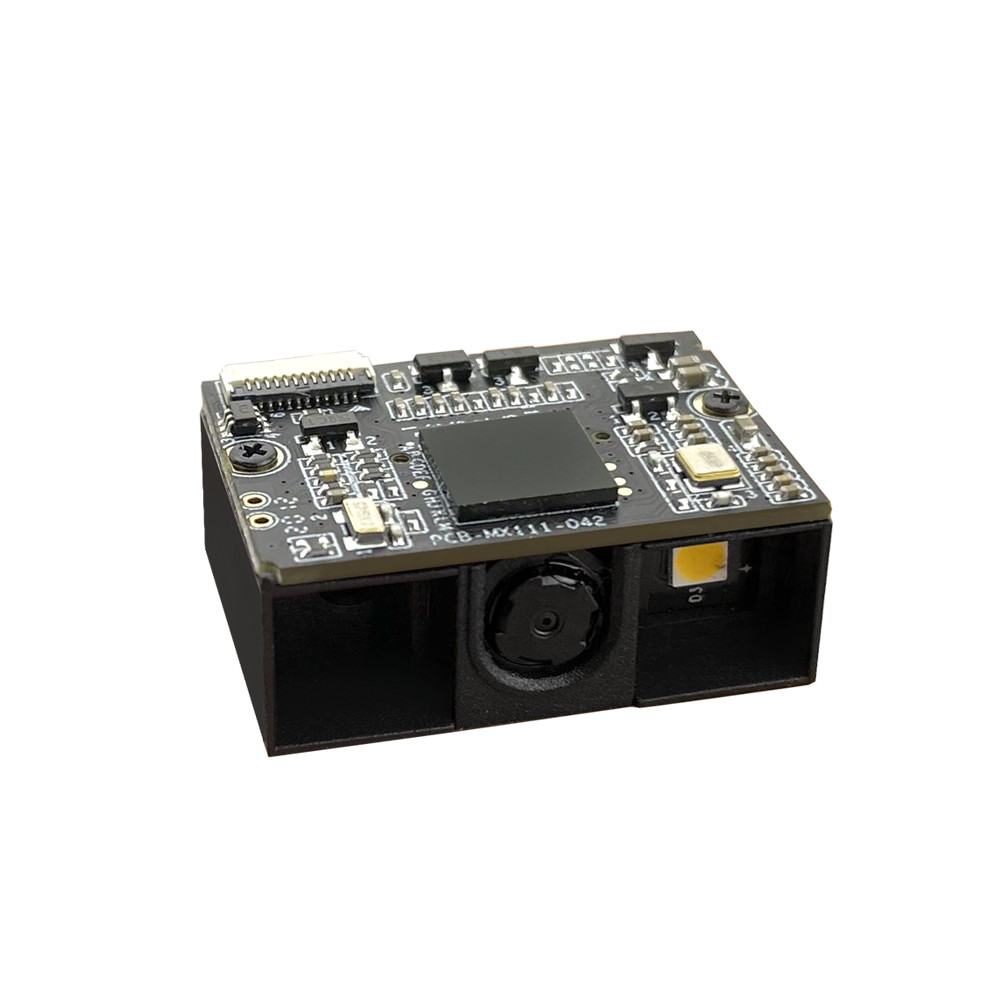

TTL232 RS232 USB 1D 2D Barcode Scanner Module 640 X 480 Pixels



QR Codes Scanner Features:
* High Performance & Ultra-Low Power Consumption:
The engine can read 1D and 2D barcodes with a power consumption only one third that of a traditional engine.
* All-in-One Design:
Seamless integration of image sensor and decoder board makes the scan engine small, lightweight and easy to fit into even the most space-constrained equipment.
* Multiple Interfaces:
The RD11C support TTL-232 12pin serial communication methods,or USB to meet diverse customer needs.



Parameters of Pos QR Code Scanner

RD11C 2D Barcode Scanner Engine Specification

Specification
Optical System 640 pixels(H)x 480 pixels(V)
Illumination Element Aiming: 617nm LED; Illumination 3200K White LED
Depth of Field 40 mm - 280 mm @UPCA -13 mil 100 %,PCS 90%
Scan Angle 38° (H) x 25° (V)
Min. Bar Width 0.1mm(4mil)@Code 39, PCS=90%
Scan Mode Trigger mode, Auto-sensing, Continuous scan, Pulse mode
Print Contrast > 30%(UPC/EAN 100% , PCS 90%)

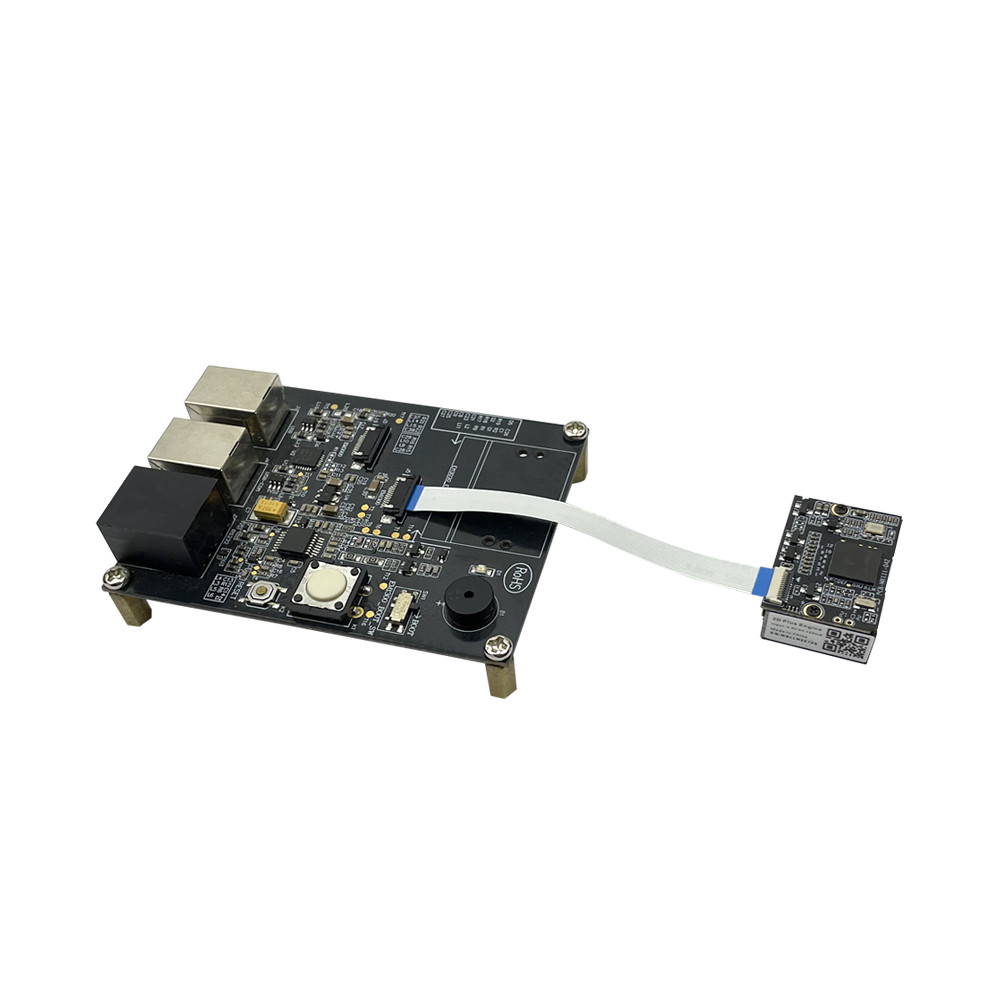

System Interface TTL232 (12pin), USB 1.1 (HID Keyboard,Virtual COM Port)
Depth of Field
Physical Characteristics

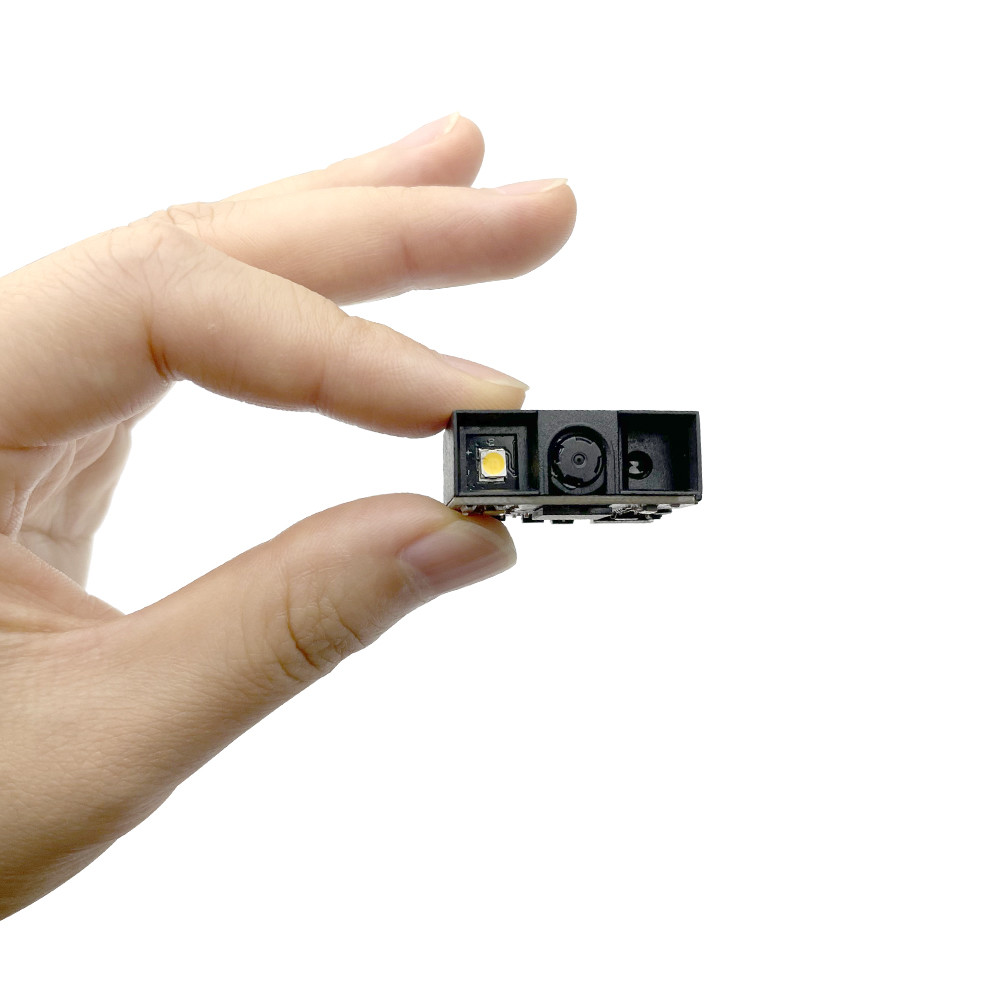

Dimensions 28.2mm x 20.5mm x 11.8mm
Weight About 5g
Input Voltage DC 3.3V±5%
Operating Current 130 mA ±5%(Typical), 300 mA ±5%(Max.)
REGULATORY
EMC CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI
Environment & Safety

Operating

Temperature

-20℃~50℃
Humidity 5%~95% (non-condensing)

Storage

Temperature

-40℃~+70℃
Light Level 0~100,000Lux(fluorescence )
Decoding Capability

UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII),

Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA

Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded



PDF417 MicroPDF417

Data Matrix QR Code Micro QR Code Aztec Code Maxi Code Reads barcode reliably of cell phone screens
