| Place of Origin: | China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE/ROHS/FCC |
| Model Number: | RD11P |
| Minimum Order Quantity: | 2 |
| Price: | USD+45-65$+1pcs |
| Packaging Details: | Paper Carton package |
| Payment Terms: | T/T, Paypal, Credit card |
| Supply Ability: | 1000+pcs+per week |
| Optical System: | 1280*800 CMOS | Illumination: | 5600K White LED |
|---|---|---|---|
| Aiming: | 617nm LED | Symbologies: | 1D/2D/PDF417/QR/Data Matrix |
| Dimension: | 28.2(W)*20.5D)*11.8(H)mm | Application: | POS/PDA/Handeld Medical Device |
| Operating Temperature: | -20℃ To 55℃ | Scan Mode: | Sense Mode/continuous Mode |
| Interface: | USB/RS232 | Depth Of Field: | 30mm-320mm |
| Highlight: | 1D QR Code Scanner Module,2D QR Code Scanner Module,PDF417 QR Code Scanner Module |
||

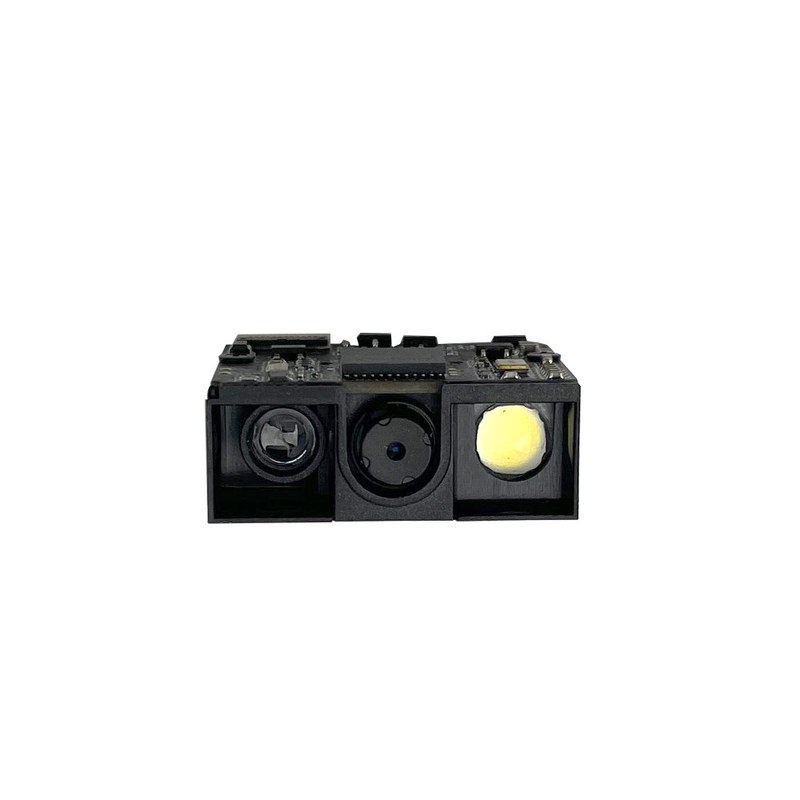

RD11P CMOS 2D 1D QR Code Scanner Module Thin PDF417 Data Matrix
CMOS 2D 1D QR Code Scanner Module Thin QR Code Scanner USB Module
RD11P barcode scanner description:
RD11P armed with Rakinda's six-generation of technology, the scan engine can swiftly and effortlessly
decode even poor quality barcodes.Very suitable for Bluetooth Ring Scanner, Bluetooth Pocket Scanner,
Necklace barcode scanner, PDA, Tablet, Notebook and Etc.
RD11P Scanner engine main features:
1: High Performance& Ultra-Low Power Consumption:
The engine can read 1D and 2D barcodes with a power consumption only one third that of a traditional engine.
2: All-in-One Design:
Seamless integration of image sensor and decoder board makes the scan engine small,lightweight and easy to fit into even the
most space-constrained equipement.
3: All-Round Scanning Capablity:
RD11P scanner can read barcodes on virtually any medium paper, plastic cards, mobile phones and LCD display.
RD11P Scanner Engine Application scenarios:
Self-service cabinets used in-commerce, express delivery services and smart homes; ATMs, kiosk;queue machines;
lottery machines; certificate makers.
Compatible OS: Android, Windows, Linux
RD11P Mini size scanner module Parameters:
| Optical System |
1280 pixels(H)x 800 pixels(V)
|
| Illumination Element |
Aiming: 617nm LED; Illumination 5600K White LED
|
| Depth of Field |
30 mm - 320 mm @UPCA -13 mil 100 %,PCS 90%
|
| Scan Angle |
46° (H) x 29° (V)
|
| Min. Bar Width | 0.1mm(4mil)@Code 39, PCS=90% |
| Scan Mode | Trigger mode, Auto-sensing, Continuous scan, Pulse mode |
| Print Contrast | > 30%(UPC/EAN 100% , PCS 90%) |
| System Interface |
USB 1.1 (HID Keyboard,Virtual COM Port) RS-232 (9.6~115.2Kbps)
|
| Dimensions | 28.2mm x 20.5mm x 11.8mm |
| Weight | About 5g |
| Input Voltage | DC 3.3V±5% |
| Operating Current | 130 mA ±5%(Typical), 300 mA ±5%(Max.) |
| EMC | CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI |
| Operating Temperature | -20℃~50℃ |
| Decoding Capability
(1D 2D)
|
UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS14,RSS Limited, RSS Expanded PDF417 Micro
PDF417 Data Matrix QR Code Micro QR Code Aztec Code Maxi Code
Reads barcode reliably of cell phone screens
|
| Humidity | 5%~95% (non-condensing) |
| Light Level | 0~100,000Lux(fluorescence ) |
| Storage Temperature | -40℃~+70℃ |
Company Advantages:
Our company is specialized in barcode scanner for 20 years since 2000, we have professional research
developement team, has our own factory, support OEM design. We have many customers from different
countries already. And we are Gold supplier in the Alibaba. Our product is certificated by CE,ROHS and FCC.
FAQ:
Q1: Can I get some samples? Are they free?
A1: We support 1-2pcs sample order. Samples should be paid.
Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us directly
according to the contact info. We will send you proper link directly.
Q3: What is your payment method?
A3: We accept Alibaba online orders by Credit card, PayPal ,T /T
Q4: How long is your warranty time?
A4: Our officially promised warranty time is 1 year after delivery.
Q5: Where can we download the user manual of the scanners?
A5: We will send by email after you get samples.
Q6: What's the lead time?
A6: For sample, it is typically within 5-7days by DHL. For bulk order, it depends on quantity and model you order.
Q7: Can you provide OEM service?
A7: Yes. We need further discuss about details.
Q8: If I come across any problem during product using, where I can get the support ?
A8: We support you technically 24h/7.please send all your questions to us. and we will give the professional,patient,
expliantion by email or call in time.
Q9: How do you ship the scanners usually?
A9: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail. We also can ship the goods by your shipping account or other express agent you provided.
