|Image Sensor:||640*480 CMOS||Illumination:||3200KWhite LED|
|Aiming:||617nm LED||Symbologies:||1D/2D/PDF417/QR/Data Matrix|
|Dimension:||28.2(W)*20.5D)*11.8(H)mm||Application:||POS/PDA/Handeld Medical Device|
|Operating Temperature:||-20℃ To 55℃||Scan Mode:||Sense Mode/continuous Mode|
|Interface:||TTL232/USB||Depth Of Field:||40mm-280mm|
Embedded 2D Barcode Scanner Module,
POS 2D Barcode Scanner Module,
Embedded QR Code Reader Module
Mini Stable RFID Embedded 2D Barcode Scanner Module QR Code Reader Module
Mini Stable RFID Embedded 1D/2D UPC Scan Module QR Code Reader Module

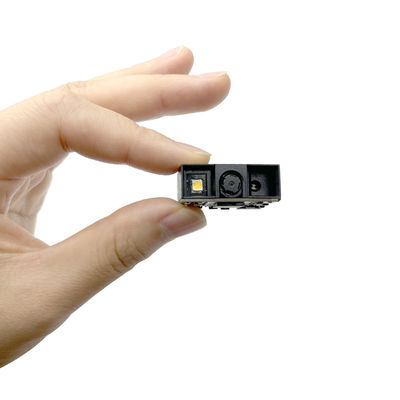

RD11C barcode scanner description:
RD11C is Rakinda latest OEM Mini 1D QR scanning engine, can fast scan paper and phone screen barcode.
Very suitable for Bluetooth Ring Scanner, Bluetooth Pocket Scanner, Necklace barcode scanner, PDA, Tablet, Notebook and Etc.
RD11C Scanner engine main features:
1: High Performance& Ultra-Low Power Consumption:
The engine can read 1D and 2D barcodes with a power consumption only one third that of a traditional engine.

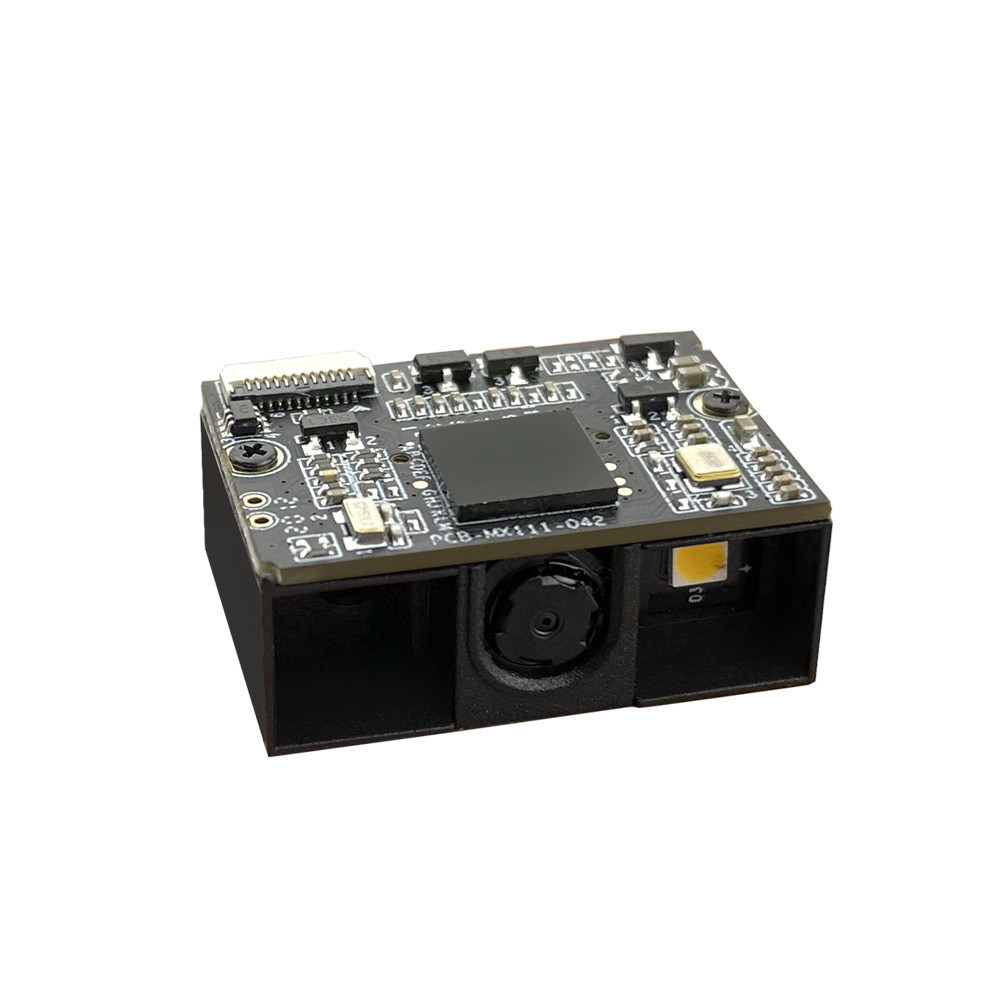

2: All-in-One Design:
Seamless integration of image sensor and decoder board makes the scan engine small,lightweight and easy to fit into even the
most space-constrained equipement.
3: Multiple Interfaces:
The RD11C support TTL-232 12pin serial communication methods, or USB to meet diverse customer needs.
|Optical System||640 pixels(H)x 480 pixels(V)|
|Illumination Element||Aiming: 617nm LED; Illumination 3200K White LED|
|Depth of Field||40 mm - 280 mm @UPCA -13 mil 100 %,PCS 90%|
|Scan Angle||38° (H) x 25° (V)|
|Min. Bar Width||0.1mm(4mil)@Code 39, PCS=90%|
|Scan Mode||Trigger mode, Auto-sensing, Continuous scan, Pulse mode|
|Print Contrast||> 30%(UPC/EAN 100% , PCS 90%)|
|System Interface||TTL232 (12pin), USB 1.1 (HID Keyboard,Virtual COM Port)|
|Dimensions||28.2mm x 20.5mm x 11.8mm|
|Input Voltage||DC 3.3V±5%|
|Operating Current||130 mA ±5%(Typical), 300 mA ±5%(Max.)|
|EMC||CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI|
|UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS14,RSS Limited, RSS Expanded PDF417 Micro
PDF417 Data Matrix QR Code Micro QR Code Aztec Code Maxi Code
Reads barcode reliably of cell phone screens
|Light Level||0~100,000Lux(fluorescence )|
