TCP Wiegand Mifare IC NFC QR Barcode Scanner Access Control Card Reader

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE/ROHS/FCC
Model Number: RD008
Minimum Order Quantity: 1
Price: USD+190-230$+1pcs
Packaging Details: Paper Carton package
Payment Terms: T/T, Paypal, Credit card
Supply Ability: 1000+pcs+per week
Light Soure: White LED Symbologies: 1D/2D/PDF417/QR/Data Matrix
Card Type: MIFARE ISO1443A Or ISO1443B Power Input: 9-18VDC
Interface: RJ45;Wiegand26/34 Optional Functions: Wifi/Bluetooth
Protocol: TCP/HTTP Image Sensor: 752*480
High Light:

Mifare IC NFC Reader

,

Mifare QR Barcode Scanner

,

NFC QR Barcode Scanner

TCP Wiegand Mifare IC NFC QR Barcode Scanner Access Control Card Reader



Http/TCP Wiegand Mifare IC NFC Reader QR Barcode Scanner Access Control Card Reader



RD008 QR scanner IC card reader  description:



RD008 hot access control system device, support QR and IC card reading, support Ethernet port and wiegand,

optional function is wifi. And it support TCP/HTTP, relay controller, suitable for gym, elevator or turnstile project.

Once you scan the barcode, then you can enter or pass the gate. Free SDK will be provided (RD006 and RD008 same SDK)

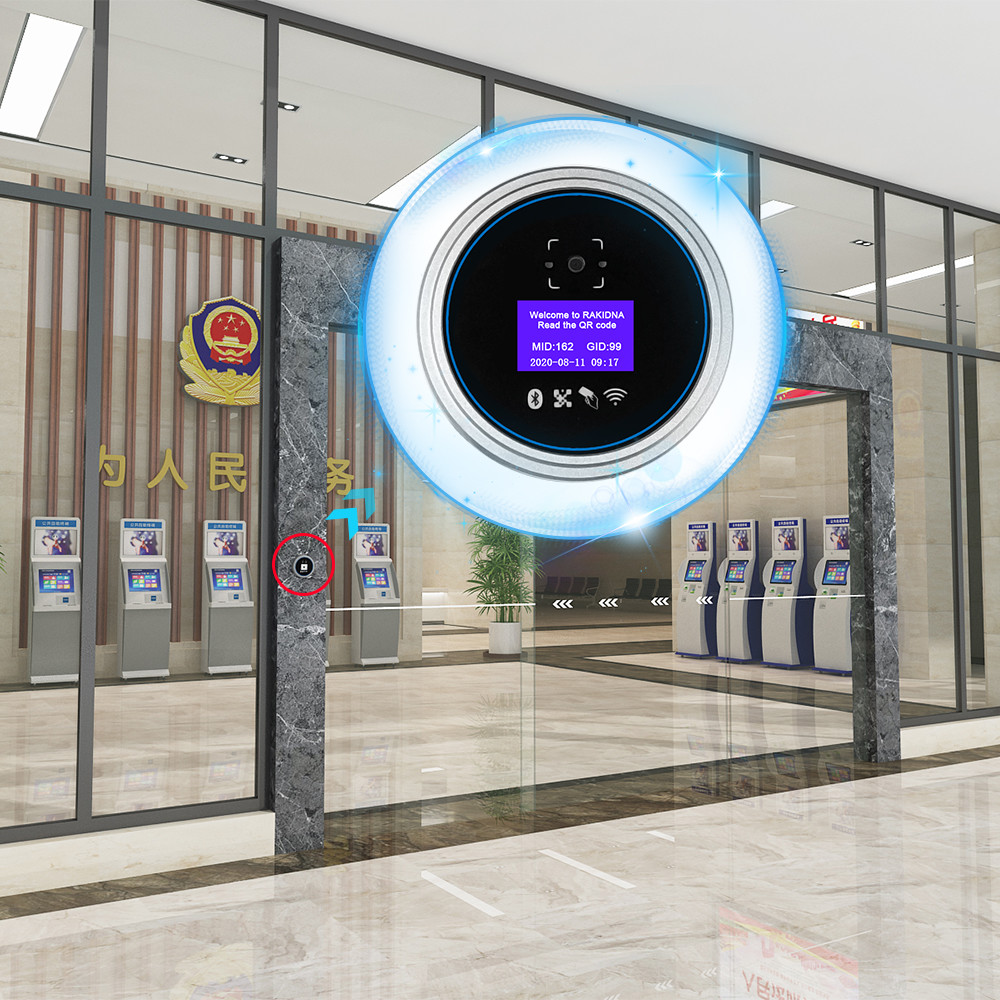

Application scenario: Gym, Elevator, Building office, turnstile access control.



Contact me:

Email: Spring@rakinda.com

Tel/Whatsapp : +86-15173128923

Skype: live:8278c52ce2811302

Wechat: may050123



RD008 Phone screen reader main features:

1. Embedded multi-tasking real-time operating system, the system can be fully started in 3 seconds.

2. Single door network access control + QR code scanning head + IC card reader triple product. Make the on-site

    installation and maintenance simple and cost-effective.

3. The product comes with a voice amplifier and speaker. The voice for common entry and exit events can be set.

    The network can control nearly 150 voices and can customize the voice.

4. Encrypted QR code that complies with the agreed rules can be opened / opened directly when not connected to

    the Internet.The agreed rules mainly include: 1) the start time and end time of the two-dimensional code valid; 2) the number of

    times the two-dimensional code is valid and exceeds the number of uses, the two-dimensional code can no longer be used; 3)

    equipment MAC matching or project number building number Match, a QR code can contain one or more device numbers, which

   can be legally valid on multiple devices; 4) The encryption key of the QR code can be modified without leaving any backdoors or

   loopholes to ensure the security of the QR code.

5. Common parameters such as network IP parameters, lock delay, Wiegand 26/34, etc. can be set directly through the QR code,

    making site commissioning easier

6. Equipment capacity: 35,000 cards, 50,000 records, 100,000 QR codes, and records and QR codes exceeding the capacity will be automatically covered.



Parameters:

RD008 Round 2D IC Card Access Control Machine
QR Code Scanning Component Parameters
Image Sensor 752X480
Light Source White LED
Symbologies 2D: PDF417, QR CODE, DATA MATRIX,Support Mobile Phone Mirror Recognition and Paper 2D Code Recognition
1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc.
Reading Distance 10-55mm
Scan Angle 360° Full Angle
Display Components
Screen 1.8 ”TFT true color screen
Resolution 128 * 160
Display Area 28mmX35mm
Input and Output Parameters
Power Input 9-18VDC
Working Current < 600mA
Can read like ISO14443Aor ISO14443B Card Serial Number Such as Second-generation ID card, FM1208 CPU Card, M1 Card (Mifare S50, Mifare S70 IC card), SRIX4K, etc.
Barcode or 2D Code Input Wiegand 26/34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules
Communication Interface RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth
Communication Protocol Support TCP / UDP / HTTP
Voice output comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice
Device Input 12V DC power input, 1 door magnetic input, 1 door button input, 1 alarm input
Equipment output 1 channel 3A relay output, 1 channel unlock, 1 channel expansion can control door opener, light, water valve, etc.
Wiegand output Wiegand 26/34 output
Dimensions

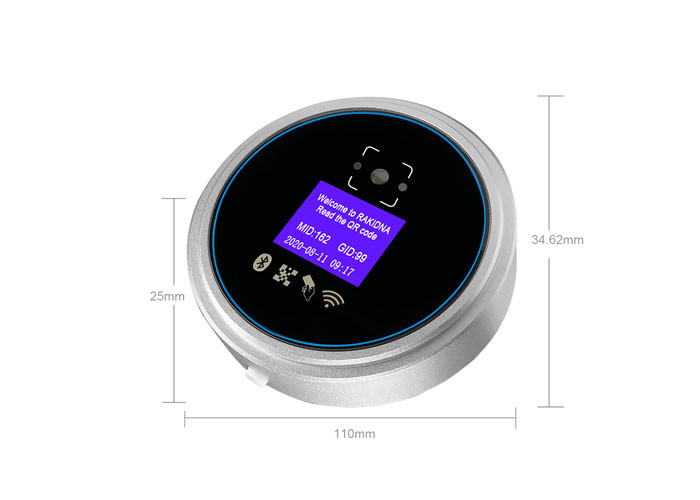

Installation size 110mm * 25-34.62mm (L*H), Compatible with standard 86 box




TCP Wiegand Mifare IC NFC QR Barcode Scanner Access Control Card Reader 0

TCP Wiegand Mifare IC NFC QR Barcode Scanner Access Control Card Reader 1

TCP Wiegand Mifare IC NFC QR Barcode Scanner Access Control Card Reader 2

TCP Wiegand Mifare IC NFC QR Barcode Scanner Access Control Card Reader 3
