Fixed Mount AZTEC Qr Code Reader Module Embedded OCR Barcode Reader

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE FCC Certificate
Model Number: LV3000H
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: Normal craft paper and foam
Delivery Time: Within 5 working days after receiving the balance
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 200PCS/Week
Image Sensor: 1280*800CMOS Resolution: 3mil
Symbologies: 1D 2D OCR MRZ Aztec Light Source: Cross Hair Aiming Light
Reading Mode: Sense Mode, Continuous Mode, Level Mode,Pulse Mode Certificate: CE FCC ROHS
High Light:

AZTEC Qr Code Reader Module

,

PDF417 Qr Code Reader Module

,

Embedded OCR Barcode Reader

Fixed Mount AZTEC Qr Code Reader Module Embedded OCR Barcode Reader



Fixed mount 1d and 2d QR code scanner module fast embedded OCR barcode reader


LV3000H Fixed Mount QR Scanner Product Introduction:
LV3000H fixed mount scanner adopts a unique fully integrated design, which fully integrates image acquisition, lighting aiming, etc., which is small, light and powerful. Suitable for use in products embedded in various industries, such as cash registers, data collectors, meter reading equipment, ticket checking machines, etc.


LV3000H QR Scanner Product Features:
1.I R/Light Triggers
2.A utomatic Exposure Control (AEC)
3. IP54-sealed Housing
4. Unmatched Reading Performance
5. Highly Visible Laser Aimer
6. 1.5m Drop Resistance



LV3000H OCR MRZ Reader Product Parameters

Performance Image Sensor 1280*800 CMOS
Illumination Aiming White LED Laser Diode or Gree LED
Symbologies 2D PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One, ect.
1D EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc.
Resolution >=3 mil
Typical Depth of Foeld EAN-13 55-360mm(13mil)
Code 39 70-180mm(5mil)
PDF417 55-160mm(6.7mil)
Data Matrix 50-170mm(10mil)
QR Code 40-210mm(15mil)
Scan Mode Sense mode, Continuous mode, Level mode, Pulse mode
Scan Angle Roll:360d, Pitch:±55°, Skew:±55°
Field of View Horizontal 51°, Vertical 32°
Min Symbol Contrast 25%
Mechanical Electric Interface RS-232, USB
Dimensions 63(W)*45(D)*28(H)
Weigh 75g
Notification Beep, LED indicator
Rated Power Consumption 1622mW(typical)
Operating Voltage 5VDC±-5%
Current SVDC Operating 276.8mA(typical), 322.7mA(max.)
Standby 83.3mA
Environmental Operating Temperature -20℃ to 60℃(-4℉ to140℉)
Storage Temperature -40℃ to 70℃ (-40℉ to 158℉)
Humidity 5% to 95% (non-condensing)
ESD ± 14kV (air discharge), ±8kV (direct discharge)
Drop 1.5m
Sealing IP68
Certifications FCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC
Environmental Cable USB Used to connect the LV3000U to a host device
RS-232 Used to connect the LV3000U to a host device
Power Adapter DC5V adapter to power the LV3000U with RS-232 cable





LV3000H QR Datamatrix Scanner in Production Line Application Cases

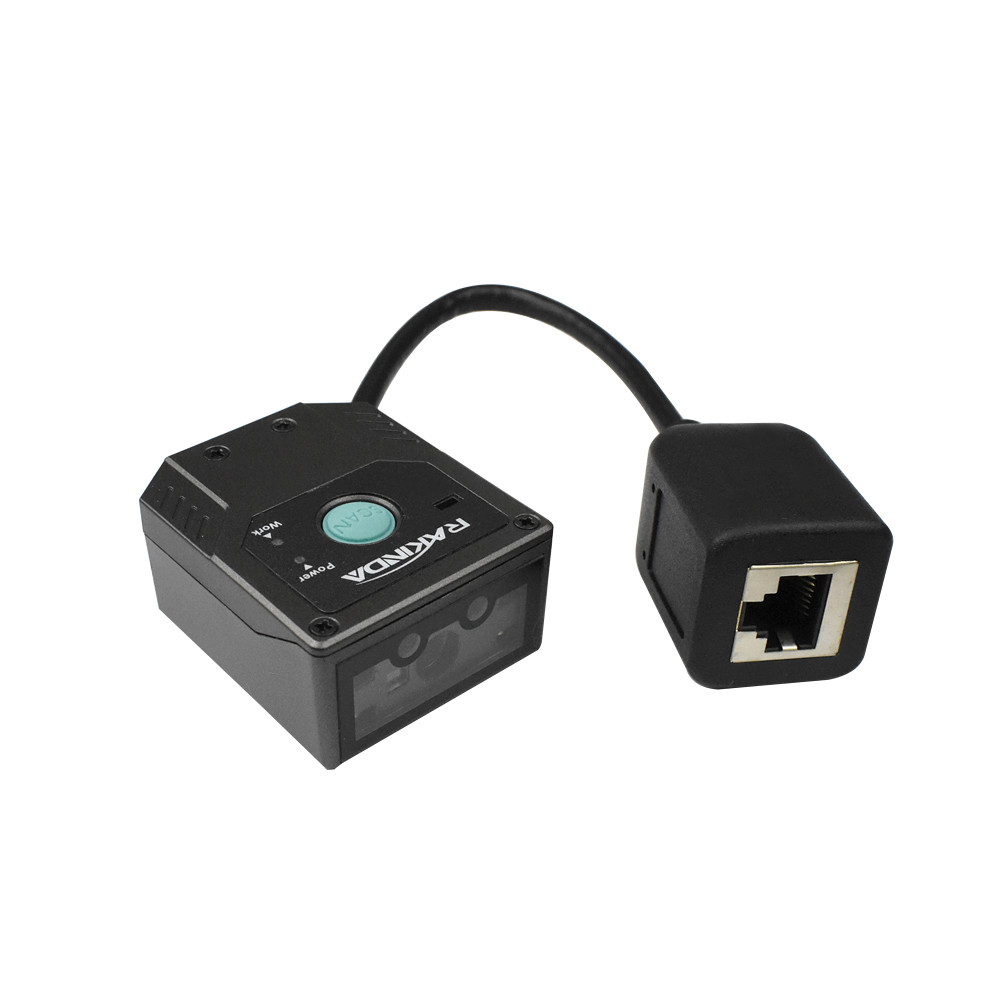

Fixed Mount AZTEC Qr Code Reader Module Embedded OCR Barcode Reader 0

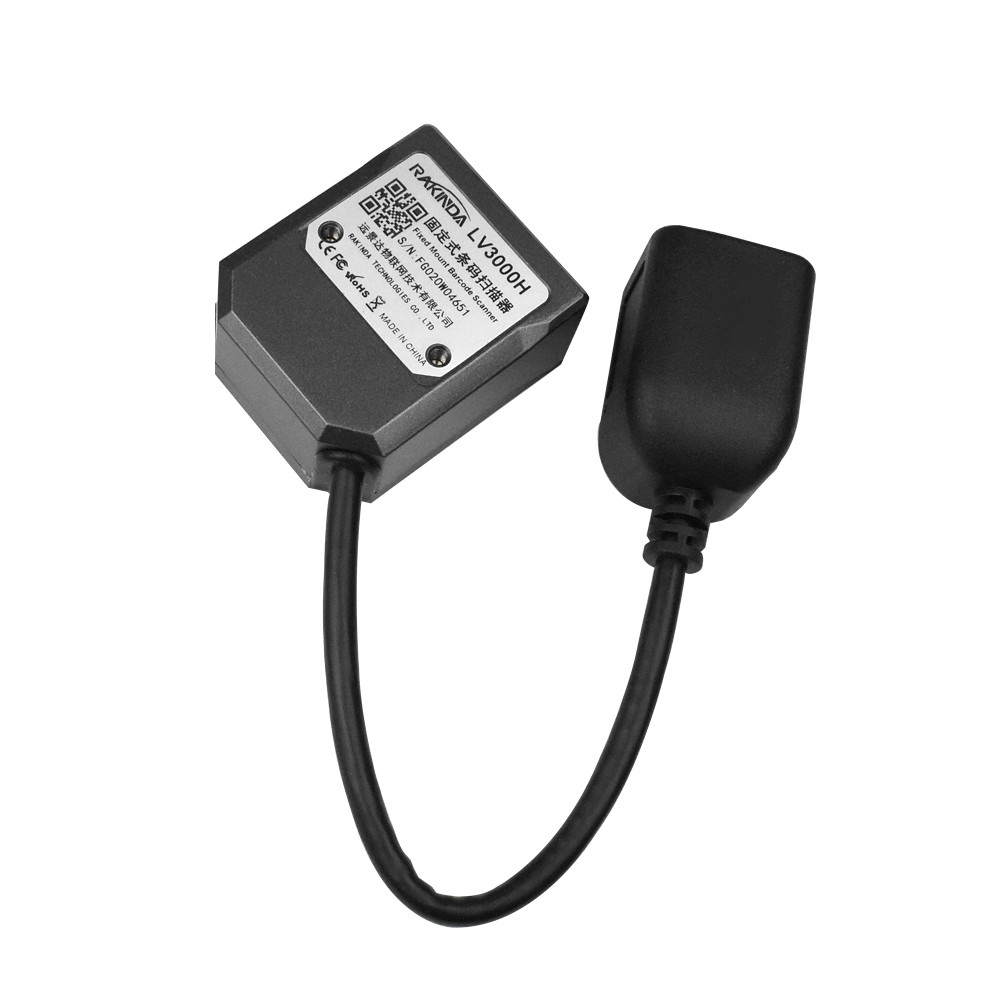

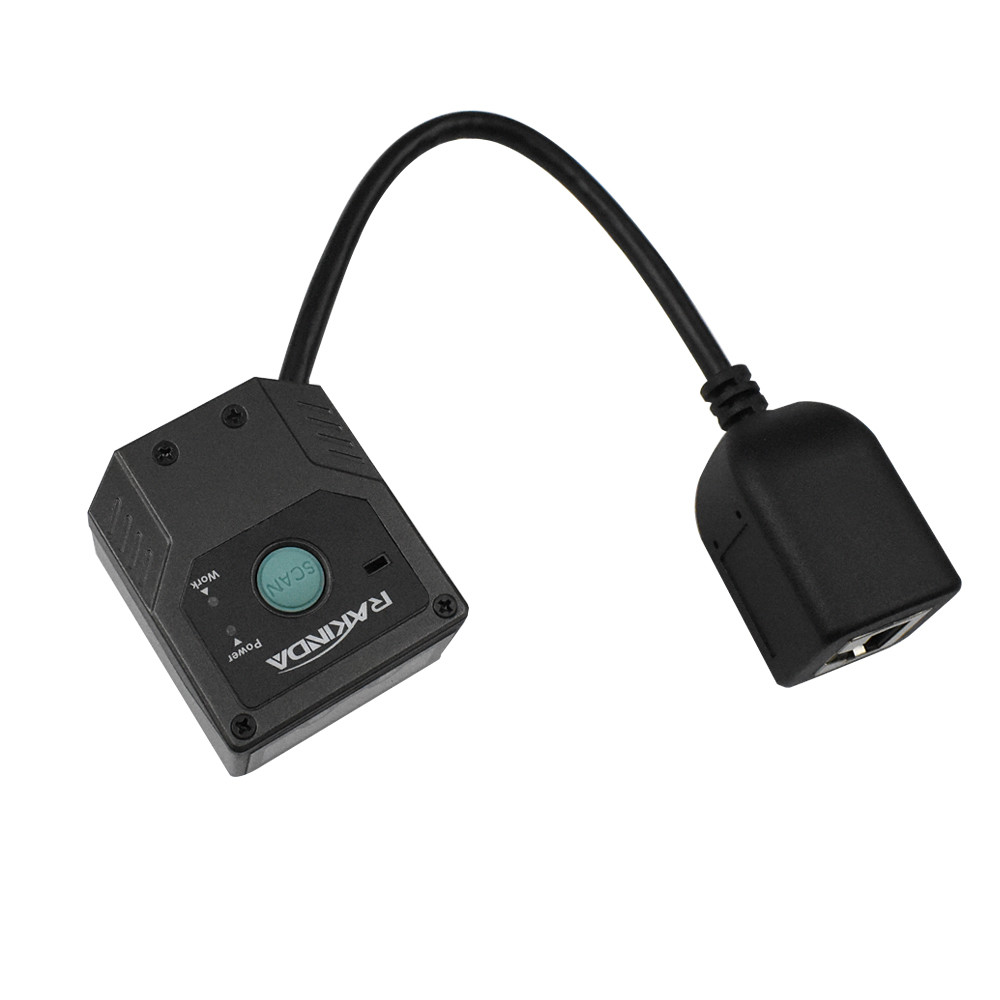

Fixed Mount AZTEC Qr Code Reader Module Embedded OCR Barcode Reader 1Fixed Mount AZTEC Qr Code Reader Module Embedded OCR Barcode Reader 2

LV3000H QR Datamatrix Scanner in Production Line Application Cases

Fixed Mount AZTEC Qr Code Reader Module Embedded OCR Barcode Reader 3
