Mini Embedded PDF417 2D Barcode Scanner Module 1d Qr Reader Module
Mini embedded qr code scanner 2d imager barcode engine reader small size for bus payment system

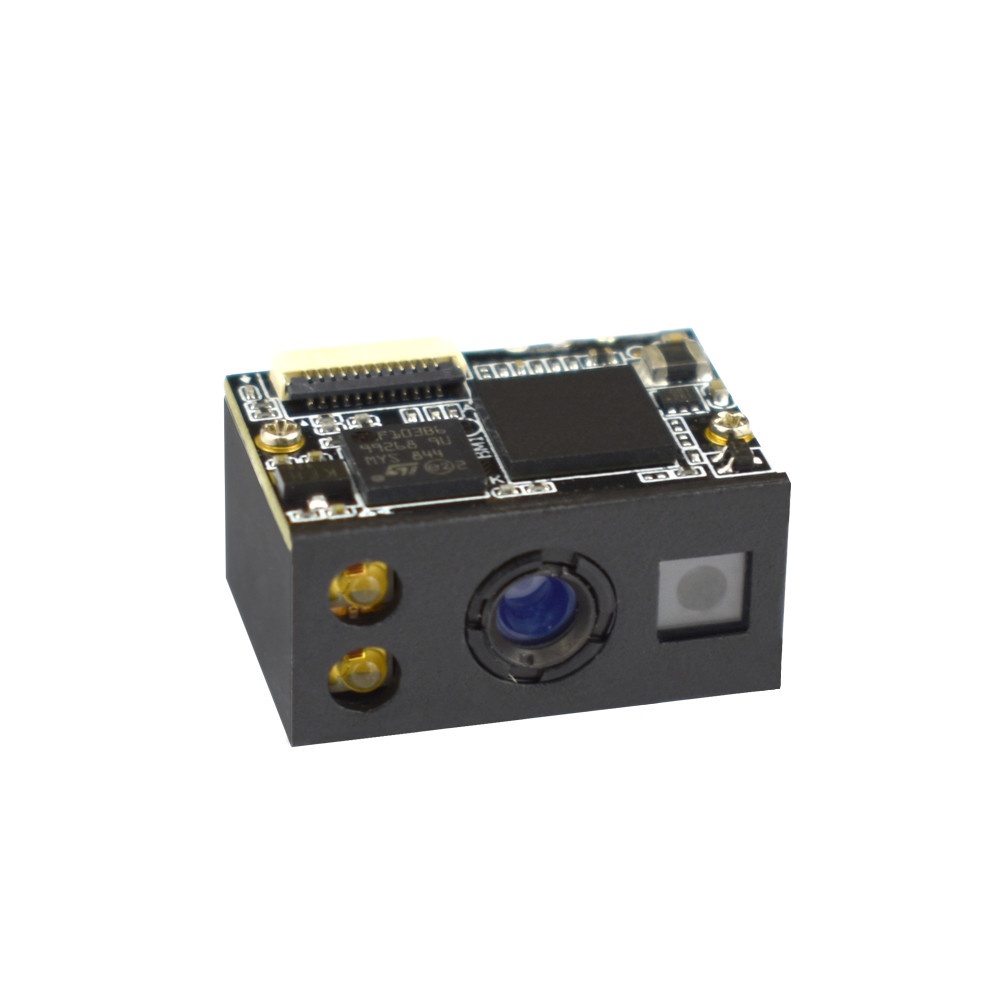

Description of LV30 2D barcode scanner module
Rakinda LV30 is all-in one design, with seamless integration of image sensor and decoder board. The compact size makes it easy for integration into handheld device or self-service device. Default interface is TTL232, connecting via 12pin FPC cable, 0.5mm pitch. You can also design a convertion board from TTL232 to USB. It can read barcodes on paper, card, or screen with high or low brightness. Moreover, it can also read barcodes with low quality or read through glass. With given integration guide and user guide, you can save a lot time for testing and prototype.
Features of CMOS barcode scanner
1. Mini and compact size, easy for integration
2. TTL232/USB communication to support multiple application
3. High reading precision with 3mil
4. Fast reading and decoding, with highly visible laser aiming
5. Good to read printed/screen 1D/2D barcodes
6. Good to read poor quality barcodes
LV30 Technical Parameter
||Red LED 625nm±10 nm
PDF417, Data Matrix (ECC200,ECC000,050,080,100,140),
QR Code, Chinese Sensible Code
||Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
|Typical Depth of
|Data Matrix (10mil)
||Pitch: ±55°, Skew: ±55°, Roll: 360°
|Field of View
||Horizontal: 36°, Vertical: 23°
|Current @3.3 VDC
||138mA (typical), 214mA (max)
||0-100000 lux (natual light)
||FCC Parti 5 Class B, CE EMC Class B
