PDF417 Barcode Scanner Module LV2097 OEM Barcode Scan Engine

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE, FCC, ROHS
Model Number: LV2097
Minimum Order Quantity: 2pcs
Price: USD 85/pc
Packaging Details: cartoon package
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000pcs per month
Model: LV2097 Symbologies: 2D And 1D
Operating Temperature: '-20℃ To 55℃ Interface: 13pin TTL232
Resolution: 3mil Illumination: White LED
High Light:

PDF417 Barcode Scanner Module

,

LV2097 Barcode Scan Engine

,

DataMatrix Barcode Scanner Module

PDF417 Barcode Scanner Module LV2097 OEM Barcode Scan Engine



1. LV2097 OEM Barcode Scan Engine Description

LV2097 2D barcode scanner module armed with latest technology, it can decode various 1D and 2D code on phone screen and poorly printed paper. When the phone screen is covered with protective fim or set to low level brightness, it can still decode the code easily.

LV2097 2D code scan engine supports both USB and TTL232 interface for easy integration in various applications.



2. LV2097 Barcode Scanner Module Features

2.1 Multiple interfaces: USB and TTL232;

2.2 Snappy On-Screen Barcode Capture

2.3 Outstanding power efficiency

2.4 Compact and lightweight design



3. LV2097 Barcode Scanner Module Specifications

Performance Image Sensor   640*480
Illumination   White LED
Aiming   Red LED (625nm)
Symbologies 2D PDF417, Data Matrix, QR code, Chinese Sensible Code
1D Code128, EAN-13, EAN-8, Code39,UPC-A, Interleaved 2 of 5
Resolution   ≥3mil
Mechanical/Electrical Interface   TTL-232 USB
Operating Current   138mA (typical)
Operating Voltage   3.3VDC±5%

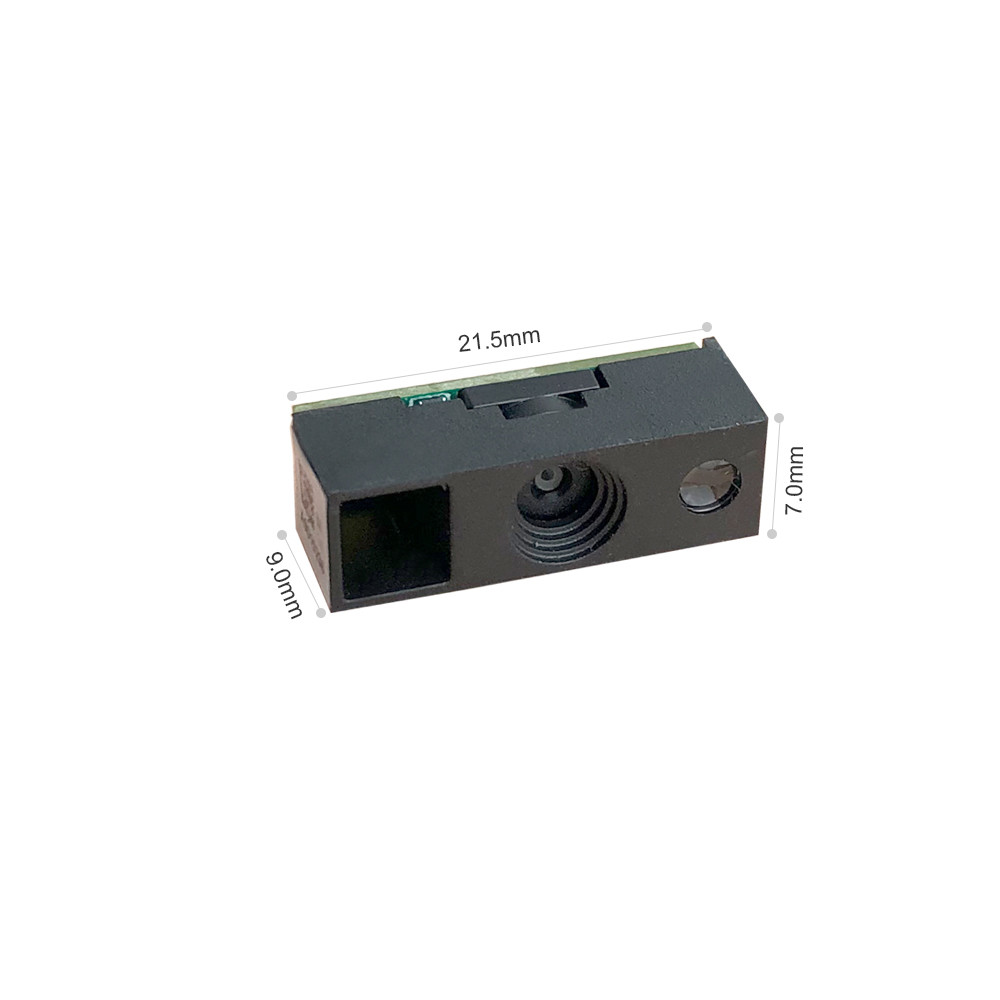

Dimensions   21.5(W)*9.0(D)*7.0(H)mm
Weight   1.2g



4. LV2097 Typical application

LV2097 perfect fits in POS, PDA, bluetooth ring scanner, bluetooth pocket scanner, necklace barcode scanner, tablet and notebook.

PDF417 Barcode Scanner Module LV2097 OEM Barcode Scan Engine 0

5. LV2097 Barcode Scanner Module Advantages:

It is small size and lightweight; good at scanning phone screen code and paper printed code; low cost.

Rakinda has been in IOT industry for 21 years. We have professional software and hardware team to provide customized services for clients. We are willing to cooerate with system integratos and traders in the world.
