3mil Mini OEM 2D Barcode Scanner Module PDF417 Barcode Scan Engine

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAKINDA
Certification: FCC, CE
Model Number: LV2097
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Normal craft paper and foam.
Delivery Time: within 2 working days after receiving payment
Payment Terms: Western Union, T/T, paypal
Supply Ability: 1000 PCS/ week
Image Sensor: 640X480 CMOS Resolution: 3mil
Dimensions (mm): 21.5(D)x9(VV)x7(H) Weight: 1.2 G
Operating Voltage: 3.3±10% VDC Interface: TTL232 Or USB
Symbologies: 1D+2D(QR, PDF417, Micro QR, Datamatrix)
High Light:

OEM 2D Barcode Scanner Module

,

Mini 2D Barcode Scanner Module

,

PDF417 Barcode Scan

3mil Mini OEM 2D Barcode Scanner Module PDF417 Barcode Scan Engine



TTL232 FPC 3mil Mini OEM 2D CMOS QR PDF417 Barcode Scan Engine

S900-Datasheet.pdf

Description of Barcode Scan Engine

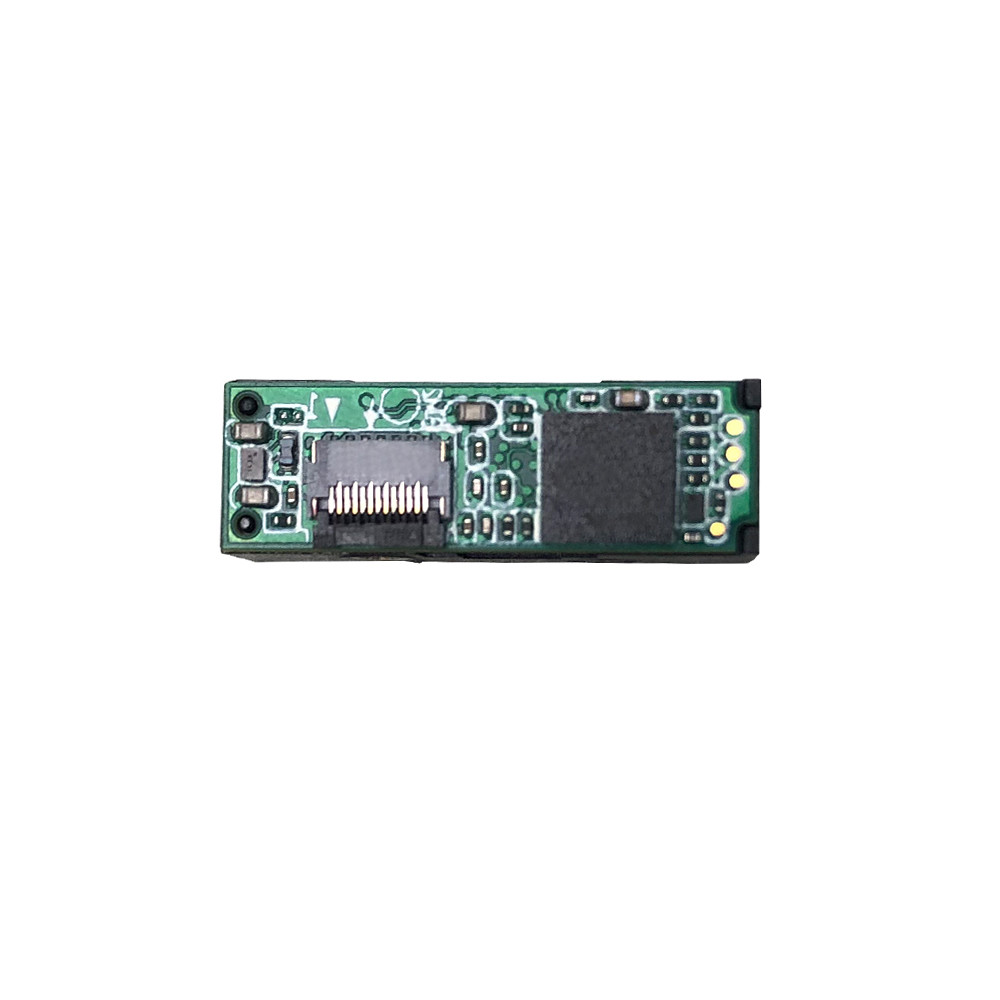

Rakinda LV2097 is low cost OEM 2D barcode scanner module. The compact size makes it easy for integration into

space constrained device such as handheld mobile device PDA, Tablet. Default interface is TTL232, connecting via

12pin FPC cable, 0.5mm pitch. You can also design a convertion board from TTL232 to USB. It can read barcodes

on paper, card, or screen with high or low brightness. Moreover, it can also read barcodes with low quality or read

through glass. With given integration guide and user guide, it saves you a lot time for testing and prototype.



Features of 2D CMOS barcode scanner

1. TTL232 Interface

2. Low Cost & High Performance

3. Imager & Decoder Board Two in One

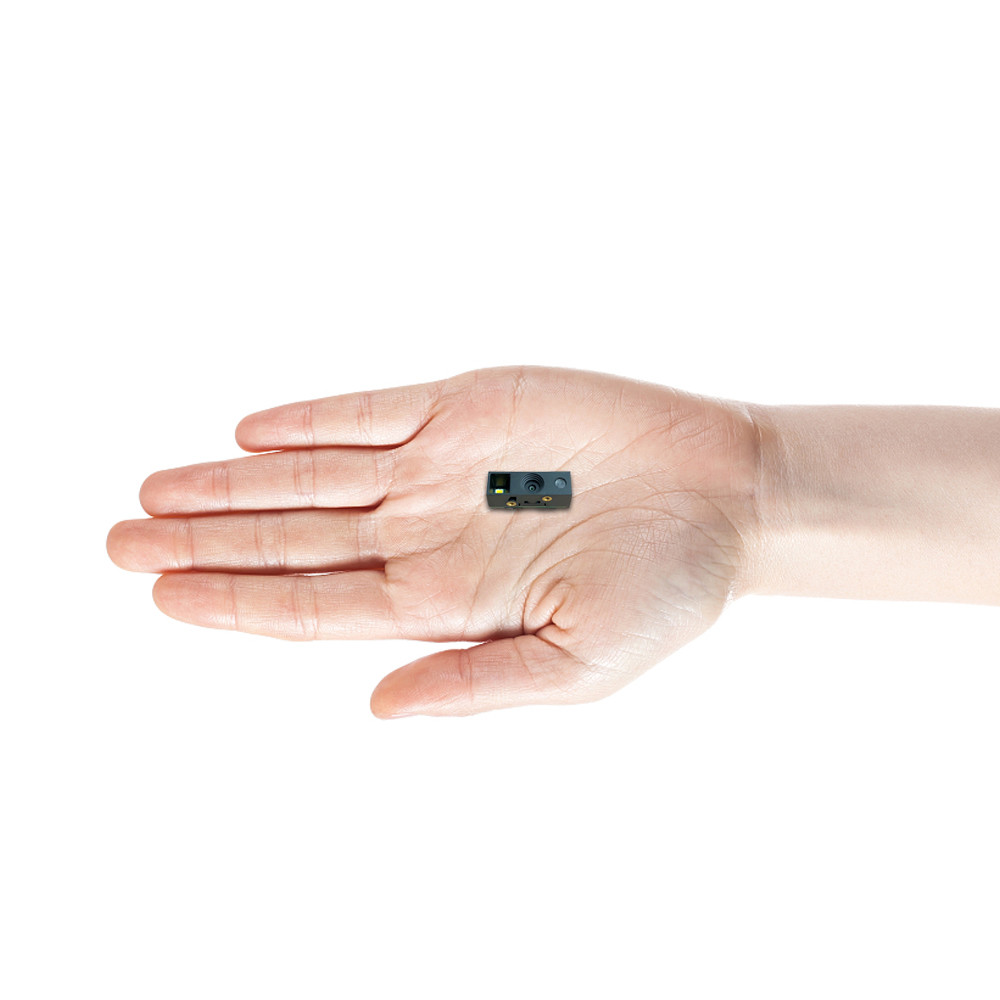

4. Lightweight and Small Size: 21.5*9*7mm

5. Good to read printed/screen 1D/2D barcodes

6. Good for Handheld Mobile Device



LV2097 Technical Parameter



Performance Image Sensor 640X480 CMOS
Illumination White LED
Aiming Laser 625nm
Symbologies 2D

QR, PDF417, Micro QR, Data Matrix

1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
Resolution* 3mil
Typical Depth of EAN13(13mil) 60mm-350mm
Field* PDF417(6.7mil) 50mm-125mm
Code39 (5mil) 40mm-150mm
Data Matrix (10mil) 45mm-120mm
QR Code(15mil) 30mm-170mm
Symbol Contrast* N20%
Scan Angle** Pitch: ±60°, Skew: ±60°, Roll: 360°
Field of View Horizontal: 42°, Vertical: 31.5°
Mechanical/ Interface TTL-232, USB
Electrical Dimensions (mm) 21.5(D)x9(D)x7(H)
Weight 1.2 g
Operating Voltage 3.3±10% VDC
Current @3.3 VDC Operating 138mA (typical)
Idle 11.8mA
Environmental Operating -20°C~+55°C
Storage -40°C~+70°C
Humidity 5%~95% (non-condensing)
Ambient Light 0-100000 lux (natual light)
Certifications FCC Parti 5 Class B, CE EMC Class B

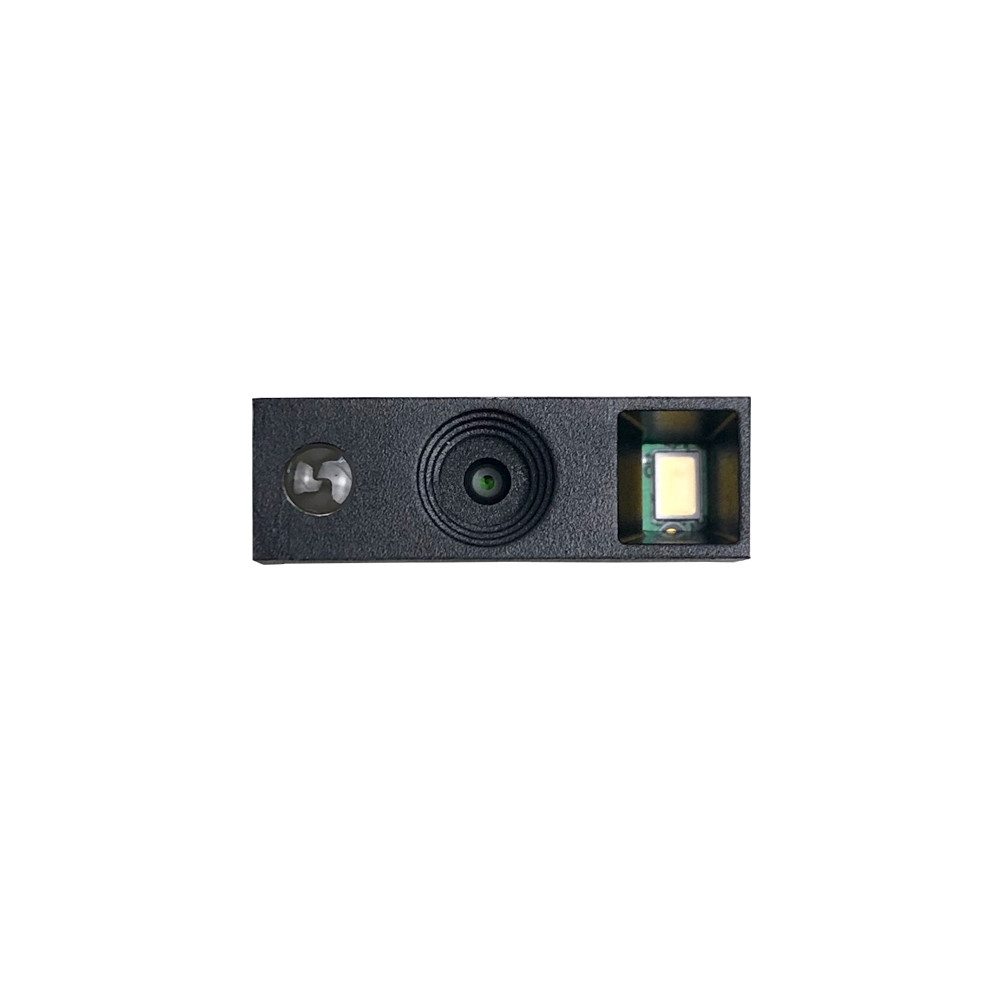

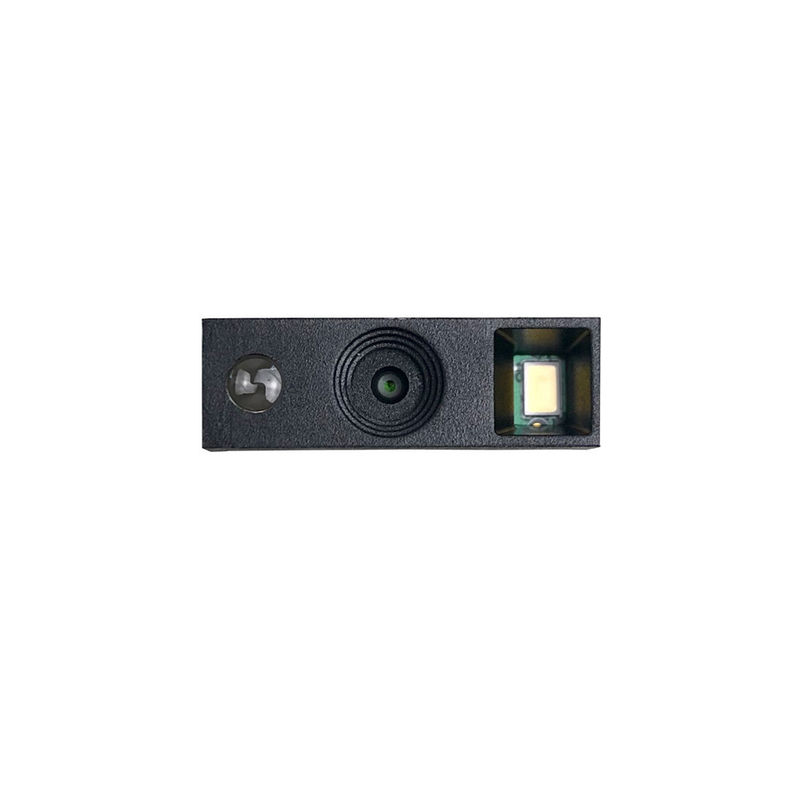

3mil Mini OEM 2D Barcode Scanner Module PDF417 Barcode Scan Engine 03mil Mini OEM 2D Barcode Scanner Module PDF417 Barcode Scan Engine 13mil Mini OEM 2D Barcode Scanner Module PDF417 Barcode Scan Engine 23mil Mini OEM 2D Barcode Scanner Module PDF417 Barcode Scan Engine 33mil Mini OEM 2D Barcode Scanner Module PDF417 Barcode Scan Engine 4



Applications of CMOS barcode scanner

Embedding into handheld device like mobile data collector, industrial tablet, meter reader or any other space constrained device.



Company Advantages:

1. Rakinda has been in Automatic Identification and Internet of Things since 2000

2. Several offices in Guangzhou, Shenzhen, Xiamen, Suzhou, Beijing and Chongqing.

3. We have more than 10 R&D personnels with over 20 years experience.

4. We can ship with fast express within 24 hours, and arrive customer in 3~7 days.



FAQ:



Q1: Can I get some samples? Are they free?
A1: We support 1-2pcs sample order. Samples should be paid.

Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us directly

according to the contact info. We will send you proper link directly.

Q3: What is your payment method?
A3: We accept Alibaba online orders by Credit card, PayPal ,T /T

Q4: How long is your warranty time?
A4: Our officially promised warranty time is 1 year after delivery.

Q5: Where can we download the user manual of the scanners?
A5: We will send by email after you get samples.

Q6: What's the lead time?
A6: For sample, it is typically within 5-7days by DHL. For bulk order, it depends on quantity and model you order.

Q7: Can you provide OEM service?
A7: Yes. We need further discuss about details.

Q8: If I come across any problem during product using, where I can get the support ?
A8: We support you technically 24h/7.please send all your questions to us. and we will give the professional,patient,

expliantion by email or call in time.

Q9: How do you ship the scanners usually?
A9: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail. We also can ship the goods by your shipping account or other express agent you provided.
