| Place of Origin: | China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE,FCC,ROHS |
| Model Number: | LV4500 Pro |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiation |
| Packaging Details: | 1PCS/Box |
| Delivery Time: | 5-8working days |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 200PCS/Week |
| Image Sensor: | 640*480 CMOS | Illumination: | 3000K White LED |
|---|---|---|---|
| Resolution: | ≥4mil | Scan Window: | 45mm×45mm |
| Interface: | S-232, USB 5VDC±5% | ||
| Highlight: | Contactless Automatic Hand Sanitizer,1000ML Automatic Hand Sanitizer,contactless hand sanitizer dispenser |
||
Built to withstand the toughest conditions, the LV4500 Pro is an IP65 rated barcode scanner designed for industrial durability. Its sealed housing is impervious to dust, water, and contaminants, ensuring reliable operation in demanding settings like warehouse logistics and outdoor kiosks. Operating in a wide temperature range from -20°C to 60°C, this rugged barcode reader guarantees consistent performance. The combination of an IR sensor and light sensor provides automatic triggering, boosting productivity in self-service kiosks and automated data collection systems without manual intervention.
Rugged Barcode Scanner Parameters
| Performance | ||
| Image Sensor | 640*480 CMOS | |
| Illumination | 3000K white LED | |
| Symbologies | 2D | PDF417, Data Matrix, QR Code, Micro QR, Aztec, etc |
| 1D | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Interleaved 2 of 5, Code 128 (FNC1), Code 93, ITF-6, ITF-14, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 11, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), MSI-Plessey, Code 39 (Code 39 FULL ASCII), Plessey, etc | |
| Resolution | 1D | ≥4mil |
| Typical Depth of Field | EAN-13 (13mil) | 0-170mm |
| Code 39 (20mil) | 15-200mm | |
| Code 128 (10mil) | 0-160mm | |
| QR Code (20mil) | 0-95mm | |
| Scan Window | 45mm×45mm | |
| Scan Modes | Sense mode, Continuous mode, Command mode | |
| Min. Symbol Contrast | 1D | 25% |
| Scan Angle 1 | Roll: 360°, Pitch: ±50°, Skew: ±50° | |
| Field of View | Vertical 70° , Horizontal 55° | |
| Physical | ||
| Interface | S-232, USB 5VDC±5% | |
| Operating Voltage Current@5VDC | 120mA | |
| Operating (RMS) Idle | 63mA | |
| Dimensions | 78.7(W)×47.7(D)×67.7(H)mm (max.) | |
| Weight | (without cable) 132g | |
| Notification | Beeper, multi-colored LED indicator | |
| Environmental | ||
| Operating Temperature | -20℃ to 60℃ (-4°F to 140°F) | |
| Storage Temperature | -40℃ to 85℃ (-40°F to 185°F) | |
| Humidity | 5%~95% (non-condensing) | |
| ESD | ±15kV (air discharge) ±8kV (direct discharge) | |
| Sealing | IP65 (not including interface) | |
| Accessories | ||

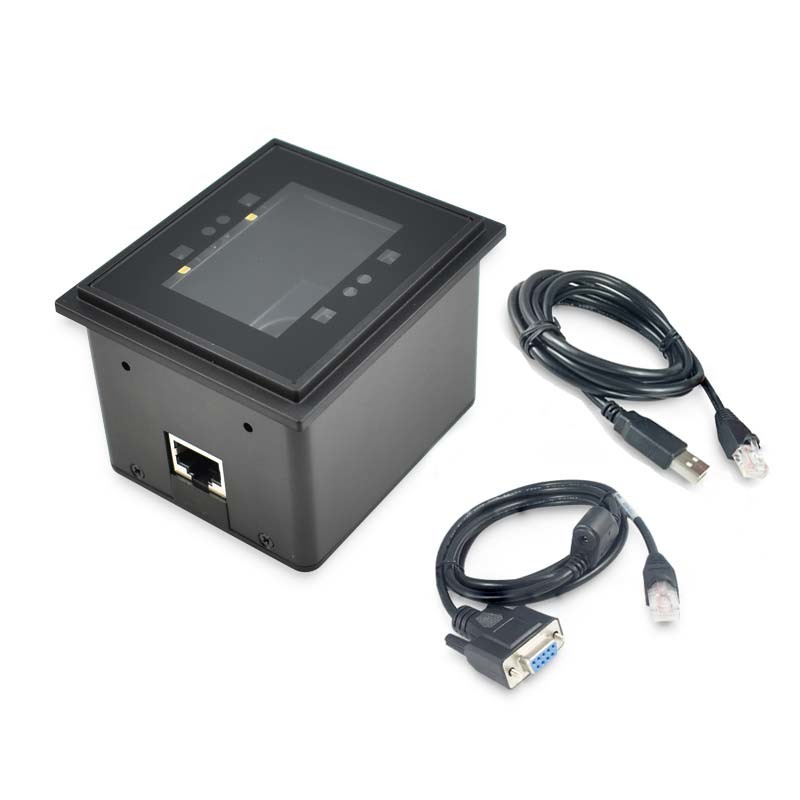

| Cable | Optional | USB cable used to connect the scanner to a host device. |
| Optional | RS-232 cable used to connect the scanner to a host device. | |
| Power Adapter | Optional | DC5V power adapter to provide power for the scanner with RS-232 cable. |
