RS232 LV3000H Industrial Fixed Barcode Scanner 1D 2D OCR MRZ

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE FCC Certificate
Model Number: LV3000H
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: Normal craft paper and foam
Delivery Time: Within 5 working days after receiving the balance
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 200PCS/Week
Image Sensor: 1280*800CMOS Resolution: 3mil
Symbologies: 1D 2D OCR MRZ Aztec Light Source: Cross Hair Aiming Light
Reading Mode: Sense Mode, Continuous Mode, Level Mode,Pulse Mode Certificate: CE FCC ROHS
High Light:

MRZ LV3000H Industrial Fixed Barcode Scanner

,

OCR LV3000H Industrial Fixed Barcode Scanner

,

MRZ fixed mount barcode reader

USB RS232 LV3000H 1D 2D OCR MRZ Fixed Barcode Scanner

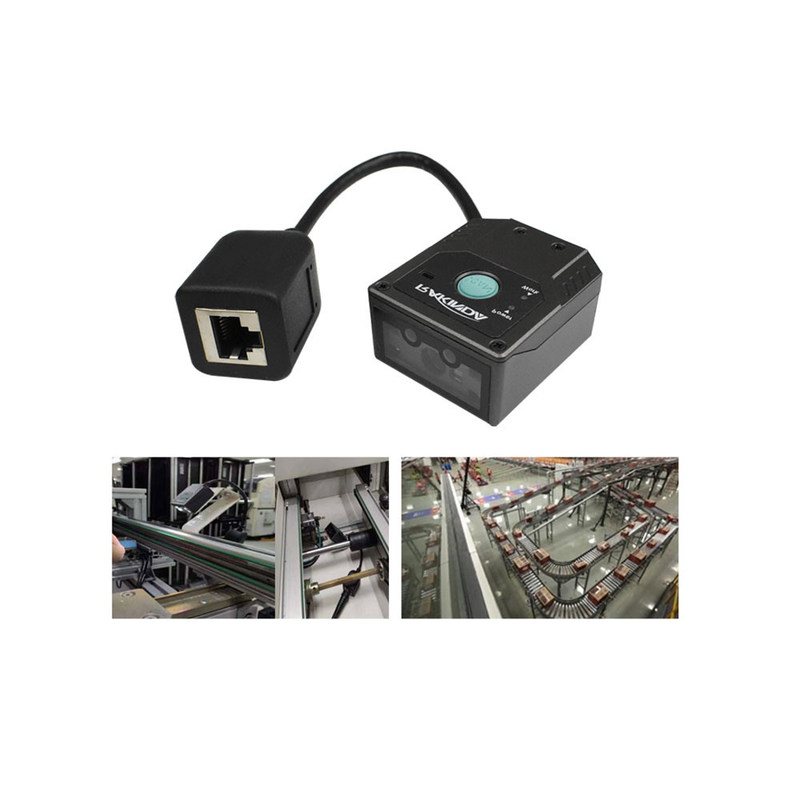

USB RS232 LV3000H 1D 2D QR Datamatrix OCR MRZ Reader in Production LineLV3000U Using In Productions Line
With the rapid development of modern enterprises, traditional production lines, in order to improve production efficiency and save costs, production labels supplemented with barcodes have gradually become a magic weapon for enterprises to quickly sort. Many enterprises have begun to transform into intelligent factories, and use the industrial fixed-type code reading equipment of the Rakinda module to solve the problem of bar code detection on the assembly line. At the same time, they can also use the bar code to count production data to achieve batch operations.



LV3000H QR Datamatrix Scanner in Production Line Application Cases

RS232 LV3000H Industrial Fixed Barcode Scanner 1D 2D OCR MRZ 0

LV3000H Fixed Mount QR Scanner Product Introduction:

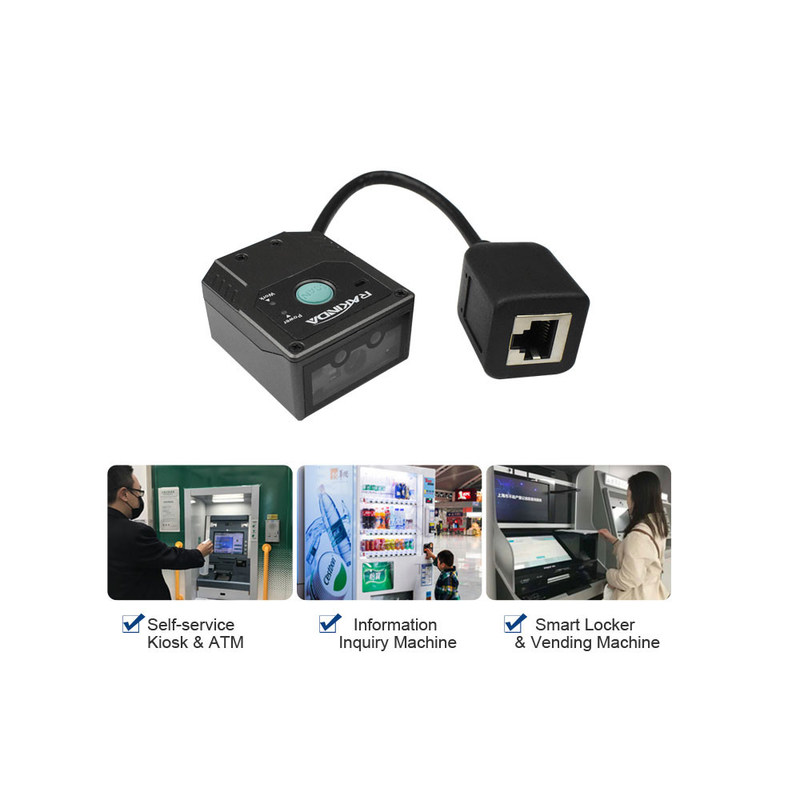

LV3000H fixed mount scanner adopts a unique fully integrated design, which fully integrates image acquisition, lighting aiming, etc., which is small, light and powerful. Suitable for use in products embedded in various industries, such as cash registers, data collectors, meter reading equipment, ticket checking machines, etc.


LV3000H QR Scanner Product Features:
1.I R/Light Triggers
2.A utomatic Exposure Control (AEC)
3. IP54-sealed Housing
4. Unmatched Reading Performance
5. Highly Visible Laser Aimer
6. 1.5m Drop Resistance



LV3000H OCR MRZ Reader Product Parameters

Performance Image Sensor 1280*800 CMOS
Illumination Aiming White LED Laser Diode or Gree LED
Symbologies 2D PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One, ect.
1D EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc.
Resolution >=3 mil
Typical Depth of Foeld EAN-13 55-360mm(13mil)
Code 39 70-180mm(5mil)
PDF417 55-160mm(6.7mil)
Data Matrix 50-170mm(10mil)
QR Code 40-210mm(15mil)
Scan Mode Sense mode, Continuous mode, Level mode, Pulse mode
Scan Angle Roll:360d, Pitch:±55°, Skew:±55°
Field of View Horizontal 51°, Vertical 32°
Min Symbol Contrast 25%
Mechanical Electric Interface RS-232, USB
Dimensions 63(W)*45(D)*28(H)
Weigh 75g
Notification Beep, LED indicator
Rated Power Consumption 1622mW(typical)
Operating Voltage 5VDC±-5%
Current SVDC Operating 276.8mA(typical), 322.7mA(max.)
Standby 83.3mA
Environmental Operating Temperature -20℃ to 60℃(-4℉ to140℉)
Storage Temperature -40℃ to 70℃ (-40℉ to 158℉)
Humidity 5% to 95% (non-condensing)
ESD ± 14kV (air discharge), ±8kV (direct discharge)
Drop 1.5m
Sealing IP68
Certifications FCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC
Environmental Cable USB Used to connect the LV3000U to a host device
RS-232 Used to connect the LV3000U to a host device
Power Adapter DC5V adapter to power the LV3000U with RS-232 cable





RS232 LV3000H Industrial Fixed Barcode Scanner 1D 2D OCR MRZ 1RS232 LV3000H Industrial Fixed Barcode Scanner 1D 2D OCR MRZ 2

LV3000H QR Datamatrix Scanner in Production Line Application Cases

RS232 LV3000H Industrial Fixed Barcode Scanner 1D 2D OCR MRZ 3



Company Profile:
Shenzhen RAKINDA Technology Co., Ltd. is specialized in the development of smart card hardware and software systems, production, sales and operations in one of the national high-tech enterprises. Products are widely used in city card, park area, retail businesses, parking fees, government platforms and other consumer areas. With years of focus on management, innovation and development, the company in the industry
Has a wide range of customer base and industry reputation, to achieve the city card applications and urban bus intelligent scheduling management.RAKINDA engaged in barcode technology research and development for more than 18 years, we have a mature R & D team and overseas markets, we can help you quickly and easily realize unattended dream.

RS232 LV3000H Industrial Fixed Barcode Scanner 1D 2D OCR MRZ 4RS232 LV3000H Industrial Fixed Barcode Scanner 1D 2D OCR MRZ 5



FAQ
Q: Can I get some samples? Are they free?
A: We support 1pc sample order. Samples should be paid.
Q: Can I get extra cables for the scanners?
A: Yes you can. We will provide according to your request.
Q: How can I buy?
A: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q: What is your payment method?
A: We accept online credit card, TT, Paypal, Western Union.
Q: Can I visit your factory:
A: Yes, you are warmly welcome.
Q: How long is your warranty time:
A: 1 Year.
Q: Where can we download the user manual of the scanners?
A: We will send by email after you get samples.
Q: What's the lead time?
A: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q: Can you provide OEM service?
A: Yes. We need further discuss about details.
Q: How do you ship the scanners usually?
A: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
