| Place of Origin: | China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE,FCC,ROHS |
| Model Number: | RD006 |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/box |
| Supply Ability: | 1000+PCS+Month |
| Image Sensor: | 752X480 | Light Source: | White LED |
|---|---|---|---|
| Symbologies: | PDF417, QR CODE, DATA MATRIX, Support Reading Screen And Printed Code | Reading Distance: | 10-55mm |
| Scan Angle: | 360° Full Angle | Power Input: | 9-18VDC |
| Working Current: | < 600mA | Barcode Or 2D Code Input: | Wiegand 26/ 34 Output, Output IC Card Number (common Read Head Function) And Associated Card Number Output In Compliance With QR Code Reservation Rules |
| Communication Interface: | RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth | ||
| Highlight: | Weigand 34 Reader Access Control Device,600mA Access Control Device,QR Mifard Card Reader |
||

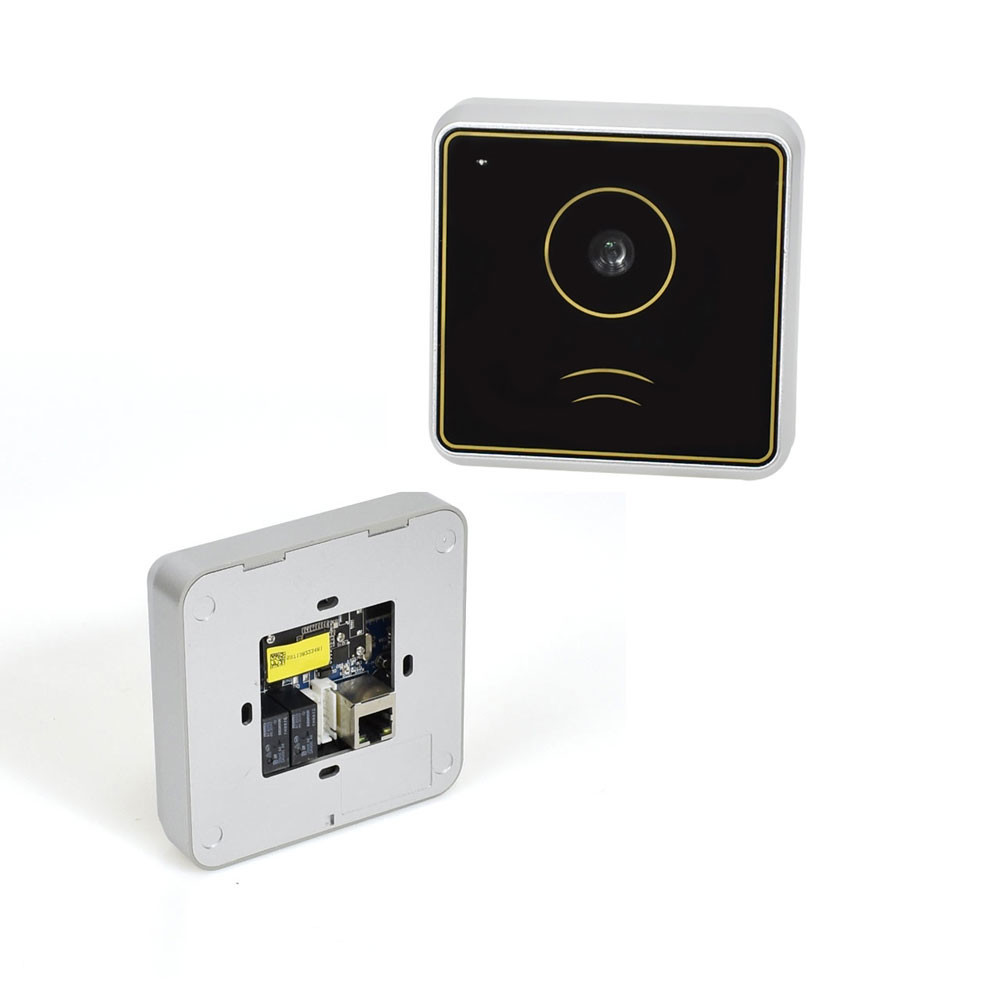

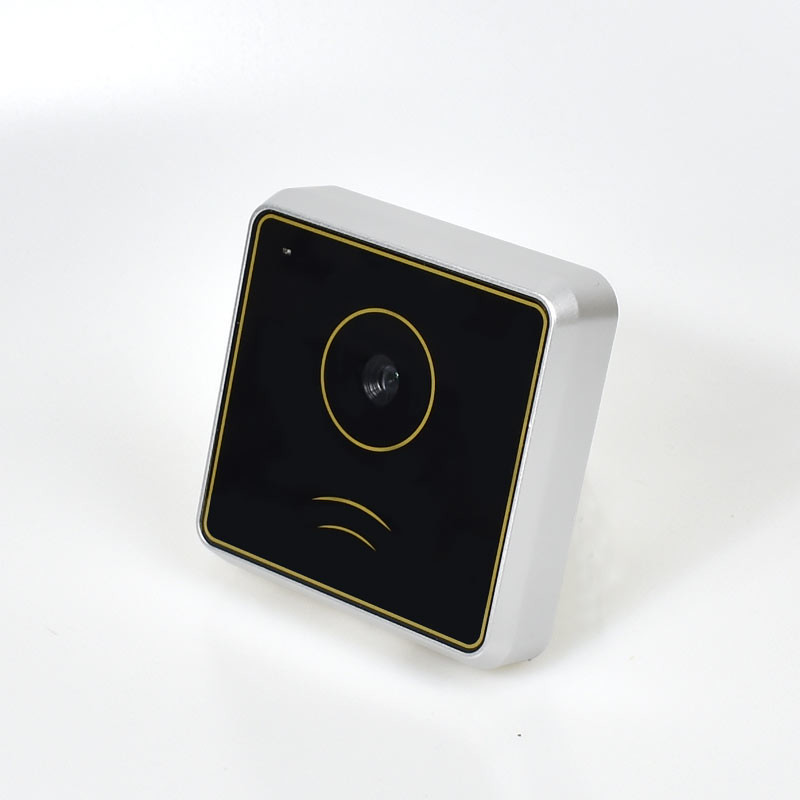

QR RFID NFC IC Card RJ45 Weigand 34 Reader Access Control System
The access control integrated machine is an access control product that combines a card reader and a controller into one. There are independent types and networking types. Simply put, the access control integrated machine is a machine that integrates the access control panel card reader. The high-end ones also include the keyboard and the display screen. It can be used as a complete access control system only by connecting the power supply.
Access control integrated machine is the core control equipment of the access control system. It has reliable data storage, no data loss when power off, and integrates management and automatic control. Realize the automatic management of access control, data can also be used for attendance, realize the dual functions of access control and attendance, and can be seamlessly connected with the card system.
RD006 QR IC Card Reader RJ45 TCP IP Access Control System QR Reader Selling Points:
1.QR+mifare card reader
2.TCP,IP weigand 26/34bit
3.Wifi , Bluetooth, POE optional
4. Free SDK ,API and engineer directly technical support.
RD006 QR NFC Reader Access Control Door System Product Parameters:
| 2D Code Engine Component Parameters | ||
| Image Sensor | 752X480 | |
| Light Source | White LED | |
| Symbologies | 2D: PDF417, QR CODE, DATA MATRIX, Support reading screen and printed code | |
| 1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc. | ||
| Reading Distance | 10-55mm | |
| Scan Angle | 360° Full Angle | |
| Input and Output Parameters | ||
| Power Input | 9-18VDC | |
| Working Current | < 600mA | |
| Can read like ISO14443Aor ISO14443B card serial number | Such as second-generation ID card, FM1208 CPU card, M1 card (Mifare S50, Mifare S70 IC card), SRIX4K, etc. | |
| Barcode or 2D code input | Wiegand 26/ 34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules | |
| Communication Interface | RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth | |
| Communication Protocol | Support TCP / UDP / HTTP | |
| Voice output | comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice | |
| Device input | 12V DC power input, 1 line gate input, 1 line exit button input, 1 line alarm input | |
| Equipment output | 2 way 250V/5A relay output, 1 way unlock, 1 way expansion can control door opener, light, water valve, etc. | |
| Wiegand output | Wiegand 26/34 output | |
| Dimensions | ||

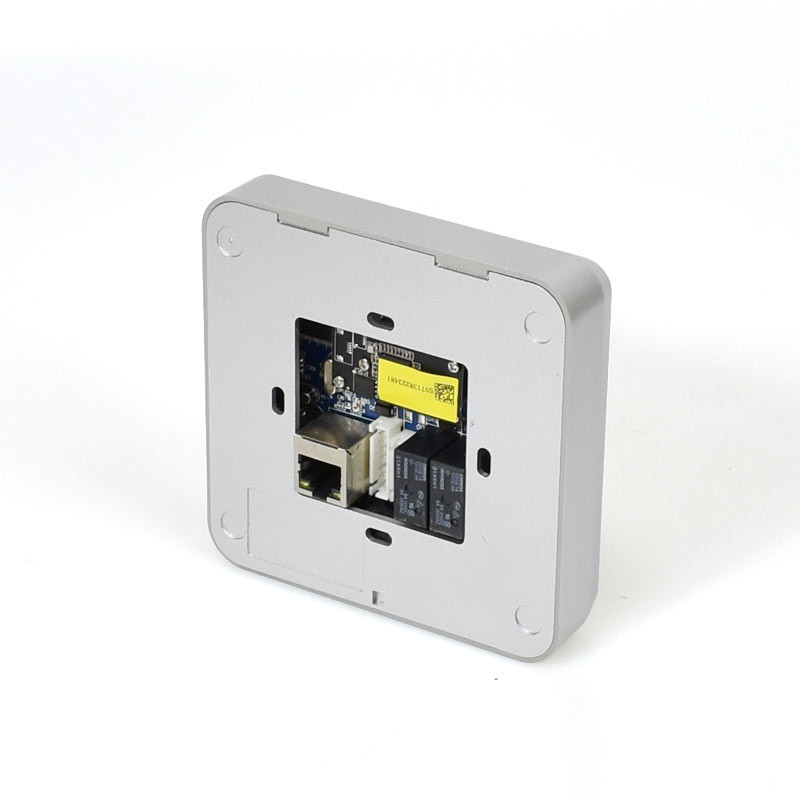

| Installation size& Wiring Diagram: |
152mm * 85mm * 35mm (L*W*H), Compatible with standard 86 box
|
|
RD006 QR Reader Access Control Door System Application Cases:
Application scenarios: Office buildings/residential areas, schools/educational institutions, medical institutions/elderly care institutions, libraries/museums, hotels/wholesale markets, stations/ports, banks, building property service centers, government service halls, etc. Closed or semi-closed place.
