| Place of Origin: | China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE,FCC,ROHS |
| Model Number: | RD6100 |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | 1pcs/box |
| Supply Ability: | 1000pcs per month |
| Weight: | 132g | Image Sensor: | 1280 * 1088 CMOS |
|---|---|---|---|
| Interface: | RS-232, USB, RS-485, Wiegand | Operating Voltage: | 5-24VDC±5% |
| Notification: | Beeper, Multi-colored LED Indicator | Sealing: | IP67 (not Including Interface) |
| Highlight: | 1000ML Thermal Sensor Hand Sanitizer,3W Thermal Sensor Hand Sanitizer,SS304 Thermal Sensor Kiosk Dispenser |
||

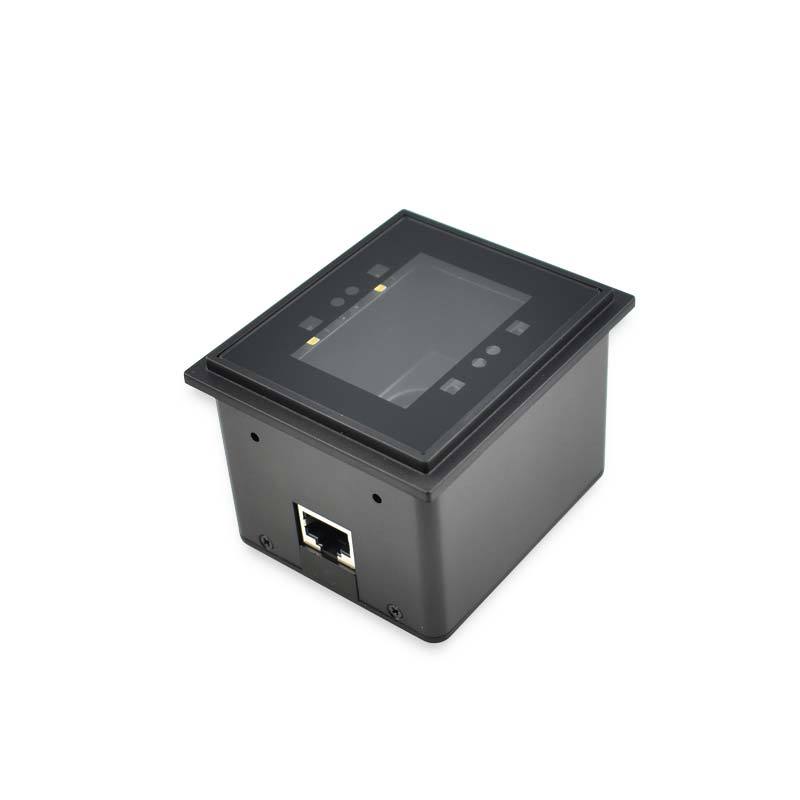

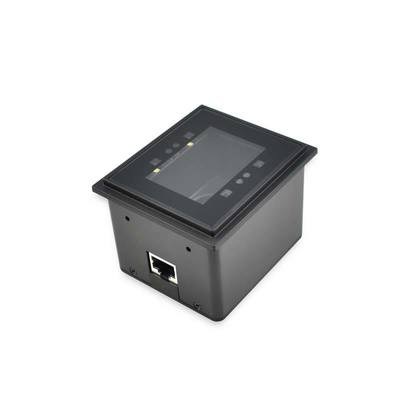

Fixed Position Scanner Product Description:

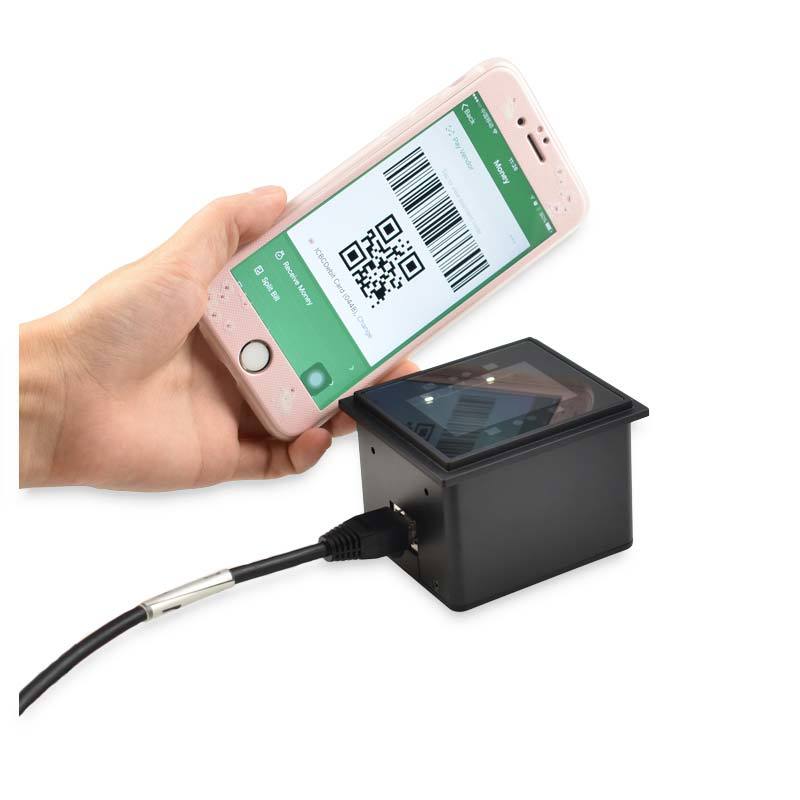

Enhance your customer interaction points with the RD6100 self-service kiosk barcode scanner. This versatile fixed scanner is perfect for retail kiosks, e-commerce pickup lockers, and information terminals. It excels not only at reading standard 1D/2D barcodes from screens and paper but also features advanced Passport OCR and ID Card OCR capabilities for secure identity verification. The optional NFC reader writer function allows for contactless card interactions, supporting payments or access control. Its compact design and IR/light sensor triggers enable a seamless, hands-free user experience.
2D Fixed Scanner Key Features:
* All-in-One Scanning Solution: Reads 1D/2D barcodes, passport MRZ, and various ID cards (OCR) for versatile application use.
* Optional NFC Functionality: Acts as an NFC scanner for reading/writing to cards and NFC-enabled phones.

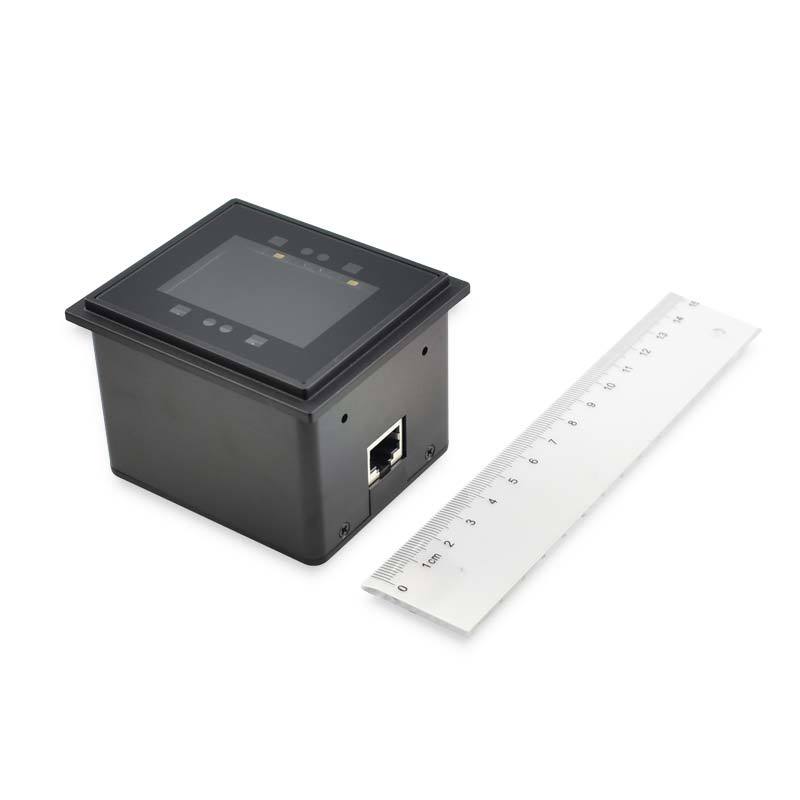

* Compact and Durable: Small form factor with IP67 sealing, ideal for integration into space-constrained kiosks and terminals.
* Smart Sensor Trigger: IR and light sensors automatically activate scanning, improving throughput and user convenience.
Fixed Mount Barcode Scanner Parameters:
| Performance | ||
| Image Sensor | 1280 * 1088 CMOS | Illumination 3000K white LED |
| Symbologies | 2D | PDF417, Data Matrix, QR Code, Micro QR, Aztec, etc. |
| 1D | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Interleaved 2 of 5, Code 128 (FNC1), Code 93, ITF-6, ITF-14, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 11, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), MSI Plessey, Code 39 (Code 39 FULL ASCII), Plessey, etc | |
| Postal | USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX Post, Australian Postal, Japan Post | |
| OCR | Passport OCR, Chinese ID Card, China Travel Permit OCR | |
| Physical | ||
| Interface | RS-232, USB, RS-485, Wiegand | |
| NFC (optional) 3 | Reading Distance Supported | 0-30mm |
| Functions | Support reading card number and card type, reading and writing sectors, increasing and decreasing values, reading and writing files, file operations, key operations, contactless CPU card operation (ISO14443 Type A) and APDU. | |
| Supported Cards | ID card, NFC-equipped phone, Mifare Classic, Mifare Plus, Mifare Ultralight/C/EV1, Mifare Desfire, CPU card, NTAG2x series, NTAG42x series, ICODE 2, Type B card ,Felica card | |
| Operating Voltage | 5-24VDC±5% | |
| Current@5VDC | NFC Version | Non-NFC Version |
| Operating (RMS) 4 Idle | 220mA | 172mA |
| 175mA | 118mA | |
| Dimensions | ||
| Weight | 132g | |
| Notification | Beeper, multi-colored LED indicator | |
| Environmental | ||
| Operating Temperature Storage Temperature | -20℃ to 60℃ (-4°F to 140°F) | |
| Humidity | -40℃ to 85℃ (-40°F to 185°F) 5%~95% (non-condensing) | |
| ESD | ±15kV (air discharge) ±8kV (direct discharge) | |
| Sealing | IP67 (not including interface) | |
| Accessories | ||
| Cable | Optional | |
| Optional | ||
| Optional | ||
| Optional | ||
| Power Adapter | USB cable used to connect the scanner to a host device. | |
| RS-232 cable used to connect the scanner to a host device. | ||
|
RS-485 and Wiegand cables used to connect the scanner to a host device. DC5V power adapter to provide power for the scanner with RS-232 cable. |
||
