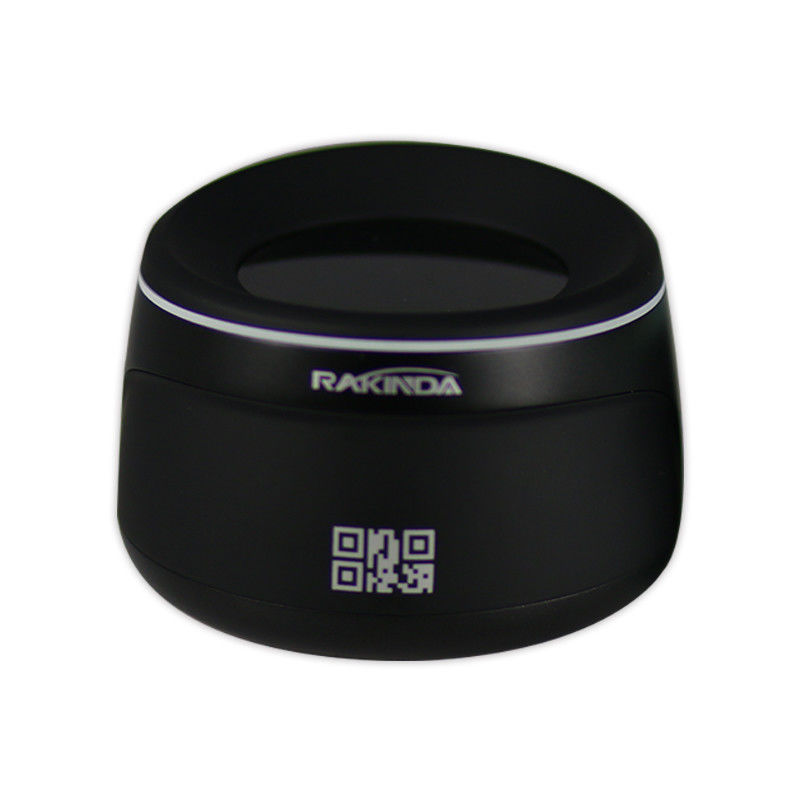

RS232 Interface 1D 2D Barcode Reader Module Sense Mode With Soft LED

RS232 Interface 1D 2D Barcode Reader Module Sense Mode With Soft LED

RS232 Interface 1D 2D Barcode Reader Module Sense Mode With Soft LED

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Rakinda
Certification: CE FCC ROHS
Model Number: RD4100

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: package in carton;
Delivery Time: 3-10 working days
Payment Terms: Western Union, T/T, paypal
Supply Ability: 1000 piece for a week
Contact Now
Detailed Product Description
Name: Barcode Reader Module Weight: 300g
Processor: IOTC 0370 CHIP Scan Mode: Sense Mode
PCS: ≥30% Dimensions: 90mm(Diameter) X 60mm(H)

RS232 Interface 1D 2D Barcode Reader Module Sense Mode With Soft LED

Designed primarily for such applications as electronic tickets/coupons, mobile marketing and office automation, the series fixed mount barcode scanner is able to read barcodes from paper and mobile phones.

Barcode Reader Module Features:
1. Outstanding Power Efficiency
The advanced technology incorporated in the scanner helps to reduce the power consumption and prolong the service life of the device
2. IR Trigger
The IR sensor in the scanner exhibits an improved sensibility in activating the scanner to scan barcodes as they are presented. Markedly increasing throughout and productively.
3. High-capacity Barcode Reading Capacity
Equipped with a sizable scan window, the scanner has he ability to scan barcodes containing large amounts of data.





Processor IOTC 0370 CHIP
Interface RS-232 (9.6~115.2Kbps)
USB 1.1(HID-KBW, HID-POS)

Image Sensor 752× 480 CMOS
  2D: PDF417, Data Matrix, QR Code
  1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
  Codabar, Code 128, Code 93, ITF-6, ITF-14,
Symbologies Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
  Matrix 2 of 5, GS1 Databar (RSS-Expand,
  RSS-Limited, RSS-14), Code 39, Code 11,
  MSI-Plessey, Plessey
Scan Mode Sense mode
Resolution 10 mil
Light Source White LED
Scan Window 38.3mm*60.4mm
PCS ≥30%
FOV Diagonal: 85°, Horizontal: 63.7° , Vertical: 70°
Ambient Light 0 ~ 100,000 LUX
Power Consumption 1.75W (max.)
Power Adapter Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz
Notification Beep
Dimensions 90mm(Diameter) x 60mm(H)
Weight 300g
Operating Temperature -10℃ to + 50 ℃
Storage Temperature -20℃ to + 60 ℃
Humidity 5% - 95%(non-condensing)
Certification FCC Part15 Class B, CE EMC Class B





RS232 Interface 1D 2D Barcode Reader Module Sense Mode With Soft LED
