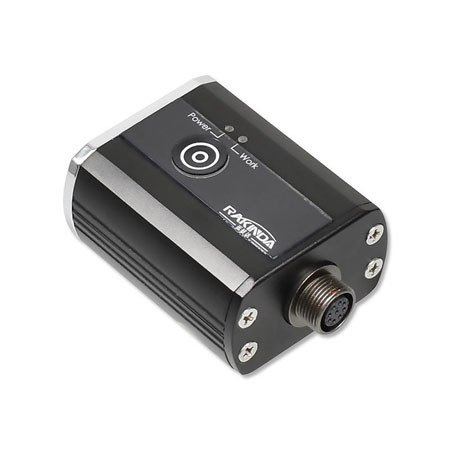

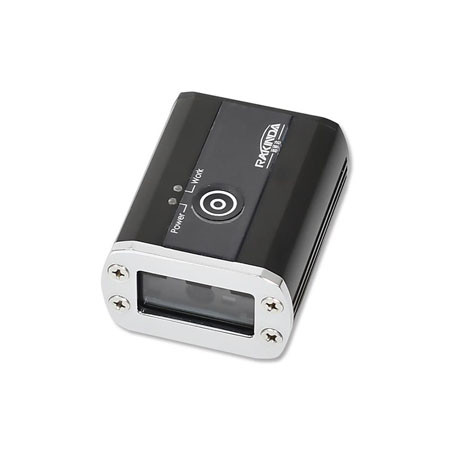

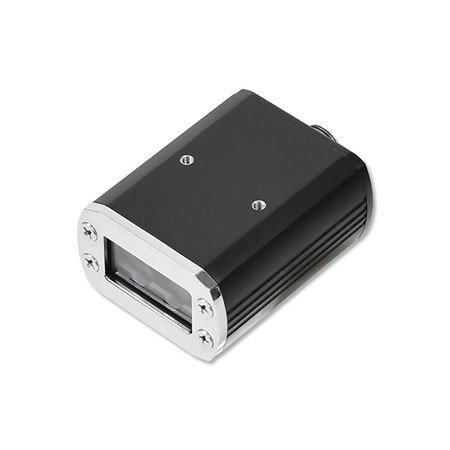

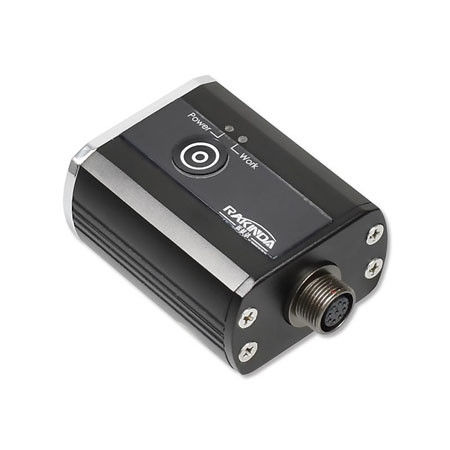

Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAKINDA
Certification: CE, RoHS
Model Number: LV3000UPLUS
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Normal craft paper and foam
Delivery Time: Within 5 working days after receiving the balance
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 200PCS/Week
Image Sensor: 1280*800 CMOS Illumination Aiming: White LED Laser Diode Or Gree LED
 Resolution: >=3 Mil Interface: RS-232, USB
Weigh: 75g Dimensions: 63(W)*45(D)*28(H)
High Light:

CMOS Fixed Barcode Reader

,

RS-232 Fixed Barcode Reader

,

IP68 Android Barcode Scanner

Rakinda LV3000U PLUS Industrial Fixed Barcode Reader Android Barcode Scanner Module
Fixed Mount Barcode Scanner Product Features
* IR / light sensor dual trigger mode
* Excellent 1D/2D barcode reading performance * Automatic exposure control
* Clear laser cross aiming light
* IP68 protection rating * 3 m anti-drop





Courier Cabinets, Ticket Checking Machines, Display Kiosks, Various Self-service Cabinet Application Equipment, Etc., Very Suitable for Use in Various Production Lines, Assembly Line Barcodes Detection and Scanning.

Product Parameters

Performance Image Sensor 1280*800 CMOS
Illumination Aiming White LED laser diode or gree LED
Symbologies 2D PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One, ect.
1D EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc.
Resolution >=3 mil
Typical Depth of Foeld EAN-13 55-360mm(13mil)
Code 39 70-180mm(5mil)
PDF417 55-160mm(6.7mil)
Data Matrix 50-170mm(10mil)
QR Code 40-210mm(15mil)
Scan Mode Sense mode, Continuous mode, Level mode, Pulse mode
Scan Angle Roll:360d, Pitch:±55°, Skew:±55°
Field of View Horizontal 51°, Vertical 32°
Min Symbol Contrast 25%
Mechanical Electric Interface RS-232, USB
Dimensions 63(W)*45(D)*28(H)
Weigh 75g
Notification Beep, LED indicator
Rated Power Consumption 1622mW(typical)
Operating Voltage 5VDC±-5%
Current SVDC Operating 276.8mA(typical), 322.7mA(max.)
Standby 83.3mA
Environmental Operating Temperature -20℃ to 60℃(-4℉ to140℉)
Storage Temperature -40℃ to 70℃ (-40℉ to 158℉)
Humidity 5% to 95% (non-condensing)
ESD ± 14kV (air discharge), ±8kV (direct discharge)
Drop 1.5m
Sealing IP68
Certifications FCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC

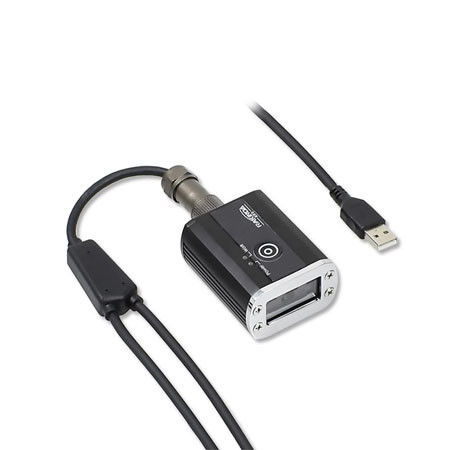

Environmental Cable USB Used to connect the LV3000U to a host device
RS-232 Used to connect the LV3000U to a host device
Power Adapter DC5V adapter to power the LV3000U with RS-232 cable





Application Scenario



Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode 0





LV3000U Plus Barcode Scanner Datasheet.pdf

Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode 1Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode 2Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode 3Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode 4Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode 5Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode 6Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode 7Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode 8Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode 9Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode 10
