Single Way 13.56MHz Barcode Door Access System Long Service Life RD008

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE FC ROHS
Model Number: RD008
Minimum Order Quantity: 1 PCS
Price: negotiation
Packaging Details: packing in carton
Delivery Time: 1-3 work days
Supply Ability: 100 pcs per week
Supply Voltage: 9-15V Average Trouble-free Working Time: ≥25000h
Battery: 8pcs No. 5 Alkaline Battery 1.5V Reader: 1D/2D
Name: Barcode Door Access System Frequency: 13.56MHz
High Light:

13.56MHz qr access control reader


TCP Barcode Door Access System


13.56MHz Barcode Door Access System

Single Way 13.56MHz Barcode Door Access System Long Service Life RD008


Single Way IC Card Bluetooth QR Code 13.56MHz Frequency Long Service Life RD008

RD008 Phone screen reader main features:

1. Embedded multi-tasking real-time operating system, the system can be fully started in 3 seconds.

2. Single door network access control + QR code scanning head + IC card reader triple product. Make the on-site

installation and maintenance simple and cost-effective.

3. The product comes with a voice amplifier and speaker. The voice for common entry and exit events can be set.

The network can control nearly 150 voices and can customize the voice.

4. Encrypted QR code that complies with the agreed rules can be opened / opened directly when not connected to

the Internet.The agreed rules mainly include: 1) the start time and end time of the two-dimensional code valid; 2) the number of

times the two-dimensional code is valid and exceeds the number of uses, the two-dimensional code can no longer be used; 3)

equipment MAC matching or project number building number Match, a QR code can contain one or more device numbers, which

can be legally valid on multiple devices; 4) The encryption key of the QR code can be modified without leaving any backdoors or

loopholes to ensure the security of the QR code.

5. Common parameters such as network IP parameters, lock delay, Wiegand 26/34, etc. can be set directly through the QR code,

making site commissioning easier

6. Equipment capacity: 35,000 cards, 50,000 records, 100,000 QR codes, and records and QR codes exceeding the capacity will be automatically covered.

Single Way 13.56MHz Barcode Door Access System Long Service Life RD008 0


Technical Parameters

Processor ARM+DSP core
Memory 85,000 people, 100,000 events
Verification Speed QR code recognition <0.5S, card recognition <0.1S
Communication Method TCP/IP access, expandable WIFI
Run Offline Support offline operation
Input and Output Ports Control lock output, exit button and door sensor input, etc.
Security Input overcurrent protection, instantaneous overvoltage protection
Power/power Consumption Voltage 12VDC, current <1A

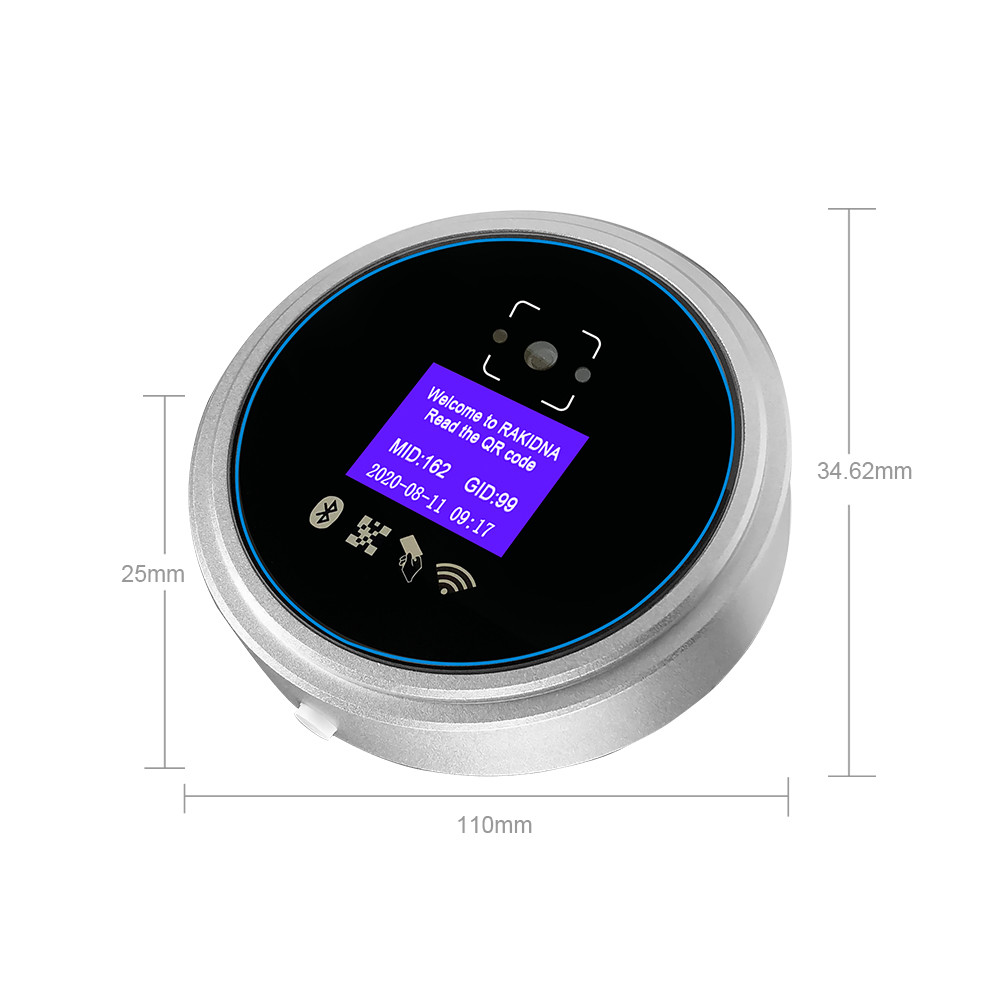

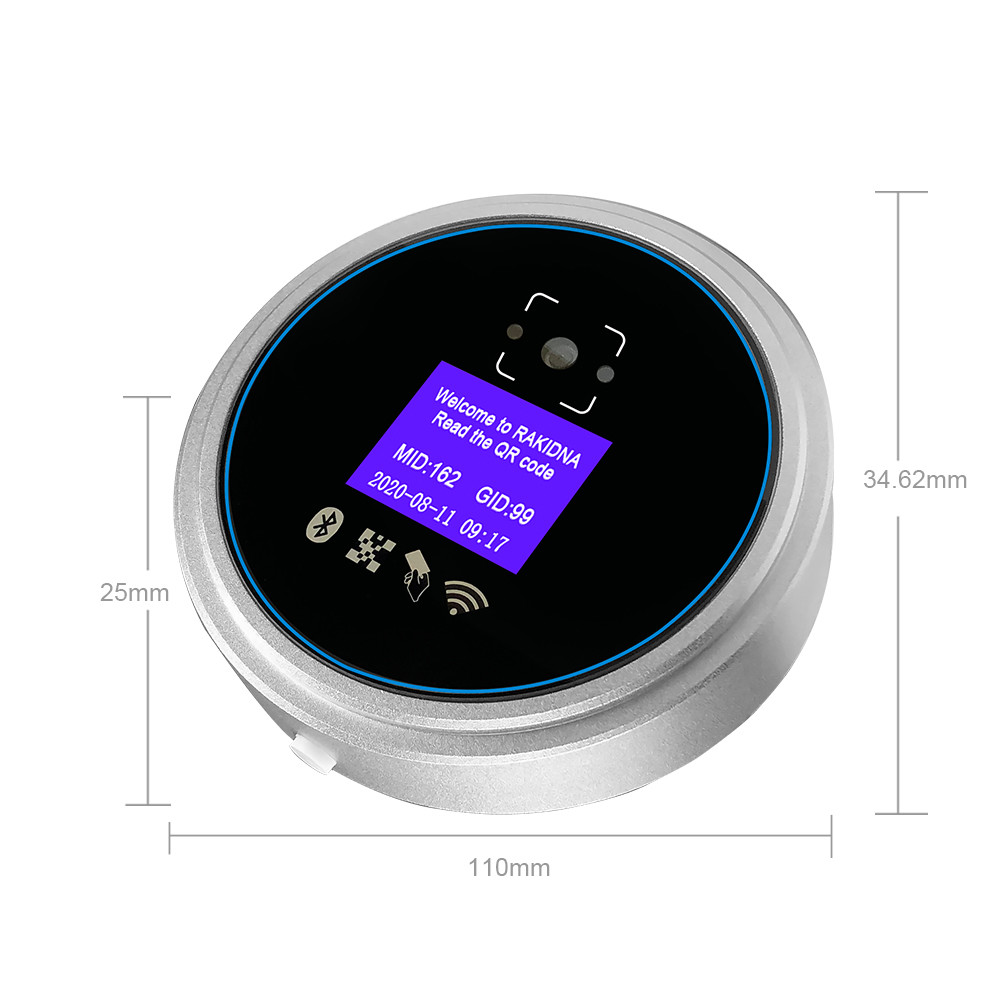

Product Size 110 mm in diameter, 25-34.62 mm in thickness
Weight 400g
Working Environment Humidity 5%~95%, temperature -20℃~60℃


Single Way 13.56MHz Barcode Door Access System Long Service Life RD008 1

Single Way 13.56MHz Barcode Door Access System Long Service Life RD008 2


Q1: Can I get some samples? Are they free?
A1: We support 1-2pcs sample order. Samples should be paid.


Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us directly

according to the contact info. We will send you proper link directly.


Q3: What is your payment method?
A3: We accept Alibaba online orders by Credit card, PayPal ,T /T


Q4: How long is your warranty time?
A4: Our officially promised warranty time is 1 year after delivery.


Q5: Where can we download the user manual of the scanners?
A5: We will send by email after you get samples.


Q6: What's the lead time?
A6: For sample, it is typically within 5-7days by DHL. For bulk order, it depends on quantity and model you order.


Q7: Can you provide OEM service?
A7: Yes. We need further discuss about details.


Q8: If I come across any problem during product using, where I can get the support ?
A8: We support you technically 24h/7.please send all your questions to us. and we will give the professional,patient,

expliantion by email or call in time.


Q9: How do you ship the scanners usually?
A9: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail. We also can ship the goods by your shipping account or other express agent you provided.
