| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Brand Name: | RAKINDA |
| Certification: | CE EN55022 , FCC Part 15 Class B , CE EMC Class B |
| Model Number: | RK360 |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotiation |

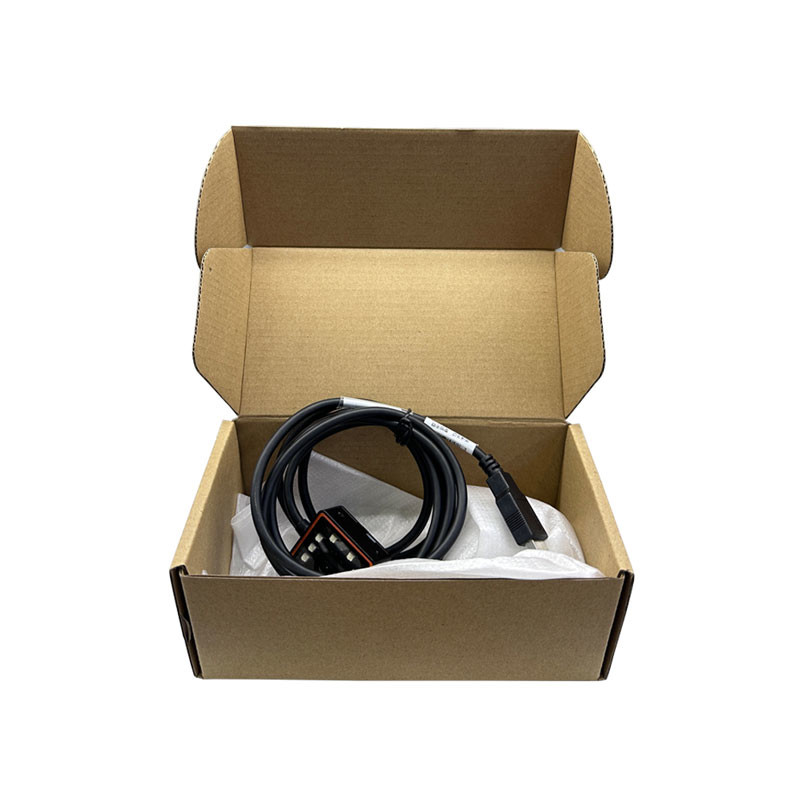

| Packaging Details: | Normal craft paper and foam |
| Delivery Time: | Within 5 working days after receiving the balance |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 200PCS/Week |
| Resolution Ratio: | 080 (H) * 1280 (V) 1.3M High-performance Sensor | Chip: | ARM Cortex-A7,1.2G High-performance CPU, MIPI Interface |
|---|---|---|---|
| Field Of View Angle: | Orizontal (H) 36°, And Vertical (V) 43° | Communication: | RS232, USB (HID; CDC), EA100: Ethernet / TCP / IP |
| Case Protection: | IP65 | Appearance Size: | 38 (W) 38 (D) 19 (H) (mm), The Part Without The SR |
| Highlight: | barcode reader scanner,handheld uhf rfid reader |
||

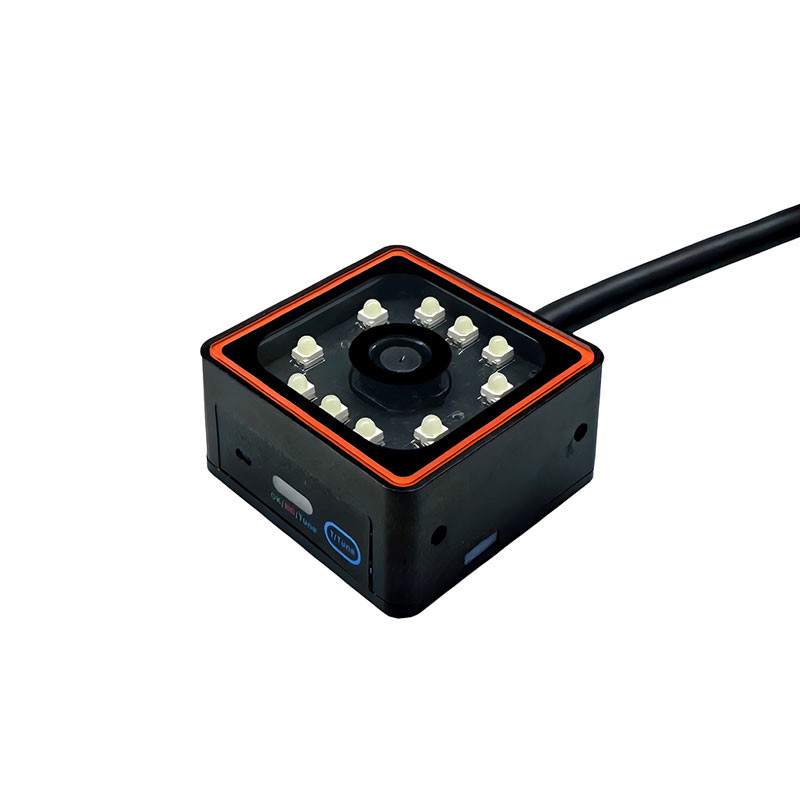

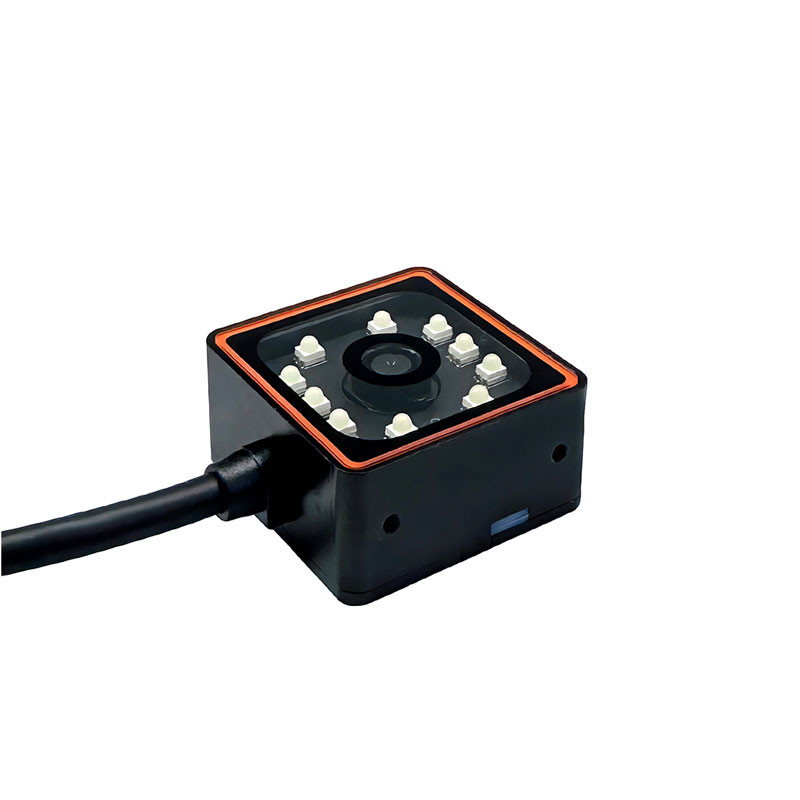

With its sleek design and advanced barcode recognition capabilities, this small yet powerful barcode scanner is transforming industrial automation. Equipped with a megapixel high-resolution image sensor, it can efficiently read both 1D and 2D barcodes. The scanner offers anti-vibration, anti-dirt, and adaptive brightness features, ensuring high reliability even in tough environments. Its compact, lightweight design allows for easy installation, making it an ideal choice for various industrial applications. Built with a high-strength aluminum alloy shell and an IP65 protection rating, it is resistant to dust and low-pressure water splashes. The wide-angle lens and third-generation decoding technology ensure optimal performance, even when scanning fast-moving objects.
Product Features:
- Megapixel Image Sensor: The 1280x1080 high-resolution sensor enhances barcode recognition accuracy, ensuring swift and accurate scanning of a wide range of barcodes.
- Compact & Easy Installation: Designed with self-developed barcode recognition technology, the scanner offers efficient performance in a compact size, making it perfect for space-constrained environments.
- Durable & Reliable: The sturdy aluminum alloy housing, paired with an IP65 rating, protects the device from dust and water splashes, ensuring long-lasting durability in industrial settings.
- Wide Viewing Angle & High Frame Rate: The optical lens offers a 36° horizontal and 43° vertical viewing angle, with a 60FPS frame rate. Combined with third-generation decoding technology, it delivers superior performance for dynamic barcode reading.
This product is ideal for businesses seeking to boost efficiency and accuracy in industrial automation with cutting-edge barcode scanning technology.
Parameters of Ethernet Barcode Reader
| Parameter List | ||
| Performance And Specification Parameters Table | ||
| Resolution Ratio | 1080 (H) * 1280 (V) 1.3M high-performance sensor | |
| Lighting | 10 LEDs (3 up and down, 2 left and right), red light source | |
| The Main Chip | ARM Cortex-A7,1.2G High-performance CPU, MIPI interface | |
| Aim At The Instructions | High-brightness red dots aim | |
| Reading Mode | Automatic induction, continuous mode, pulse mode (external trigger) | |
| Field Of View Angle | Horizontal (H) 36°, and vertical (V) 43° | |
| 1D Reading Code System | UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 | |
| Code11, Codabar , Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 | ||
| Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded | ||
| RSS-14 Limited ,Composite Code | ||
| 2D Reading Code System | PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , Maxi Code | |
| Poor Movement Capacity | Continuous scan mode: 0.5 m per second | |
| External trigger mode: 1.0-1.5 m per second | ||
| Data Interface | ||
| Communication | RS232, USB (HID; CDC), EA100: Ethernet / TCP / IP | |
| External Input | With external trigger line or control box: 1 optical coupling isolation input (NPN / PNG / relay) | |
| External Output | Version of the connection control box: 2 optical coupling isolation output (Good; NG) | |
| Supply Electricity | Direct connection version: 5VDC, control box: 5-24 VDC (network port support POE power supply) | |
| Physical Characteristics | ||
| Appearance Size | 38 (W) 38 (D) 19 (H) (mm), the part without the SR | |
| Weight | The host machine is about 40g, without the weight of the wire rod | |
| Case Material | Alufer | |
| Case Protection | IP65 | |
| Reliability | ||
| Storage Temperature | -40℃~+70℃ | |
| Working Temperature | -10℃~+50℃ | |
| Relative Humidity | 5%~95% (no condensation) | |
| Ambient Brightness | 0~8,600 Lux (fluorescent) 0~100,000 Lux (daylight) | |
| Safe Code | CE EN55022 , FCC Part 15 Class B , CE EMC Class B | |
| Work Vibration | 10 to 150HZ,0.5G, 3 axial, 1min / ct, 1 time / axial | |
| Durable Vibration | 10 to 150 HZ, 2G, 3 axial, 1min / ct, 20 times / axial direction | |
| Typical Read Code Depth Of Field | ||
| The Focal Range is Adjustable | HD | SR |
| Read Accuracy | 1D ≧3 mil ; 2D ≧5 mil | 1D ≧3 mil ; 2D ≧7 mil |
| Typical Depth Of Field / DOF | Code39(3mil):40~140mm QR (5mil) : 45 ~105mm Code39(5mil):35 ~210 mm EAN-13(13mil):30~320mm |
Code39(3mil) : 45 ~150 mm Code39(5mil) : 30 ~255 mm EAN-13 (13 mil) : 30 ~500m m |
