Hotel Home Wiegand Barcode Door Access System QR Reader Scanner

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAKINDA
Certification: CE, RoHS
Model Number: RD006
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Normal craft paper and foam
Delivery Time: Within 7 working days after receiving the balance
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 500PCS/ week
Power IN: 9-18VDC Interface: HTTP TCP IP RJ45 Weigand
Image Sensor: 752*480 CMOS IC Card Support: ISO14443A Series Card
High Light:

Wiegand Barcode Door Access System

,

Wiegand QR Reader Scanner

,

RJ45 Barcode Door Access System

Hotel Home Wiegand Barcode Door Access System QR Reader Scanner



Hotel Home Intelligent Door Lock With QR Reader Barcode Scanner IC Card Scanner with Controller Weigand Output




RD006 Selling Points:

1. QR+mifare card reader
2. TCP,IP weigand 26/34bit
3. Wifi , Bluetooth, POE on optional
4. Free SDK ,API and engineer directly technical support.



Nowadays more and more Residential area, office area, factory using the access control device for managing the visitor visit. As it is more intelligent and more convenient. Our RD006 can read both Mifare card and QR codeto get access. And POE,Wifi and Bluetooth is optional. Its reading card region is very wide and can read card even in 20mm.

Rakinda Keep pace with times and research and development on access control system: RD006 that using in many places. The product has wiegand 26/34 output when the product is used as 1D 2D code reader, It's a kind of access control using 2D barcodes scanning based on TCP / IP based network.It can read QR code and mifare card both.





Product Parameters:

2D Code Engine Component Parameters
Image Sensor 752X480 CMOS
Light Source White LED
Symbologies 2D: PDF417, QR CODE, DATA MATRIX, Support reading screen and printed code
1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc.
Reading Distance 10-55mm
Scan Angle 360° Full Angle
Input and Output Parameters
Power Input 9-18VDC
Working Current < 600mA
Can read like ISO14443Aor ISO14443B card serial number Such as second-generation ID card, FM1208 CPU card, M1 card (Mifare S50, Mifare S70 IC card), SRIX4K, etc.
Barcode or 2D code input Wiegand 26/ 34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules
Communication Interface RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth
Communication Protocol Support TCP / UDP / HTTP
Voice output comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice
Device input 12V DC power input, 1 line gate input, 1 line exit button input, 1 line alarm input
Equipment output 2 way 250V/5A relay output, 1 way unlock, 1 way expansion can control door opener, light, water valve, etc.
Wiegand output Wiegand 26/34 output
Dimensions
Installation size 152mm * 85mm * 35mm (L*W*H), Compatible with standard 86 box

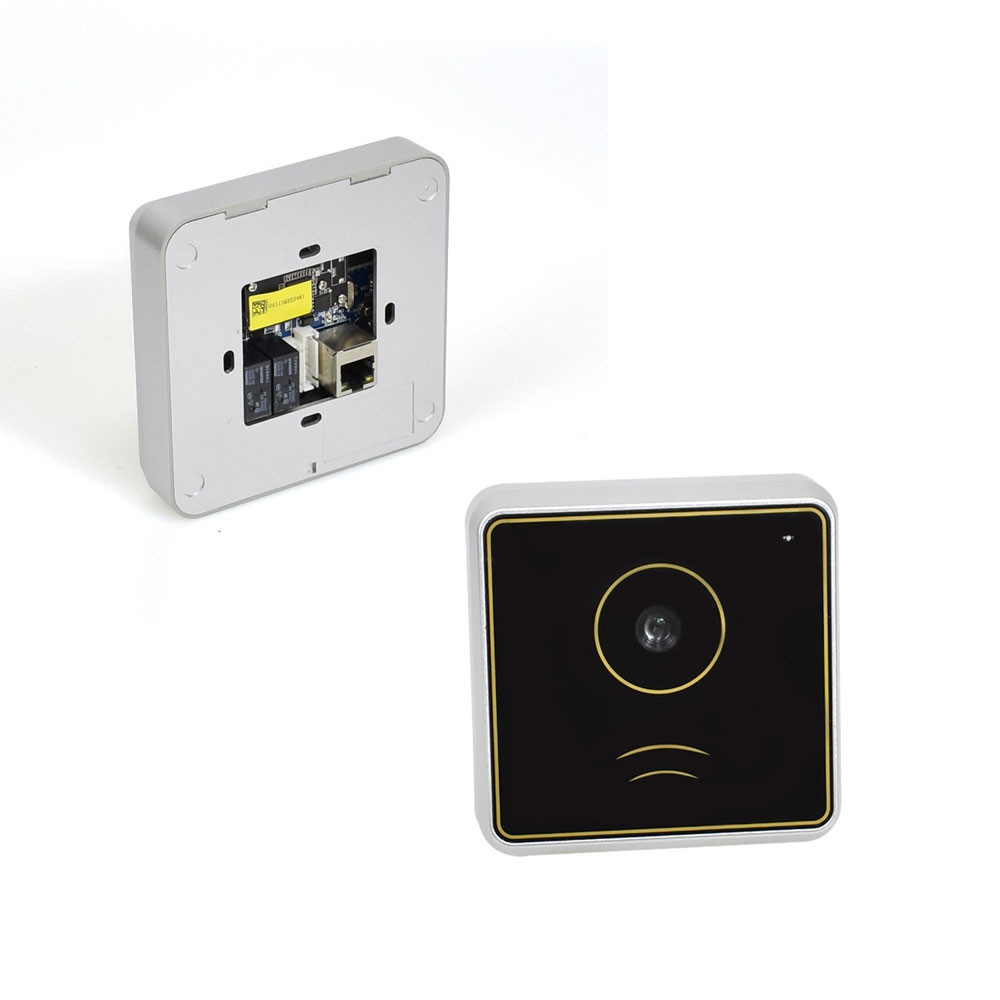

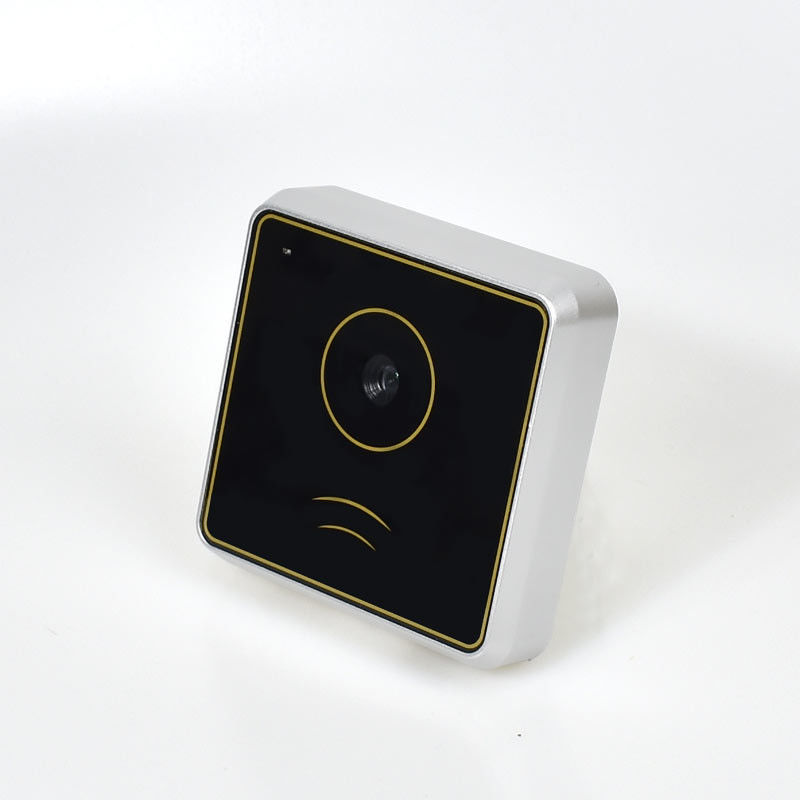

Hotel Home Wiegand Barcode Door Access System QR Reader Scanner 0Hotel Home Wiegand Barcode Door Access System QR Reader Scanner 1Hotel Home Wiegand Barcode Door Access System QR Reader Scanner 2

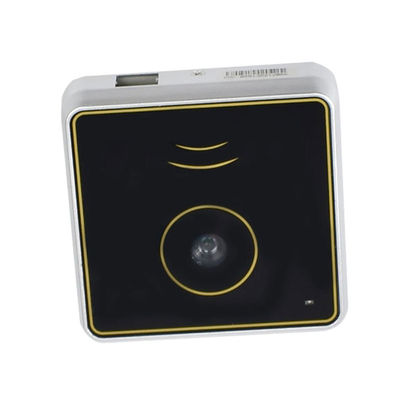

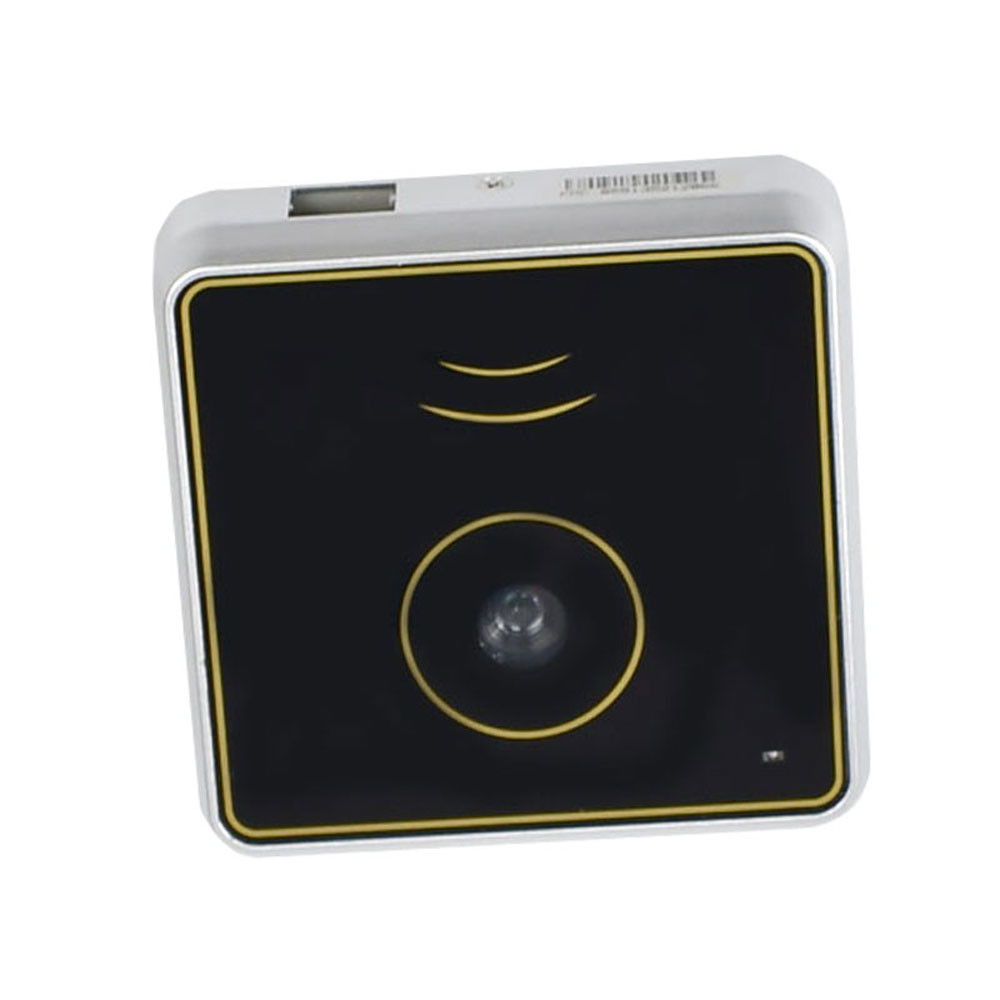

Hotel Home Wiegand Barcode Door Access System QR Reader Scanner 3
