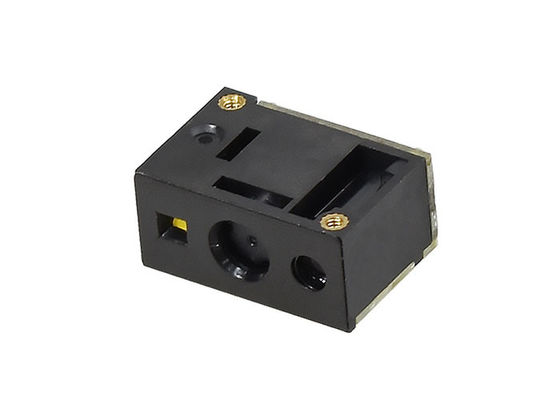

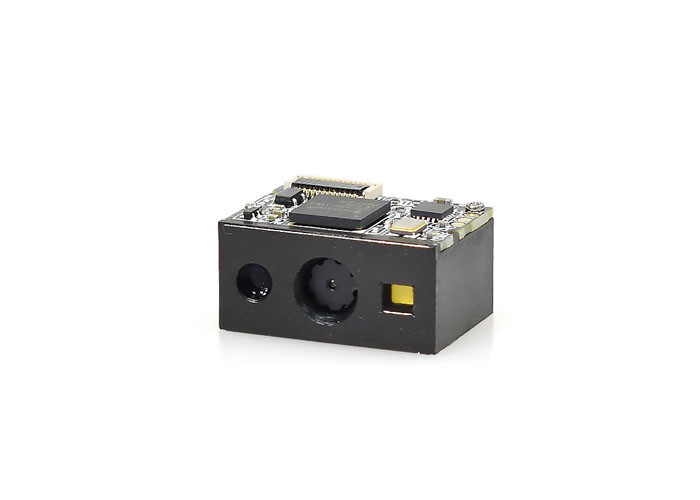

Multiple Interfaces LV3085 2D Barcode Scanner Module Compact Lightweight Design

Multiple Interfaces LV3085 2D Barcode Scanner Module Compact Lightweight Design

    • Multiple Interfaces LV3085 2D Barcode Scanner Module Compact Lightweight Design
    • Multiple Interfaces LV3085 2D Barcode Scanner Module Compact Lightweight Design
    • Multiple Interfaces LV3085 2D Barcode Scanner Module Compact Lightweight Design
    • Multiple Interfaces LV3085 2D Barcode Scanner Module Compact Lightweight Design
    • Multiple Interfaces LV3085 2D Barcode Scanner Module Compact Lightweight Design
  • Multiple Interfaces LV3085 2D Barcode Scanner Module Compact Lightweight Design

    Product Details:

    Place of Origin: Shenzhen, Guangdong, China
    Brand Name: RAKINDA
    Certification: CE, RoHS
    Model Number: LV3085

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: Normal craft paper and foam
    Delivery Time: Within 5 working days after receiving the balance
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 1000 PCS/ week
    Contact Now
    Detailed Product Description
    Resolution: ≧ 5mil Scan Angle: Roll: 360°, Pitch: ±45°, Skew: ±40°
    Interface: TTL232, USB(HID Keyboard, COM Port Emulation, HID-POS) Dimensions: 21.5(w)*15.3(D)*11.8(H)mm (max)
    Weight: 3.6±0.2g Operating Temperature: -20℃ To 50℃ (-4℉ To 122℉)

    Rakinda's latest technology gives the scan engine an edge with unrivaled decoding capabilities on 1D & 2D barcodes.



    Product Features:

    1. Compact & Lightweight Design

    seamless integration of imager and board makes the scan engine extremely small and lightweight and easy to fit into miniature equipment.

    2. Multiple Interfaces

    The lv3085 supports USB and TTL232 interfaces to meet diverse customers needs.

    3. Outstanding Power Efficiency

    The advanced technology incorporated in the scan engine helps reduce its power consunption and prolong its service life.



    Application scenarios(as an accessotry)

    PDAs, tablets, thin-and-light equipment, traditional self-service devices, ect.



    Product Parameters:

    Performance
    Image sensor 640*480 CMOS
    Illumination white LED
    Aimer red LED (650nm ±10nm)TOF
    Symbologies 2D PDF417, QR code (QR1/2, Micro), data matrix (ECC200, ECC000, 050, 080, 100, 140), Chinese sensbile code
      1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITE-6, ITF-14, ISBN, Code93, UCC/EAN-128, GS1 databar, Matrix 2 of 5, code 11, industrial 2 of 5, sandard 2 of 5, plessey, MSI-plessey, etc.
    Resolution ≧ 5mil
    Typical depth of field EAN-13 60nm - 230nm (13mil)
    Code 39 55nm - 125nm (5mil)
    QR code 40nm - 120nm (15mil)
    Min symbol contrast 25%
    Scan angle Roll: 360°, pitch: ±45°, skew: ±40°
    Field of view Horizontal 45.6°, vertical 34.2°
    Mechanical/Electrical
    Interface TTL232, USB(HID keyboard, COM port Emulation, HID-POS)
    Operation voltage 3.3VDC±5%
    Rated power consumption 480mW
    Current@3.3VDC Operating 145±15mA
    Standby <11mA
    Sleep <200uA
    Dimensions 21.5(w)*15.3(D)*11.8(H)mm (max)
    Weight 3.6±0.2g
    Environmental
    Operating temperature -20℃ to 50℃ (-4℉ to 122℉)
    Storage temperature -40℃ to 70℃ (-40℉ to 158℉)
    Humidity 5% to 95% (non-condensing)
    Ambient light 0 ~100000lux (natural light)
    Certifications FCC part15 class B, CE EMC class B
    Accessories
    LV-EVK software development board for the LV3085, equipped with a trigger button, beeper and RS-232 & USB interface
    Cable USB used to connect the LV-EVK to a host device
    RS-232 used to connect the LV-EVK to a host device
    Power adapter DC5V power adapter to power the LV-EVK with RS-232 cable





    LV3085 2D Barcode Scanner ModuleLV3085 2D Barcode Scanner ModuleLV3085 2D Barcode Scanner ModuleLV3085 2D Barcode Scanner ModuleLV3085 2D Barcode Scanner Module
