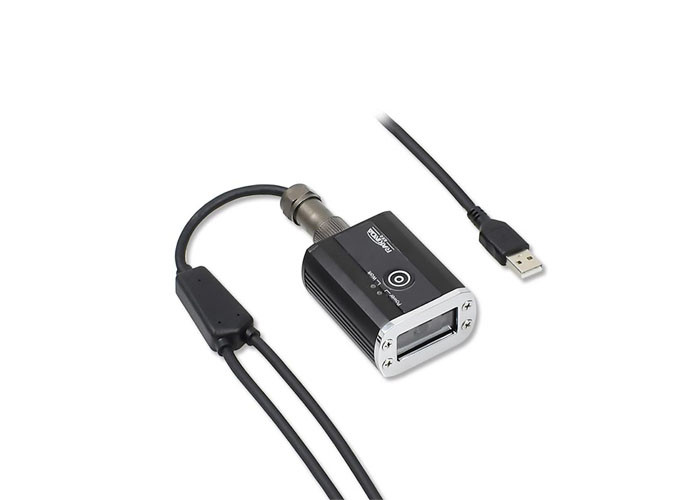

LV3000U PLUS Industrial Barcode Scanner Module , Qr Code Barcode Scanner IP68

LV3000U PLUS Industrial Barcode Scanner Module , Qr Code Barcode Scanner IP68

    • LV3000U PLUS Industrial Barcode Scanner Module , Qr Code Barcode Scanner IP68
    • LV3000U PLUS Industrial Barcode Scanner Module , Qr Code Barcode Scanner IP68
    • LV3000U PLUS Industrial Barcode Scanner Module , Qr Code Barcode Scanner IP68
    • LV3000U PLUS Industrial Barcode Scanner Module , Qr Code Barcode Scanner IP68
    • LV3000U PLUS Industrial Barcode Scanner Module , Qr Code Barcode Scanner IP68
  • LV3000U PLUS Industrial Barcode Scanner Module , Qr Code Barcode Scanner IP68

    Product Details:

    Place of Origin: Shenzhen, Guangdong, China
    Brand Name: RAKINDA
    Certification: CE, RoHS
    Model Number: LV3000U PLUS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: Normal craft paper and foam
    Delivery Time: within 5 working days after receiving the balance
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 1000 PCS/ week
    Contact Now
    Detailed Product Description
    Resolution: >=3 Mil Scan Angle: Roll:360d, Pitch:±55°, Skew:±55°
    Interface: RS-232, USB Dimensions: 63(W)*45(D)*28(H)
    Weigh: 75g Operating Temperature: -20℃ To 60℃(-4℉ To140℉)

    Product Features:

    1. IR/Light Triggers
    The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan barcodes as they are presented, to achieve higher throughput and productivity.

    2. Automatic Exposure Control (AEC)
    The sensors in the LV3000UPLUS automatically adjust the brightness of supplementary lighting based on the light reflected off barcode.

    3. IP68-sealed Housing
    The LV3000U PLUS is environmentally sealed to an IP68 rating to prevent dust, moisture and other contaminant from entering it.

    4. Unmatched Reading Performance
    The LV3000U PLUS is capable of reading 1D as well as high-volume 2D barcodes on the screencovered with protective film.

    5. Highly Visible Laser Aimer
    The LV3000U PLUS provides a laser-generated crosshair aiming pattern that is clear and bright even in bright sunlight, ensuring first time accurate aim.

    6. 1.5m Drop Resistance
    The scanner withstands multiple 1.5m drops toconcrete (for six sides, three drops per side).



    Product Parameters:

    Performance Image Sensor 1280*800 CMOS
    Illumination Aiming White LED laser diode or gree LED
    Symbologies 2D PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One, ect.
    1D EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc.
    Resolution >=3 mil
    Typical Depth of Foeld EAN-13 55-360mm(13mil)
    Code 39 70-180mm(5mil)
    PDF417 55-160mm(6.7mil)
    Data Matrix 50-170mm(10mil)
    QR Code 40-210mm(15mil)
    Scan Mode Sense mode, Continuous mode, Level mode, Pulse mode
    Scan Angle Roll:360d, Pitch:±55°, Skew:±55°
    Field of View Horizontal 51°, Vertical 32°
    Min Symbol Contrast 25%
    Mechanical Electric Interface RS-232, USB
    Dimensions 63(W)*45(D)*28(H)
    Weigh 75g
    Notification Beep, LED indicator
    Rated Power Consumption 1622mW(typical)
    Operating Voltage 5VDC±-5%
    Current SVDC Operating 276.8mA(typical), 322.7mA(max.)
    Standby 83.3mA
    Environmental Operating Temperature -20℃ to 60℃(-4℉ to140℉)
    Storage Temperature -40℃ to 70℃ (-40℉ to 158℉)
    Humidity 5% to 95% (non-condensing)
    ESD ± 14kV (air discharge), ±8kV (direct discharge)
    Drop 1.5m
    Sealing IP68
    Certifications FCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC
    Environmental Cable USB Used to connect the LV3000U to a host device
    RS-232 Used to connect the LV3000U to a host device
    Power Adapter DC5V adapter to power the LV3000U with RS-232 cable





    LV3000U PLUS Industrial Barcode Scanner Module

    LV3000U PLUS Industrial Barcode Scanner Module

    LV3000U PLUS Industrial Barcode Scanner Module

    LV3000U PLUS Industrial Barcode Scanner Module



    Application Fields:

    Self-service Kiosk Terminal, Payment machine, Smart Locker, Vending Machine, O2O applications, etc.
