Place of Origin: | Shenzhen, Guangdong, China |
---|---|
Brand Name: | RAKINDA |
Certification: | CE ROHS FCC |
Model Number: | RD008 |
Minimum Order Quantity: | 1 pcs |
Price: | Negotiation |
Packaging Details: | Normal craft paper and foam. |
Delivery Time: | within 5 working days after receiving the balance |
Payment Terms: | Credit card, T/T, paypal |
Supply Ability: | 2000 PCS/ month |
Image Sensor: | 752*480 | Protocol: | TCP/HTTP |
---|---|---|---|
Light Soure: | White LED | Symbologies: | 1D/2D/PDF417/QR/Data Matrix |
Card Type: | MIFARE ISO1443A Or ISO1443B | Interface: | RJ45;Wiegand26/34 |
Optional Functions: | Wifi/Bluetooth/POE | Application: | Gym Or Elevator Or Turnstile Access Control |
High Light: | ISO1443A QR Code Reader Access Control,MIFARE Reader Access Control,ISO1443B QR Code Reader Access Control |
Smart MIFARE ISO1443A QR Code Reader Access Control TCP IP Anti Crash
Smart Card Wiegend Access Control System TCP IP Door Access Control With QR

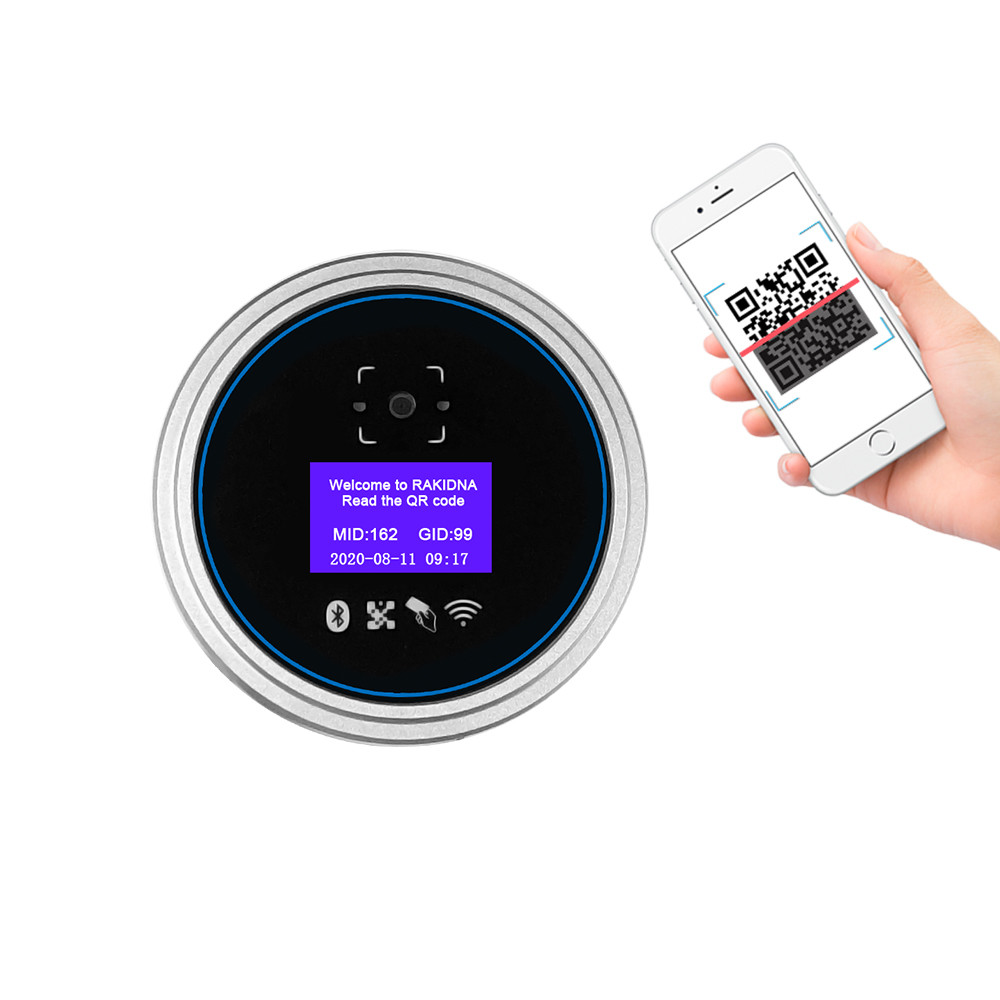

RD008 QR scanner IC card reader description:
RD008 hot access control system device, support QR and IC card reading, support Ethernet port and wiegand,
optional function is wifi. And it support TCP/HTTP, relay controller, suitable for gym, elevator or turnstile project.
Once you scan the barcode, then you can enter or pass the gate. Free SDK will be provided (RD006 and RD008 same SDK)

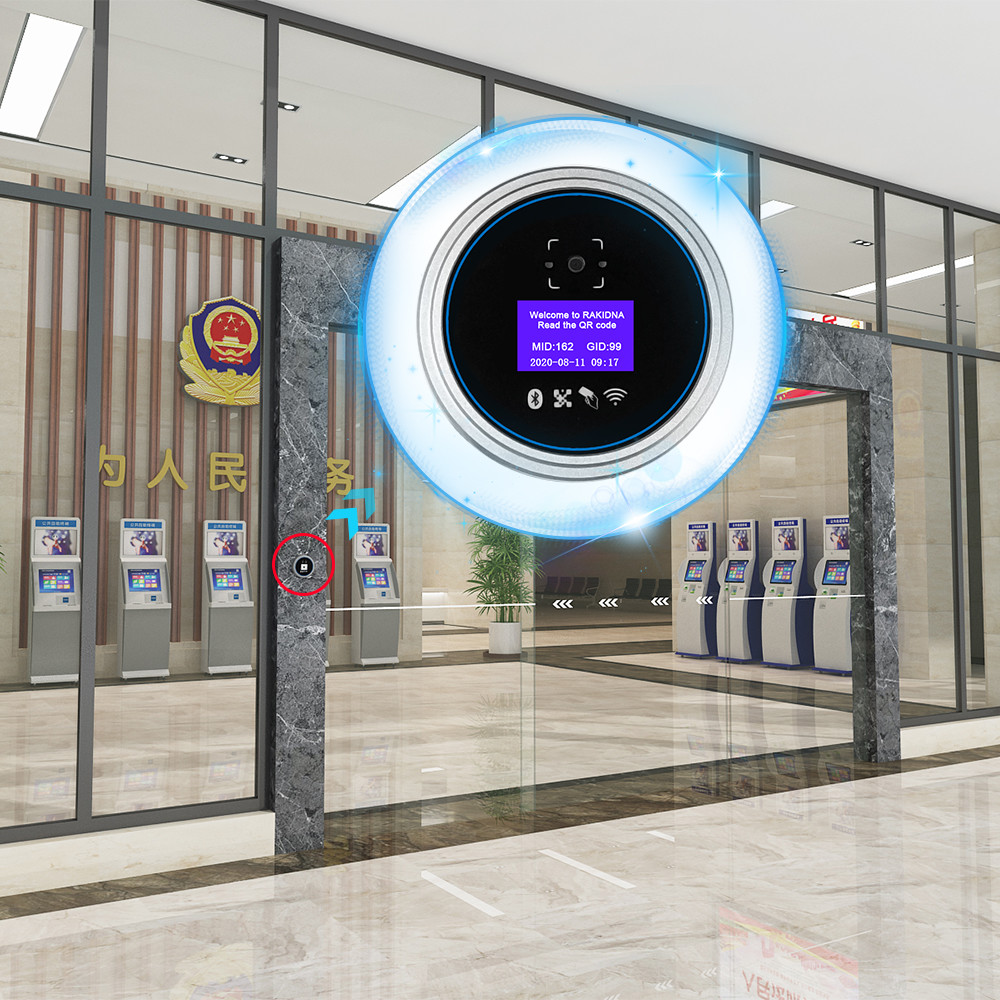

Application scenario: Gym, Elevator, Building office, turnstile access control.
RD008 Phone screen reader main features:
1: Built-in dual hardware anti-crash watchdog, even if the chip operation appear abnormalities, it can be restored in time,
which does not affect the use.
2: Supports TCP/IP remote IAP upgrade. If there is a change in requirements, it can upgraded directly through network
to be completed after the program modified.
3: Can be expanded to be installed WiFi module, it can make 2d code be transmitted to wireless network by WiF, WiFi module
supports AP and STA dual mode.
4: Can be expanded to installed Bluetooth module to let products communicate with mobile phone Bluetooth to achieve other
functions such as shake to open the door.
5: Integrated Development Package Docking DEMO Language: JAVA, C#, C++, etc.
Parameters:
RD008 Round 2D IC Card Access Control Machine | |
QR Code Scanning Component Parameters | |
Image Sensor | 752X480 |
Light Source | White LED |
Symbologies | 2D: PDF417, QR CODE, DATA MATRIX,Support Mobile Phone Mirror Recognition and Paper 2D Code Recognition |
1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc. | |
Reading Distance | 10-55mm |
Scan Angle | 360° Full Angle |
Display Components | |
Screen | 1.8 ”TFT true color screen |
Resolution | 128 * 160 |
Display Area | 28mmX35mm |
Input and Output Parameters | |
Power Input | 9-18VDC |
Working Current | < 600mA |
Can read like ISO14443Aor ISO14443B Card Serial Number | Such as Second-generation ID card, FM1208 CPU Card, M1 Card (Mifare S50, Mifare S70 IC card), SRIX4K, etc. |
Barcode or 2D Code Input | Wiegand 26/34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules |
Communication Interface | RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth |
Communication Protocol | Support TCP / UDP / HTTP |
Voice output | comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice |
Device Input | 12V DC power input, 1 door magnetic input, 1 door button input, 1 alarm input |
Equipment output | 1 channel 3A relay output, 1 channel unlock, 1 channel expansion can control door opener, light, water valve, etc. |
Wiegand output | Wiegand 26/34 output |
Dimensions | |

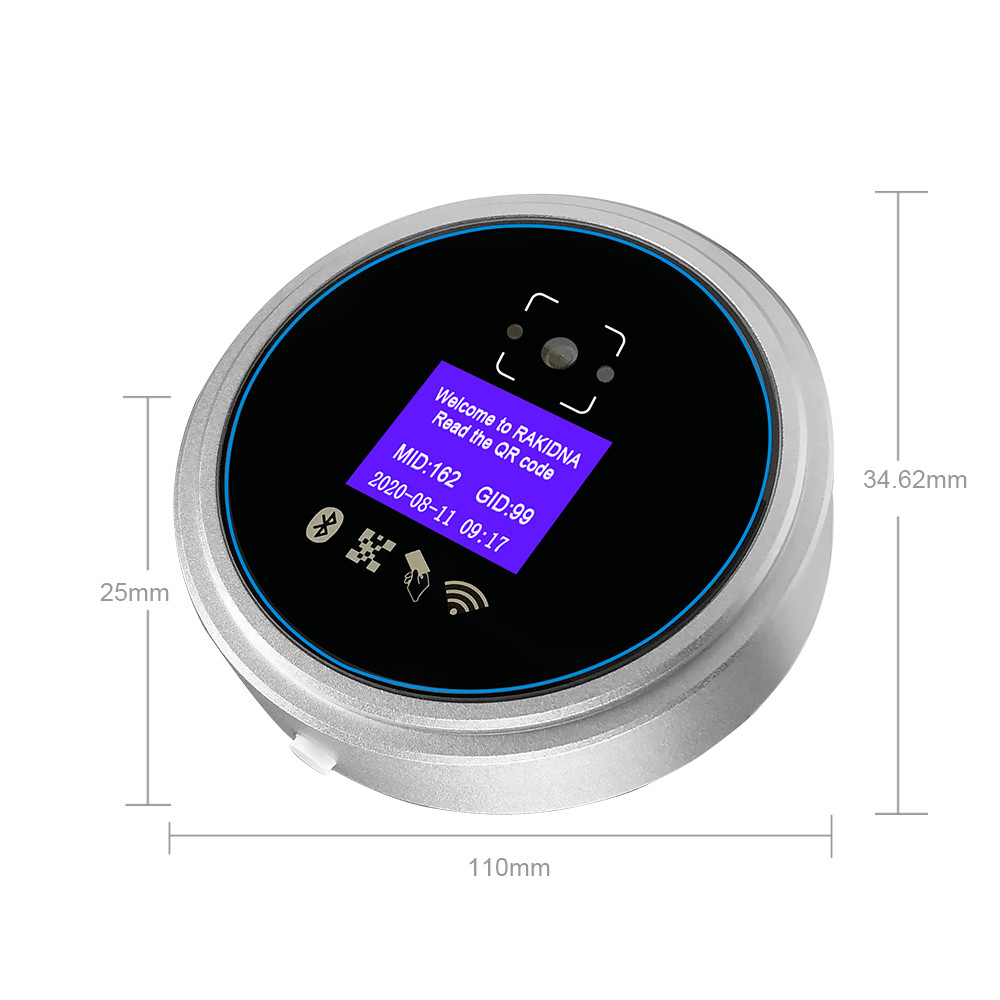

Installation size | 110mm * 25-34.62mm (L*H), Compatible with standard 86 box |
Company Advantages:
Our company is specialized in barcode scanner for 20 years since 2000, we have professional research
developement team, has our own factory, support OEM design. We have many customers from different
countries already. And we are Gold supplier in the Alibaba. Our product is certificated by CE,ROHS and FCC.
FAQ:
Q1: Can I get some samples? Are they free?
A1: We support 1-2pcs sample order. Samples should be paid.
Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us directly
according to the contact info. We will send you proper link directly.
Q3: What is your payment method?
A3: We accept Alibaba online orders by Credit card, PayPal ,T /T
Q4: How long is your warranty time?
A4: Our officially promised warranty time is 1 year after delivery.
Q5: Where can we download the user manual of the scanners?
A5: We will send by email after you get samples.
Q6: What's the lead time?
A6: For sample, it is typically within 5-7days by DHL. For bulk order, it depends on quantity and model you order.
Q7: Can you provide OEM service?
A7: Yes. We need further discuss about details.
Q8: If I come across any problem during product using, where I can get the support ?
A8: We support you technically 24h/7.please send all your questions to us. and we will give the professional,patient,
expliantion by email or call in time.
Q9: How do you ship the scanners usually?
A9: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail. We also can ship the goods by your shipping account or other express agent you provided.
Sincerely, wish we have the honour and chance to serve for you. I promise you will be satisfied with our products and services.
If there is anything we can do for you please feel free to let us know and contact us.
Thanks for your time and wish you have a nice day.
Best Regards
RAKINDA
