Stationary Wiegand Fixed 2D Barcode Scanner Module Industrial Wall Ccd Arduino

Basic Information
Place of Origin: Guangdong,China
Brand Name: RAKINDA
Certification: CE FCC ROHS
Model Number: LV3000U Plus
Minimum Order Quantity: 1 pieces
Price: Negotiation
Packaging Details: Single package size: 10X10X10 cm
Delivery Time: 1-5 Working days
Payment Terms: Western Union, T/T, paypal
Supply Ability: 5000pieces per month
Scan Element Type: CMOS Colour Depth: 32 Bit
Interface Type: USB, RS232 Max Paper Size: A4 Size
Optical Resolution: 960*640 Dimensions(mm): 63(W)*45(D)*28(H)
Light Source: LED 400nm To 750nm IP Rating: IP68
High Light:

2d barcode module


oem 2d barcode scanner module

Stationary Wiegand Fixed Industrial Wall Ccd Arduino 1d 2d Usb Barcode Scanner



Many of the processes that used to require indoor space, such as ticketing, payment and registration, can now be done outdoors. The outdoor ticket self-service Kiosk is designed to be completely durable in outdoor conditions. All kiosks must pass performance and durability tests to ensure they are completely waterproof, shockproof and heat-resistant. Its flexible structure allows the deployment of optional features such as impact sensors, barcode readers, contactless credit card readers, security cameras, and more. Among them, for the choice of barcode reader, RAKINDA Internet of things technology development co., ltd. can give customers a good answer.


What is a good barcode reader to recommend for the outdoor self-service Kiosk?


With RD4600 scanner, customers needn't worry about these two factors.

RD4600 is a good barcode scanner module to be used in auto distribution machine due to the reasons below:


1. RD4600 is a scanner with housing. It has USB or RS232 output cable for customers to choose. In this way, it is easy to be integrated in any access control system. We will provide user manual. Customers can set the scanner function by scanning the setting manual or by serial command according to the user manual. It is easy to operate.


2. Excellent scanning performance for mobile phone screen code;

It uses the same good scanning element as previous model RD4600, which guarantees its good performance in scanning screen code. But with new structure design, its cost is greatly reduced, which helps to reduce customers' cost to make new scanning products;



3. Application:

Auto vending kiosk, turnstile, access control system, ATM kiosk etc.

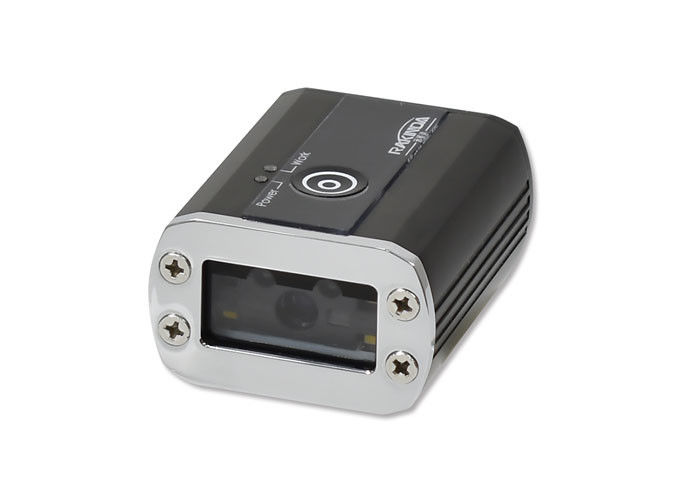

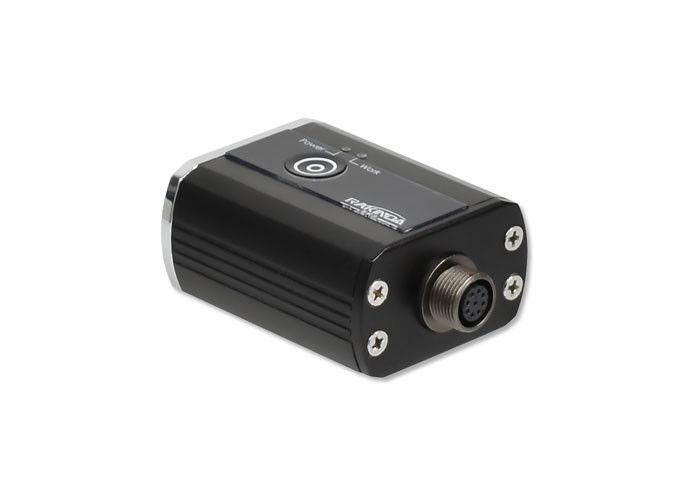

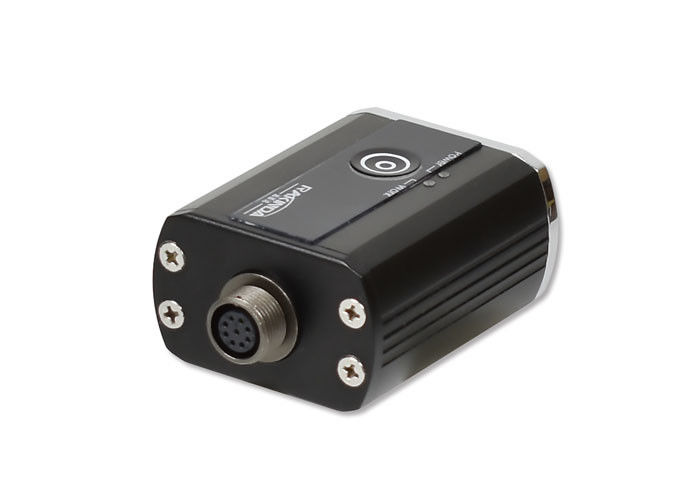

Stationary Wiegand Fixed 2D Barcode Scanner Module Industrial Wall Ccd Arduino 0

RD4600 2D Barcode Scanner Module

Processor IOTC 0370 Chip
Communication Protocol USB or Serial
Image Sensor CMOS
Symbologies 1D and 2D codes
Scan Mode Sense Mode
Illumination White LED
Power Consumption 1.75 W (max)
Notification Beep
Color Black
Glass Cover No



























Barcode Scanner Parameters:

Performance Image Sensor 1280*800 CMOS
Illumination Aiming White LED laser diode or gree LED
Symbologies 2D PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One, ect.
1D EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc.
Resolution >=3 mil
Typical Depth of Foeld EAN-13 55-360mm(13mil)
Code 39 70-180mm(5mil)
PDF417 55-160mm(6.7mil)
Data Matrix 50-170mm(10mil)
QR Code 40-210mm(15mil)
Scan Mode Sense mode, Continuous mode, Level mode, Pulse mode
Scan Angle Roll:360d, Pitch:±55°, Skew:±55°
Field of View Horizontal 51°, Vertical 32°
Min Symbol Contrast 25%
Mechanical Electric Interface RS-232, USB
Dimensions 63(W)*45(D)*28(H)
Weigh 75g
Notification Beep, LED indicator
Rated Power Consumption 1622mW(typical)
Operating Voltage 5VDC±-5%
Current SVDC Operating 276.8mA(typical), 322.7mA(max.)
Standby 83.3mA
Environmental Operating Temperature -20℃ to 60℃(-4 to140)
Storage Temperature -40 to 70 (-40 to 158)
Humidity 5% to 95% (non-condensing)
ESD ± 14kV (air discharge), ±8kV (direct discharge)
Drop 1.5m
Sealing IP68
Certifications FCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC
Environmental Cable USB Used to connect the LV3000U to a host device.
RS-232 Used to connect the LV3000U to a host device.
Power Adapter DC5V adapter to power the LV3000U with RS-232 cable

Q1: Can I get some samples? Are they free?
A1: We support 1pc sample order. Samples should be paid.

Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start an online order directly. Or pls contact us first according to the contact info. We will send you the proper link directly.

Q3: What is your payment method?
A3: We accept Alibaba online orders, PayPal, T /T, LC, Western Union, MoneyGram.

Q4: How long is your warranty time?
A4: We officially promised warranty time is two years after delivery.

Q5: Where can we download the user manual of the scanners?
A5: We will send by email after you get samples.

Q6: What's the lead time?
A6: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.

Q7: Can you provide OEM service?
A7: Yes. We need further discuss details.

Q8: If I come across any problem during product use, where I can get the support?
A8: We support you technically 24h/7.please send all your questions to us. and we will give the professional, patient,explanation by email or call in time.

Q9: How do you ship the scanners usually?
A9: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail. We also can ship the goods by your shipping account or other express agent you provided.
